Top » Piese de schimb » PIESE METABO » 0021162000 10

WIG 200 DCi - 0021162000 10 - EU 230V
[0021162000 10]
WIG 200 DCi - 0021162000 10 - EU 230V
Click pentru a mari
Imagini suplimentare
WIG 200 DCi - 0021162000 10 - EU 230V
Click pentru a mari
WIG 200 DCi - 0021162000 10 - EU 230V
Click pentru a mari

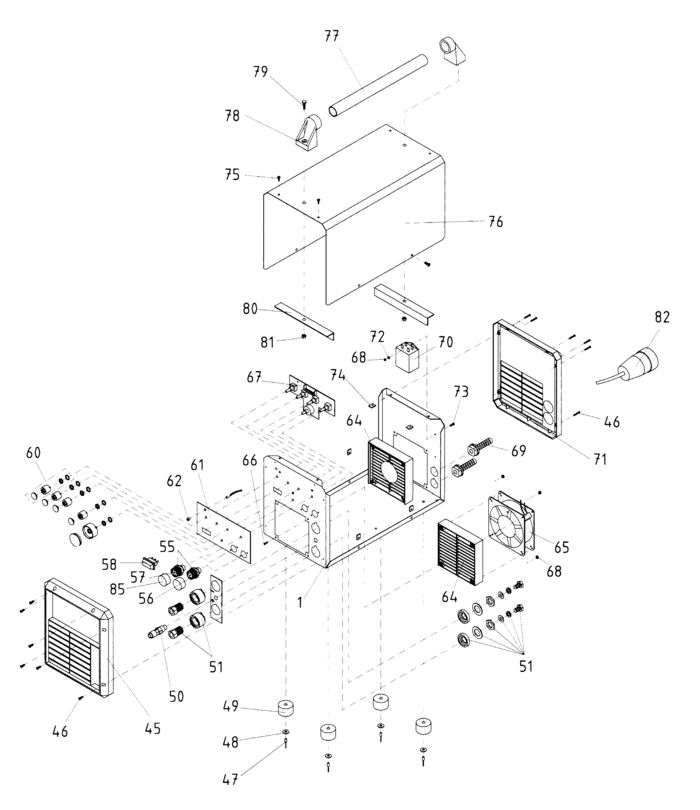

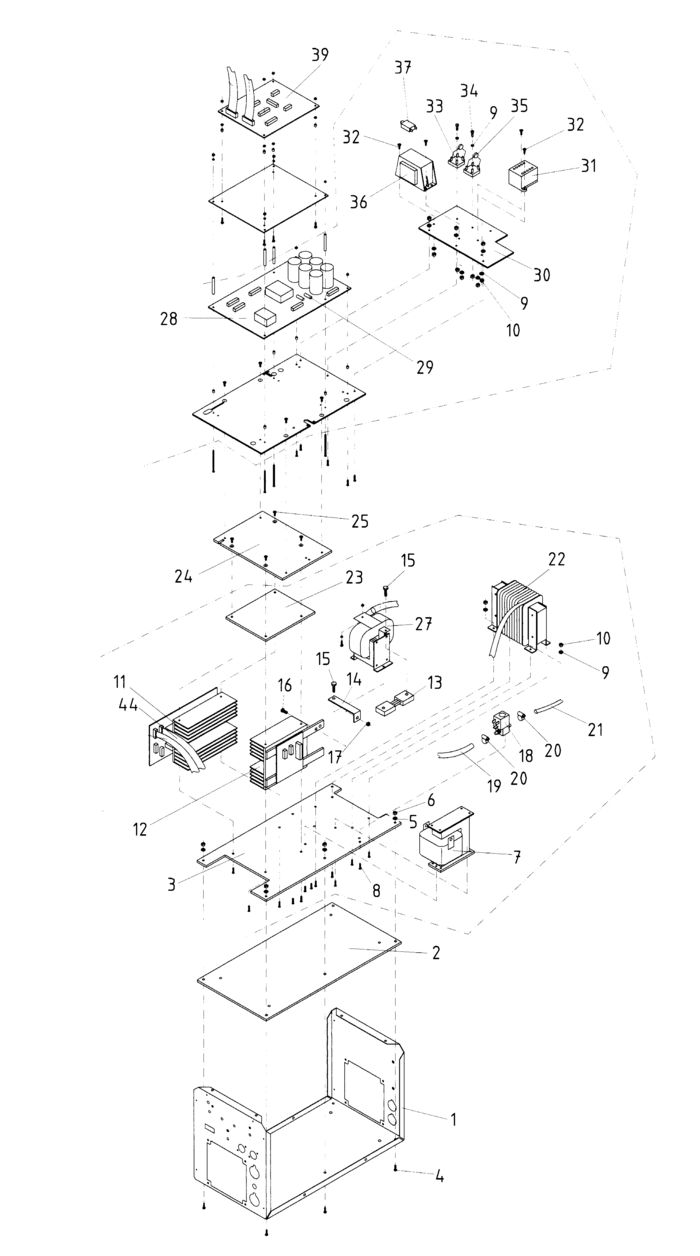

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 1321174279 - Indisponibil
3 1 1 1321174260 - Indisponibil
4 1 1 HEXAGON HEAD SCREW M 5X16 VERZ. (86103016850) 446 RON
5 1 1 SERRATED LOCK WASHER (86304084039) 446 RON
6 1 1 HEXAGON NUT (86200002200) 446 RON
7 1 1 8056174215 - Indisponibil
8 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X10 VE (86131001540) 446 RON
9 1 1 Serrated lock washer (86304084020) 446 RON
10 1 1 HEXAGON NUT (86200002197) 446 RON
11 1 1 POWER BRIDGE 200 DCI (88106174246) 442359 RON
12 1 1 RECTIFIER BRIDGE (88053174222) 245282 RON
13 1 1 SHUNT RESISTOR ?? OHM (88051174233) 3698 RON
14 1 1 1328174258 - Indisponibil
15 1 1 HEXAGON HEAD SCREW M 8X12 VERZ. (86103001160) 446 RON
16 1 1 Hex head screw (86103001127) 446 RON
17 1 1 Hex nut (86200002219) 446 RON
18 1 1 SOLENOID VALVE M. ZWISCHENPL. /ET (81002185713) 21361 RON
19 1 1 7850012088 - Indisponibil
20 1 1 HOSE CLAMP RD 8-12 MIT 6KT-SCHRAUBE (87811027736) 73930 RON
21 1 1 7850012088 - Indisponibil
23 1 1 1321174317 - Indisponibil
24 1 1 1321174325 - Indisponibil
25 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X16 VE (86131178687) 446 RON
27 1 1 HF CHOKE (81327174190) 14839 RON
28 1 1 PCB HIGH FREQUENCY 200 DCI ET (88106174351) 343820 RON
29 1 1 FINE-WIRE FUSE 5X20 / 2 A (88260106814) 105 RON
30 1 1 1002614479 - Indisponibil
31 1 1 CONTACTOR 230 V 40-60 HZ B 6-30-10 (88104073825) 24046 RON
32 1 1 Fillister head screw (86123002022) 446 RON
33 1 1 RECTIFIER GB PC2508 (88053174435) 11519 RON
34 1 1 RAISED CHEESE HEAD SCREW M 4X16 VERZ. (86123025200) 446 RON
35 1 1 VARISTOR 385V-594 PH (88051178425) 190 RON
36 1 1 AUTOTRANSFORMER SPAR (88056174410) 33553 RON
37 1 1 MOTOR PROTECTION RELAY 1,5 A ETA 106-P10 (88100004900) 13756 RON
39 1 1 PCB INVERTER 200 DCI (88106174360) 245282 RON
45 1 1 CARRIER FRAME, FRONT 33X242X284 (81321411181) 7157 RON
47 1 1 BLIND RIVET, MUSHROOM HEAD 6X25 F FLACHR (86621010440) 446 RON
48 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
49 1 1 RUBBER DOOR STOP RD 40X25 MIT H?LSE (87056016427) 1564 RON
50 1 1 QUICK COUPLING 2-TEILIG M.MUTTER U.SCHLA (87710004883) 10288 RON
51 1 1 PANEL SOCKET ASSEMBLY 50 MM2 MIT ISOLIER (88215071317) 5926 RON
55 1 1 SOCKET M.FLANSCH M 13 (88215115624) 15993 RON
56 1 1 CONTACT CARRIER M1E - 6S (88216115717) 2459 RON
57 1 1 CONTACT CARRIER M1E - 4S (88216115709) 3018 RON
58 1 1 8111123269 - Indisponibil
60 1 1 SETTING KNOB, POTENTIOMETER RD 20 MIT MA (88190112323) 3018 RON
62 1 1 8213174640 - Indisponibil
64 1 1 VENT SCREEN 30X140X138 (81321410827) 4249 RON
65 1 1 TURBO FAN 1X230V 50HZ /26W (88041174340) 127394 RON
67 1 1 PRINTED CIRCUIT BOARD 200 DCI (88106174297) 83437 RON
68 1 1 HEXAGON NUT M 3 VERZ. (86200109773) 446 RON
69 1 1 STRAIN RELIEF Z 12,5 F.WANDST?RKE 0,8-1, (88240163439) 1340 RON
70 1 1 MAINS FILTER (88108174308) 108379 RON
71 1 1 CARRIER FRAME, REAR 33X242X284 (81321411220) 8275 RON
72 1 1 6304124464 - Indisponibil
73 1 1 CROSS RECESSED FLAT HEAD SCREW M 3X12 VE (86131160850) 446 RON
75 1 1 86172015687 - Indisponibil
77 1 1 1328411438 - Indisponibil
78 1 1 1321115663 - Indisponibil
79 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
80 1 1 1328411454 - Indisponibil
81 1 1 Flange nut (6209110995) 446 RON
85 1 1 CAP "R 3/4""" GPN 800 (88243141436) 105 RON
7020 1 1 RESISTOR 330 OHM 11Watt ET (88051655878) 4249 RON
7090 1 1 8102655940 - Indisponibil
7250 1 1 PRINTED CIRCUIT BOARD TYP:PCBDIO1 ET (88106656100) 73930 RON
7260 1 1 PRINTED CIRCUIT BOARD TYP:?BERTRAGER DCi (88106656119) 295725 RON
