Top » Piese de schimb » PIESE METABO » 01427390

WEP 14-125 Quick - 01427390 - GB 110V
[01427390]

WEP 14-125 Quick - 01427390 - GB 110V
Click pentru a mari
Imagini suplimentare
WEP 14-125 Quick - 01427390 - GB 110V
Click pentru a mari

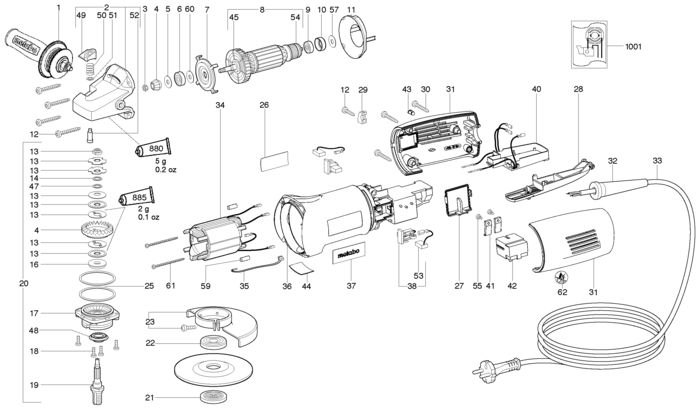

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)
Cumpara
1 1 1 Anti-vibration handle,M 8 (314000970) Indisponibil Indisponibil
2 1 1 Gear housing cpl. (316029180) 19236 RON
3 1 1 Hexagon nut w.recess (341100940) 781 RON
4 1 1 Bevel gear (316029470) 11519 RON
5 1 1 Washer (339006810) 446 RON
6 1 1 Ball bearing,8x22x7 (143115180) 2124 RON
7 1 1 Cover (343373670) Indisponibil Indisponibil
8 1 1 Armature 120 V (310007820) 64311 RON
9 1 1 Ball bearing,6x19x6 cod vechi 143115170 (143115690 ) 190 RON
10 1 1 Rubber bushing (344095260) 781 RON
11 1 1 Baffle (339150890) 781 RON
12 1 5 Self-tap. fill. h. screw (141116020) 781 RON
13 1 1 Friction washer cpl. (316029480) Indisponibil Indisponibil
14 1 1 Washer 10,2 X 14,8X 0,1 (141152300) 781 RON
16 1 1 Intermediate piece (341051480) 105 RON
17 1 1 Flange complete (343377210) Indisponibil Indisponibil
18 1 4 Fillister head screw (141119860) 781 RON
19 1 1 Spindle shaft (341161030) 955 RON
20 1 1 Intermediate gear (316039280) 2848 RON
21 1 1 Clamping nut compl.,M14 (316023660) 7157 RON
22 1 1 Clamping flange (341031160) 488 RON
23 1 1 Wheel guard cpl. (316035710) 8275 RON
25 1 2 Compensating Washer (339060160) 781 RON
26 1 1 Rating plate (338048320) 446 RON
27 1 1 Switch housing cover (343392590) 446 RON
28 1 1 Switch lever cpl. (316040960) 4249 RON
29 1 1 Cable clip (343362490) 781 RON
30 1 3 Self-tap. fill. h. screw (141116990) 781 RON
31 1 1 2 part motor cap (343392540) 7157 RON
32 1 1 Cable sleeve (344100970) 781 RON
33 1 1 Cable w. UK plug 110 V (344493730) 10288 RON
34 1 1 Field coil assembly w.field coil,120V (311010820) 30980 RON
35 1 1 Temperature sensor (343077490) 4249 RON
36 1 1 Motor housing (315013190) 7157 RON
37 1 1 M-Label,08 52x22 (338122160) 446 RON
38 1 2 Brush holder cpl.,120V (316028700) 7157 RON
40 1 1 Electronic unit 120V (343080810) 24046 RON
41 1 2 Flat plug (339080310) 446 RON
42 1 1 Switch (343406740) 8275 RON
43 1 1 Light transmission (343077280) 446 RON
44 1 1 399999990 - Indisponibil
45 1 1 Fan w. prot. Grid (316031210) Indisponibil Indisponibil
47 1 1 Washer (141155560) 446 RON
48 1 1 Sealing washer (343375540) 446 RON
49 1 1 Push button, red (343394190) 669 RON
50 1 1 Pressure spring (342001550) Indisponibil Indisponibil
51 1 1 Sealing washer (339006520) Indisponibil Indisponibil
52 1 1 Bolt (341513790) 1564 RON
53 1 1 Set carbon brush (316034930) 5479 RON
54 1 1 Tacho disc (343391120) 1564 RON
55 1 2 Fillister head screw (141115780) 446 RON
57 1 1 Washer (141153340) 446 RON
59 1 2 Shrink hose (344096920) 446 RON
60 1 1 Washer (339132280) 446 RON
61 1 2 399999990 - Indisponibil
62 1 1 Indication label (338121050) 669 RON
880 1 1 Special grease 100Gr 3,6oz (344130840) Indisponibil Indisponibil
885 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
1001 1 1 338504630 - Indisponibil
