Top » Piese de schimb » PIESE METABO » 00512310

WBE 700 - 00512310 - CN 220V
[00512310]
WBE 700 - 00512310 - CN 220V
Click pentru a mari
Imagini suplimentare
WBE 700 - 00512310 - CN 220V
Click pentru a mari

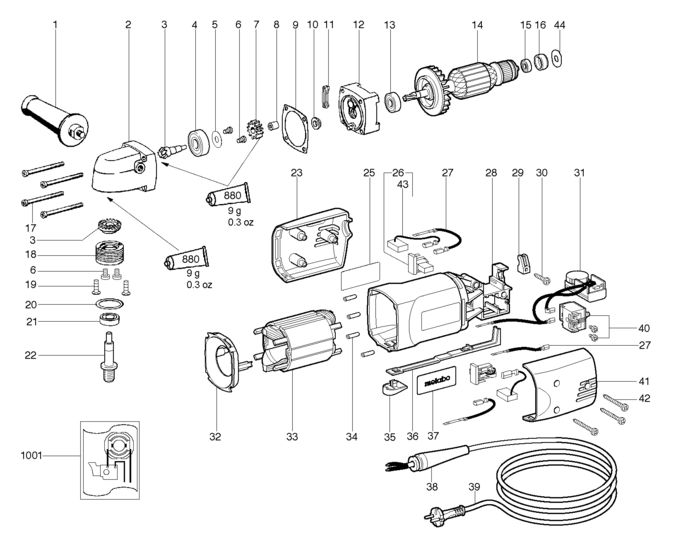

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Handle cpl. (314000540) 488 RON
2 1 1 Gear housing cpl. (316007740) 54357 RON
3 1 1 Bevel gear (316008120) 4442 RON
4 1 1 Ball bearing, 10x30x9 (143111090) 5926 RON
5 1 1 Washer (141151050) 446 RON
6 1 4 Fillister head screw (141120190) 446 RON
7 1 1 Spur gear (340011030) 7157 RON
8 1 1 Needle sleeve (143111430) Indisponibil Indisponibil
9 1 1 Gasket (339010760) 781 RON
10 1 1 Sealing ring (343378120) 2459 RON
11 1 1 Covering strip (343353340) 781 RON
12 1 1 Flange complete (316007730) 26730 RON
13 1 1 Ball bearing, 8x22x7 (143114880) Indisponibil Indisponibil
14 1 1 Armature cpl. 230 V (310008220) 54357 RON
15 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
16 1 1 Rubber bushing (344095260) 781 RON
17 1 4 Self-tap. fill. h. screw (141121680) 446 RON
18 1 1 Bearing flange (341031750) 13756 RON
19 1 2 Countersunk screw (141122720) 446 RON
20 1 1 O-ring (143191930) 781 RON
21 1 1 Ball bearing, 10x26x8 (143111120) 7157 RON
22 1 1 Spindle (341603760) 15993 RON
23 1 1 Housing with cover (343374410) 2124 RON
25 1 1 Rating plate (338048550) 446 RON
26 1 2 316028520 - Indisponibil
27 1 3 Cable strand (344493960) 781 RON
28 1 1 Motor housing (315012680) 488 RON
29 1 1 Cable clip (343362490) 781 RON
30 1 1 Self-tap. fill. h. screw (141116020) 781 RON
31 1 1 electronic unit 230 V (343079700) 15993 RON
32 1 1 Baffle (339150930) 781 RON
33 1 1 Field coil 230V (311009960) 8275 RON
34 1 4 Cylinder sleeve (142160280) 446 RON
35 1 1 Switch slide (343394180) 669 RON
36 1 1 Switch rod (343373640) 781 RON
37 1 1 M-Label,08 52x22 (338122160) 446 RON
38 1 1 Cable sleeve (344101140) 105 RON
39 1 1 Cable Chinese (344493620) 5926 RON
40 1 1 Switch (343406730) 7157 RON
41 1 1 Housing with cover (343374430) 2124 RON
42 1 3 Self-tap. fill. h. screw (141116990) 781 RON
43 1 1 Carbon brush (316035510) 5479 RON
44 1 1 Washer (141153340) 446 RON
880 1 1 Grease 50 G (344130960) 488 RON
1001 1 1 338502380 - Indisponibil
