Top » Piese de schimb » PIESE METABO » 00363180

UHE 28 Plus - 00363180 - CH 230V
[00363180]
UHE 28 Plus - 00363180 - CH 230V
Click pentru a mari
Imagini suplimentare
UHE 28 Plus - 00363180 - CH 230V
Click pentru a mari

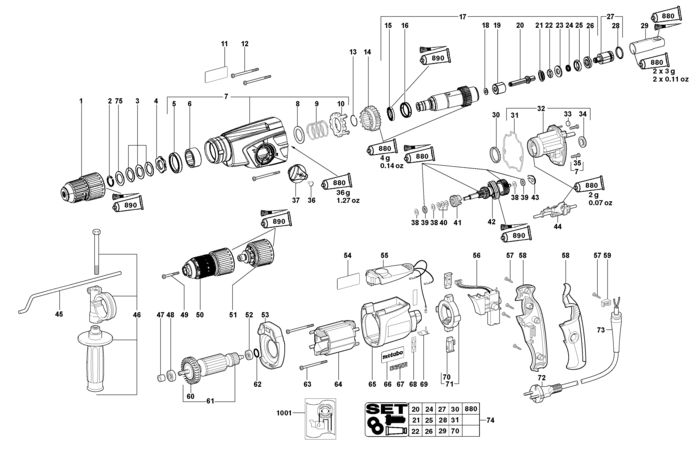

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Adaptor SDS -PLUS (316042850) 2848 RON
2 1 1 Circlip (141156380) 446 RON
3 1 3 Cup spring (342070590) 446 RON
4 1 1 Ratched wheel (341070620) 1340 RON
5 1 1 Shaft sealing ring (143195160) 3689 RON
6 1 1 Needle sleeve,30x37x16 (143115090) 3018 RON
7 1 1 Gear housing compl. (316042860) 39481 RON
8 1 1 Washer (339007150) 781 RON
9 1 1 Pressure spring,34,7x38,3x1,8x27,7 (342003490) 446 RON
10 1 1 Retaining ring (343394470) 105 RON
11 1 1 Indication label (338121400) 446 RON
12 1 3 Self-tap. fill. h. screw (141122490) 781 RON
13 1 1 Circlip (141156360) 446 RON
14 1 1 Sliding block (316042770) 3018 RON
15 1 1 Ratched wheel (341070610) 105 RON
16 1 1 Ring (343395250) 446 RON
17 1 1 Drill driving sleeve compl. (316043310) 54357 RON
18 1 1 Shaft sealing ring (143195200) 105 RON
19 1 1 Bushing (341005810) 5479 RON
20 1 1 Piston (341059030) 488 RON
21 1 1 Support ring (341012980) 1564 RON
22 1 1 O-ring (143195150) 781 RON
23 1 1 Washer (339007190) 446 RON
24 1 1 O-ring (143195210) 446 RON
25 1 1 Catching sleeve (341058950) 1564 RON
26 1 1 Circlip (141181840) 446 RON
27 1 1 Striker compl. (316043350) 955 RON
28 1 1 Sealing ring (344093140) Indisponibil Indisponibil
29 1 1 exciter sleeve compl. (341058680) 955 RON
30 1 1 Ball holder (320050480) Indisponibil Indisponibil
31 1 1 Seal (344095570) 781 RON
32 1 1 Gear flange cpl. (316030540) 19236 RON
33 1 1 Felt seal (344070670) 446 RON
34 1 1 Rubber buffer (344095920) 446 RON
35 1 2 Fill. head screw(DIN 7985) (141119440) 446 RON
36 1 1 Seal (343376750) 781 RON
37 1 1 Control knob compl. (316042710) 3689 RON
38 1 3 Washer (339129610) 446 RON
39 1 2 Axial needle bearing (143114280) 2459 RON
40 1 3 Cup spring (141154920) 781 RON
41 1 1 Coupling sleeve (340003230) 5926 RON
42 1 1 Pinion shaft compl. (316043240) 3698 RON
43 1 1 Butting sheet (339130980) 446 RON
44 1 1 Shift element (316029560) 5479 RON
45 1 1 Depth stop (341511630) Indisponibil Indisponibil
46 1 1 Support handle compl. (314001110) 5926 RON
47 1 1 Sealing ring (343376040) 781 RON
48 1 1 Ball bearing, 8x22x7 (143114880) Indisponibil Indisponibil
49 1 1 Cap screw (341703360) 2124 RON
50 1 1 Keyless chuck w.adaptor (316043320) 3698 RON
51 1 1 Quick-change adaptor (316043790) 19236 RON
52 1 1 Ball bearing, 6X 19X 6 (143114750) Indisponibil Indisponibil
53 1 1 Intermediate flange (343374270) Indisponibil Indisponibil
54 1 1 Rating plate (338050710) 446 RON
55 1 1 Electronic unit 230V (343081540) 21361 RON
56 1 1 poti switch 230V (343406880) 10288 RON
57 1 5 Self-tap. fill. h. screw (141117060) 781 RON
58 1 1 Drill Handle w/overmold green (343393030) 488 RON
59 1 1 Cable clip (343362490) 781 RON
60 1 1 Fan w. prot. Grid (316035740) Indisponibil Indisponibil
61 1 1 Armature cpl.230V (w. tacho gen.) (310007880) Indisponibil Indisponibil
62 1 1 O-ring (143192430) Indisponibil Indisponibil
63 1 2 Self-tap. fill. h. screw (141118260) 446 RON
64 1 1 Field coil 230V (311009810) Indisponibil Indisponibil
65 1 1 Motor housing (315012650) 5926 RON
66 1 1 M-Label 99, 52x22 UHE 28 Plus (338121590) 446 RON
67 1 1 399999990 - Indisponibil
68 1 2 Indication label (338115410) 446 RON
69 1 1 Brush contact (339129390) 1340 RON
70 1 1 Carbon brush set,230V (316043740) 7157 RON
71 1 1 Brush holder module R+L,230 V (316043610) 7157 RON
72 1 1 Cable with plug (344495250) 8275 RON
73 1 1 Cable sleeve (344101140) 105 RON
74 1 1 Maintenance kit (316043670) 54357 RON
75 1 1 Support ring (341013060) 190 RON
880 1 1 Grease FG 126 (344130800) Indisponibil Indisponibil
890 1 1 Tube Grease,50g Klueber Microlube GL 261 (344131210) Indisponibil Indisponibil
1001 1 1 338502410 - Indisponibil
