Top » Piese de schimb » PIESE METABO » 31672000

Travelling table - 31672000 - -
[31672000]
Travelling table - 31672000 - -
Click pentru a mari
Imagini suplimentare
Travelling table - 31672000 - -
Click pentru a mari

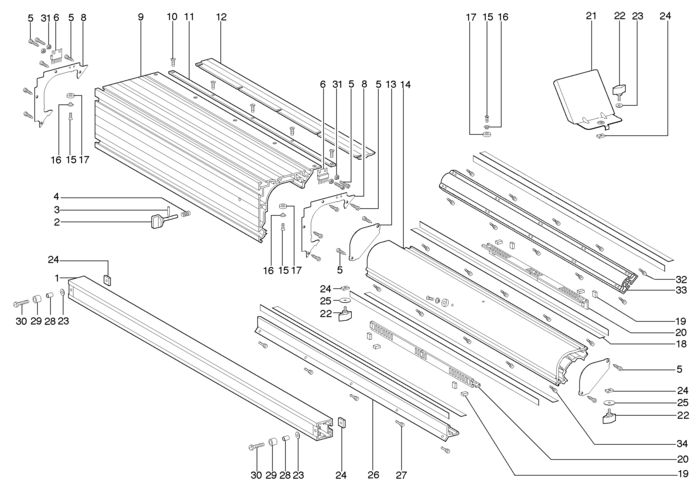

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Profil (341145710) 3698 RON
2 1 1 LEVERPLUG (341054130) 5926 RON
3 1 1 Grub screw (141116120) 446 RON
4 1 1 Pressure spring (342001640) 781 RON
5 1 16 Self-tap. fill. h. screw (141118730) 446 RON
6 1 2 Cleaning brush (344081740) 5479 RON
8 1 2 339121880 - Indisponibil
9 1 1 TABLE PROFILE (341145340) 108379 RON
10 1 5 Countersunk screw (141119150) 446 RON
11 1 1 Slot strip (341145660) 7157 RON
12 1 1 341145310 - Indisponibil
13 1 2 Sheet cover (339128500) 1564 RON
14 1 1 Guide rail cpl. (316027820) 73930 RON
15 1 4 Self-tapp. counters. screw (141118440) 446 RON
16 1 4 Spacer sleeve (339127520) 446 RON
17 1 4 Rubber buffer (344094820) 446 RON
18 1 8 339127720 - Indisponibil
19 1 8 Felt (344070590) 446 RON
20 1 4 Needle cage (343371310) 3018 RON
21 1 1 Holding down device (339128550) 955 RON
22 1 3 Thumbscrew (341111630) 781 RON
23 1 3 Washer (141150130) 446 RON
24 1 5 Sliding block (339002680) 1340 RON
25 1 2 Washer (141150950) 781 RON
26 1 1 Cranked strap (341145320) 19236 RON
27 1 5 Drilling screw (141121690) 446 RON
28 1 2 Spacer bush (341004640) 1340 RON
29 1 2 Rubber ring (339040770) 446 RON
30 1 2 Fillister head screw (141117310) 781 RON
31 1 4 Washer (141150010) 446 RON
32 1 1 Fillister head screw (141110600) 446 RON
33 1 1 Guide profile (341145920) 26730 RON
34 1 1 Fillister head screw (141121780) 446 RON
