TKU 1693 W - 01693180 - CH 230V
[01693180]
TKU 1693 W - 01693180 - CH 230V
Click pentru a mari
Imagini suplimentare
TKU 1693 W - 01693180 - CH 230V
Click pentru a mari
TKU 1693 W - 01693180 - CH 230V
Click pentru a mari
TKU 1693 W - 01693180 - CH 230V
Click pentru a mari
TKU 1693 W - 01693180 - CH 230V
Click pentru a mari

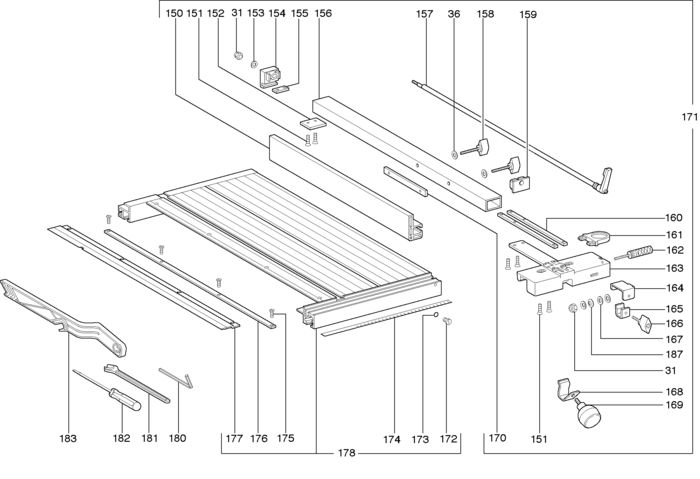

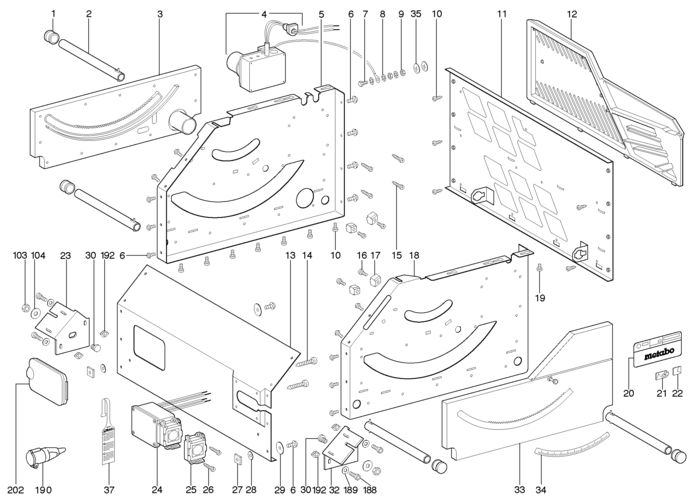

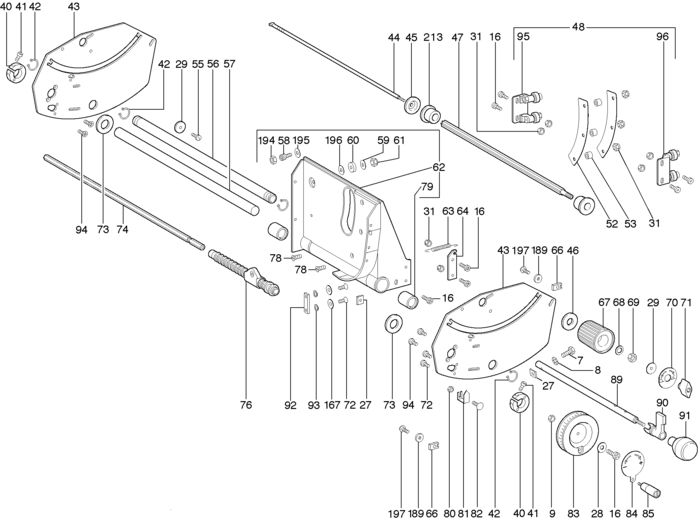

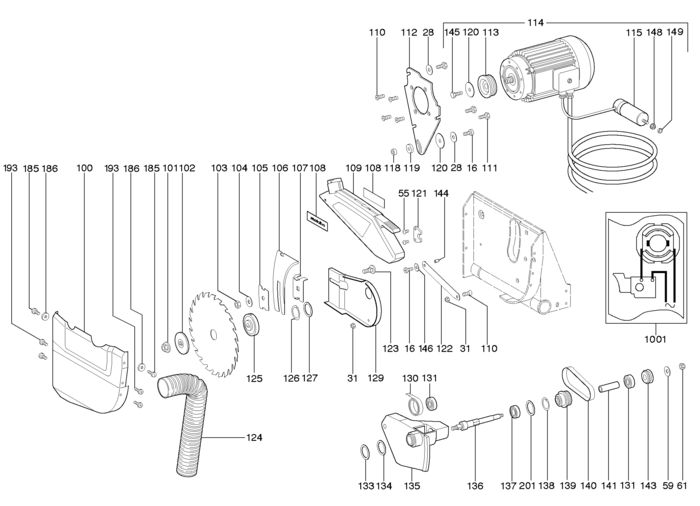

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 343373300 - Indisponibil
2 1 4 341055010 - Indisponibil
3 1 1 343371280 - Indisponibil
4 1 1 Socket single phase (343406490) 54357 RON
5 1 1 Sheet cover back (339127920) 34448 RON
6 1 19 Screw (341702400) 446 RON
7 1 2 Hexagon head screw (141110280) 446 RON
8 1 4 Serrated lock washer (141150430) 446 RON
9 1 6 Hexagonal nut (141130100) 446 RON
10 1 26 Self-tap. fill. h. screw (141116800) 446 RON
11 1 1 Lateral plate right (339127930) 46975 RON
12 1 1 343371340 - Indisponibil
13 1 1 316028650 - Indisponibil
14 1 2 Self-tap. fill. h. screw (141119810) 781 RON
15 1 4 Self-tap. fill. h. screw (141113180) 446 RON
16 1 16 Fillister head screw (141110640) 781 RON
17 1 4 Curve segment (341054690) 105 RON
18 1 1 Sheet cover front (339127910) 34448 RON
19 1 12 Self-tap. fill. h. screw (341701460) 446 RON
20 1 1 Rating plate (338041590) 446 RON
21 1 1 GS SEAL (338109570) 446 RON
22 1 1 Label (338109020) 1564 RON
23 1 1 Angle (339128570) 4249 RON
24 1 1 343406410 - Indisponibil
25 1 1 Switch cover (343405760) 3689 RON
26 1 2 Self-tap. fill. h. screw (141116840) 446 RON
27 1 4 Sliding block (339002680) 1340 RON
28 1 6 Washer ZN5BK (141150970) 446 RON
29 1 4 Washer (141150950) 781 RON
30 1 4 341055230 - Indisponibil
31 1 11 Hexagonal lock nut (141130650) 781 RON
32 1 1 Angle (339128560) 3689 RON
33 1 1 TOOTH SEGMENT COMPL. (316025570) 33553 RON
34 1 1 Scale (338111140) 3689 RON
35 1 1 Indication label (338110650) 781 RON
36 1 2 Washer Washer cod vechi 86300016365 (141151940) 446 RON
37 1 1 Tag (338108260) 3018 RON
40 1 1 Clamping ring (341054960) 7157 RON
41 1 2 Cap screw (141113720) 781 RON
42 1 4 Retaining ring (141180150) 446 RON
43 1 2 339127950 - Indisponibil
44 1 1 341054750 - Indisponibil
45 1 1 Washer (339002950) 1564 RON
46 1 1 Washer ZN5BK (141153620) 1564 RON
47 1 1 341145730 - Indisponibil
48 1 1 Pair of consoles (316027630) 54357 RON
52 1 2 Guiding sheet (339128530) 1340 RON
53 1 3 Spacer bush (341003390) 1564 RON
55 1 3 Fillister head screw (141110570) 446 RON
56 1 1 Tube (341054870) 18341 RON
57 1 1 Guide rog (341054770) 24046 RON
58 1 1 Threaded bolt (341500370) 3018 RON
59 1 2 Washer (141150810) 446 RON
60 1 1 Spacer bush (341002860) 781 RON
61 1 3 Hexagonal lock nut (141130950) 446 RON
62 1 1 Wheel guard cpl. (316027860) 88582 RON
63 1 1 342001960 - Indisponibil
64 1 1 LOCKING DEVICE (339127960) 1340 RON
66 1 2 Guide (339127970) 1340 RON
67 1 1 Handwheel (343357770) 5479 RON
68 1 1 Washer (141151990) 446 RON
69 1 1 Hexagonal nut (141130140) 446 RON
70 1 1 Pictograph (338109120) 190 RON
71 1 1 341100970 - Indisponibil
72 1 4 Fillister head screw (141110600) 446 RON
73 1 2 344094910 - Indisponibil
74 1 1 341054860 - Indisponibil
76 1 1 316025990 - Indisponibil
78 1 3 Countersunk screw (141112310) 781 RON
79 1 1 Linear ball bearing (143114450) 21361 RON
80 1 1 Hexagonal nut (141130090) 446 RON
81 1 1 Pointer (339128540) 2124 RON
82 1 1 Truss head screw (141120180) 446 RON
83 1 1 343373310 - Indisponibil
84 1 1 338109810 - Indisponibil
85 1 1 Cylinder handle (341111590) 3689 RON
89 1 1 Rod (341054910) 15993 RON
90 1 1 Locking Lever (343371350) 2124 RON
91 1 1 316025470 - Indisponibil
92 1 1 Retraining sheet (339128620) 781 RON
93 1 2 Spring washer (141150280) 446 RON
94 1 2 Countersunk screw (141116560) 446 RON
95 1 1 316026880 - Indisponibil
96 1 1 FRONT CONSOLE COMPL. (316026920) 30980 RON
100 1 1 343371410 - Indisponibil
101 1 1 341101750 - Indisponibil
102 1 1 341054880 - Indisponibil
103 1 3 Hexagonal nut (141130130) 781 RON
104 1 3 Washer (141150140) 446 RON
105 1 1 339128610 - Indisponibil
106 1 1 339128580 - Indisponibil
107 1 1 339128600 - Indisponibil
108 1 2 Metabo label (338115650) 446 RON
109 1 1 343371420 - Indisponibil
110 1 5 Countersunk screw (141112280) 446 RON
111 1 3 Hexagon head screw (141113290) 446 RON
112 1 1 339128120 - Indisponibil
113 1 1 RIBBED WASHER (341054890) 955 RON
114 1 1 Motor 230 V (317002150) 392698 RON
115 1 1 343253840 - Indisponibil
118 1 3 Spacer bush (341054900) 781 RON
119 1 1 Spacer ring (341054920) 781 RON
120 1 2 Washer (141151030) 781 RON
121 1 1 Retraining sheet (339128510) 2459 RON
122 1 1 GUIDER (339128520) 2459 RON
123 1 1 Truss head screw (341702950) 190 RON
124 1 1 Suction hose (344094890) 955 RON
125 1 1 Back flange (341054980) 10288 RON
126 1 1 Retaining ring (141180170) 446 RON
127 1 1 141152240 - Indisponibil
129 1 1 Riving knife support (339128590) 13756 RON
130 1 1 342021570 - Indisponibil
131 1 2 Ball bearing, 12x37x12 (143114470) 5479 RON
133 1 1 Washer (141152220) 446 RON
134 1 1 Washer (141151880) 781 RON
135 1 1 315414260 - Indisponibil
136 1 1 Saw axle (341054990) 64311 RON
137 1 1 Ball bearing, 17x35x10 (143111510) 5926 RON
138 1 1 Retaining ring (141180390) 781 RON
139 1 1 341054970 - Indisponibil
140 1 1 344260240 - Indisponibil
141 1 1 Spacing tube (341054940) 1564 RON
143 1 1 341054930 - Indisponibil
144 1 1 Butting ring (341043290) 781 RON
145 1 1 Hexagon head screw (141121730) 2459 RON
146 1 1 Lock washer (141150750) 446 RON
148 1 1 Serrated lock washer (141150440) 446 RON
149 1 1 Plain hexagon nut (141130050) 446 RON
150 1 1 341143620 - Indisponibil
151 1 6 Countersunk screw (141112470) 446 RON
152 1 1 Support (341143830) 3018 RON
153 1 2 Washer (141151340) 446 RON
154 1 1 Clamp hook (315412480) 11519 RON
155 1 1 Tapped-hole plate (341143840) 3018 RON
156 1 1 Guide tube (341145270) 26730 RON
157 1 1 316025560 - Indisponibil
158 1 2 Thumbscrew (341111690) 781 RON
159 1 1 Cover (343359160) 1340 RON
160 1 2 341141860 - Indisponibil
161 1 1 Magnifier (316019530) 955 RON
162 1 1 Scale body cpl. (316019510) 18341 RON
163 1 1 Parallel guide w. needles (316019540) 26730 RON
164 1 1 Clamping bridge (339124450) 3689 RON
165 1 1 Strap (339124770) 190 RON
166 1 1 Thumbscrew (341111650) 781 RON
167 1 4 Washer (141152070) 446 RON
168 1 1 Clamp strap (339124270) 2459 RON
169 1 1 Handle cpl. (316021840) 5926 RON
170 1 1 Tapped-hole plate (341143840) 3018 RON
171 1 1 631714000 - Indisponibil
172 1 1 Cap screw (141111050) 446 RON
173 1 1 O-ring (143193620) 781 RON
174 1 1 Scale (338110420) 10288 RON
175 1 4 Countersunk screw (141119150) 446 RON
176 1 1 Slot strip (341145670) 7157 RON
177 1 1 TABLE EDGE RIGHT (341145490) 19236 RON
178 1 1 Table cpl. (316025180) 171574 RON
180 1 1 Cranked wrench key (344161520) 781 RON
181 1 1 Open-end spanner (344161060) 5479 RON
182 1 1 344162390 - Indisponibil
183 1 1 Push stick (343368840) 7157 RON
185 1 3 Cap screw (141111070) 446 RON
186 1 2 Washer (141150110) 446 RON
187 1 2 Cup spring (141152550) 781 RON
188 1 4 Cap screw (141113840) 781 RON
189 1 4 Washer (141150130) 446 RON
190 1 1 630973000 - Indisponibil
192 1 4 Square nut (141130870) 446 RON
193 1 4 Fillister head screw (141119850) 446 RON
194 1 1 Flat hex nut (341101810) 781 RON
195 1 1 Washer (141151280) 781 RON
196 1 1 Washer (141151130) 781 RON
197 1 2 Hexagon screw (141116220) 446 RON
201 1 1 Washer (141152250) 781 RON
202 1 1 Cover (344095320) 2124 RON
213 1 2 Flange bush (341055510) 3018 RON
1001 1 1 338501640 - Indisponibil
