Top » Piese de schimb » PIESE METABO » 01633001

TKU 1633 W - 01633001 - EU 230V
[01633001]
TKU 1633 W - 01633001 - EU 230V
Click pentru a mari
Imagini suplimentare
TKU 1633 W - 01633001 - EU 230V
Click pentru a mari
TKU 1633 W - 01633001 - EU 230V
Click pentru a mari
TKU 1633 W - 01633001 - EU 230V
Click pentru a mari
TKU 1633 W - 01633001 - EU 230V
Click pentru a mari
TKU 1633 W - 01633001 - EU 230V
Click pentru a mari

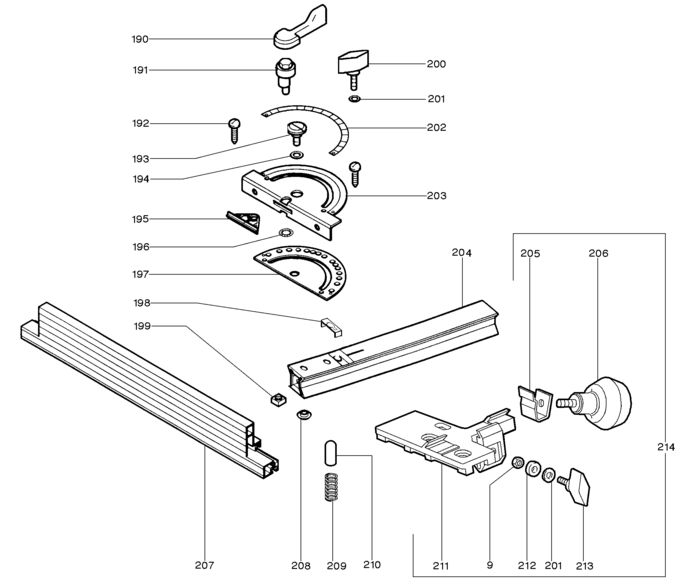

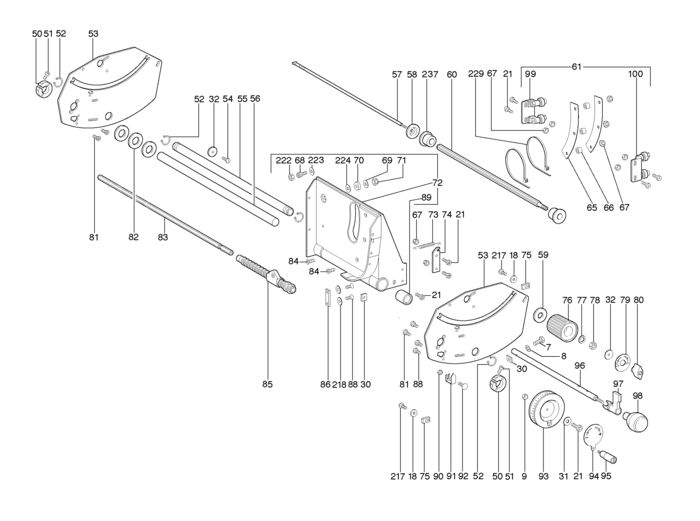

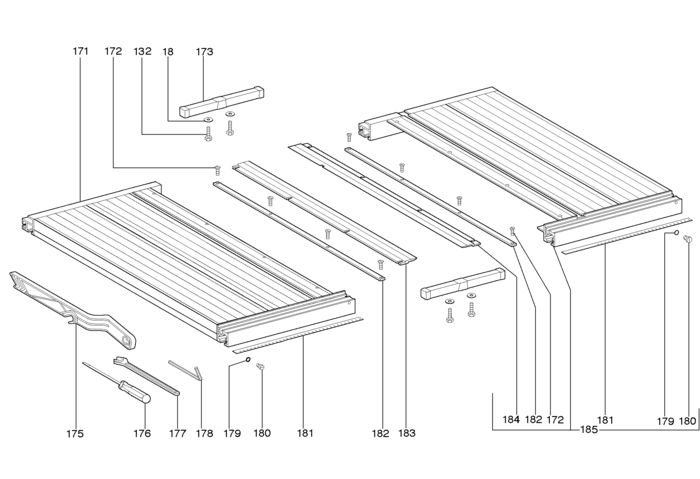

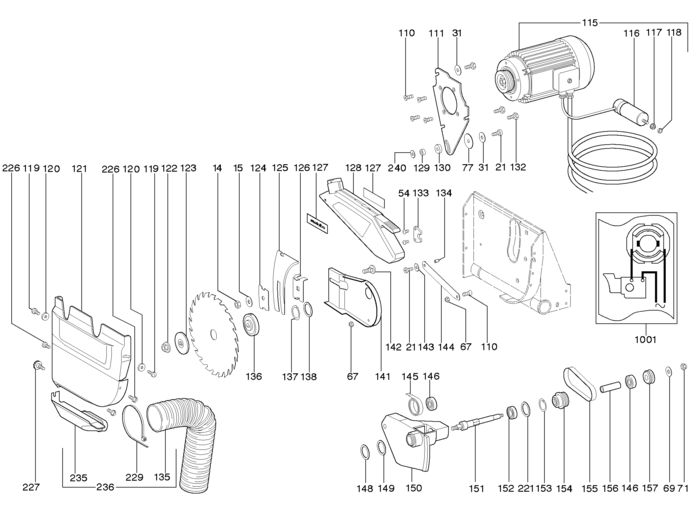

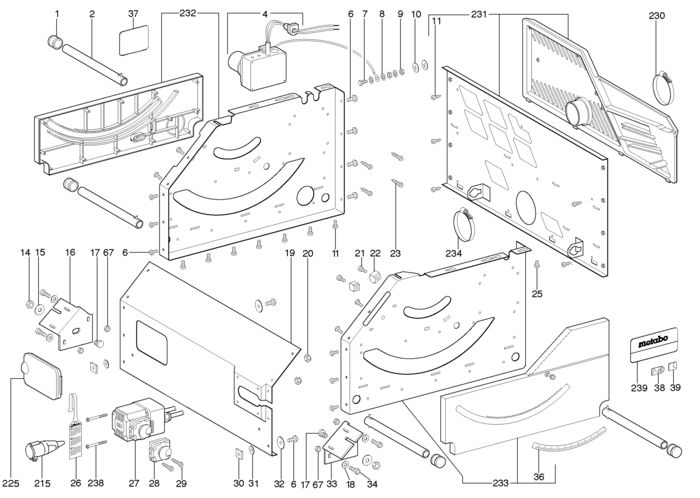

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 343373300 - Indisponibil
2 1 4 341055010 - Indisponibil
4 1 1 SWITCH COMPL. WS (343406150) 4442 RON
6 1 17 Screw (341702400) 446 RON
7 1 2 Hexagon head screw (141110280) 446 RON
8 1 4 Serrated lock washer (141150430) 446 RON
9 1 7 Hexagonal nut (141130100) 446 RON
10 1 2 Indication label (338110650) 781 RON
11 1 23 Self-tap. fill. h. screw (141116800) 446 RON
14 1 3 Hexagonal nut (141130130) 781 RON
15 1 3 Washer (141150140) 446 RON
16 1 1 Angle (339128570) 4249 RON
17 1 4 341055230 - Indisponibil
18 1 6 Washer (141150130) 446 RON
19 1 1 316028650 - Indisponibil
20 1 2 Hexagonal lock nut (141130930) 446 RON
21 1 9 Fillister head screw (141110640) 781 RON
22 1 2 Curve segment (341054690) 105 RON
23 1 4 Self-tap. fill. h. screw (141113180) 446 RON
25 1 12 Self-tap. fill. h. screw (341701460) 446 RON
26 1 1 Tag (338108260) 3018 RON
27 1 1 SWITCH,230V / 400V (343407210) 117663 RON
28 1 1 Switch cover (343404950) 3689 RON
29 1 2 Self-tap. fill. h. screw (141116840) 446 RON
30 1 4 Sliding block (339002680) 1340 RON
31 1 4 Washer ZN5BK (141150970) 446 RON
32 1 4 Washer (141150950) 781 RON
33 1 1 Angle (339128560) 3689 RON
34 1 4 Cap screw (141113840) 781 RON
36 1 1 Scale (338111140) 3689 RON
37 1 1 Rating plate (338041610) 446 RON
38 1 1 GS SEAL (338109570) 446 RON
39 1 1 Label (338109020) 1564 RON
50 1 1 Clamping ring (341054960) 7157 RON
51 1 2 Cap screw (141113720) 781 RON
52 1 4 Retaining ring (141180150) 446 RON
53 1 2 339127950 - Indisponibil
54 1 3 Fillister head screw (141110570) 446 RON
55 1 1 Tube (341054870) 18341 RON
56 1 1 Guide rog (341054770) 24046 RON
57 1 1 341054750 - Indisponibil
58 1 1 Washer (339002950) 1564 RON
59 1 1 Washer ZN5BK (141153620) 1564 RON
60 1 1 341145730 - Indisponibil
61 1 1 Pair of consoles (316027630) 54357 RON
65 1 2 Guiding sheet (339128530) 1340 RON
66 1 3 Spacer bush (341003390) 1564 RON
67 1 10 Hexagonal lock nut (141130650) 781 RON
68 1 1 Threaded bolt (341500370) 3018 RON
69 1 2 Washer (141150810) 446 RON
70 1 1 Spacer bush (341002860) 781 RON
71 1 2 Hexagonal lock nut (141130950) 446 RON
72 1 1 Wheel guard cpl. (316027860) 88582 RON
73 1 1 342001960 - Indisponibil
74 1 1 LOCKING DEVICE (339127960) 1340 RON
75 1 1 Guide (339127970) 1340 RON
76 1 1 Handwheel (343357770) 5479 RON
77 1 2 Washer (141151030) 781 RON
78 1 1 Hexagonal nut (141130140) 446 RON
79 1 1 Pictograph (338109120) 190 RON
80 1 1 341100970 - Indisponibil
81 1 2 Countersunk screw (141116560) 446 RON
82 1 3 344094910 - Indisponibil
83 1 1 341054860 - Indisponibil
84 1 3 Countersunk screw (141112310) 781 RON
85 1 1 316025990 - Indisponibil
86 1 1 Retraining sheet (339128620) 781 RON
88 1 4 Fillister head screw (141110600) 446 RON
89 1 1 Linear ball bearing (143114450) 21361 RON
90 1 1 Hexagonal nut (141130090) 446 RON
91 1 1 Pointer (339128540) 2124 RON
92 1 1 Truss head screw (141120180) 446 RON
93 1 1 343373310 - Indisponibil
94 1 1 338109810 - Indisponibil
95 1 1 Cylinder handle (341111590) 3689 RON
96 1 1 Rod (341054910) 15993 RON
97 1 1 Locking Lever (343371350) 2124 RON
98 1 1 316025470 - Indisponibil
99 1 1 316026880 - Indisponibil
100 1 1 FRONT CONSOLE COMPL. (316026920) 30980 RON
110 1 5 Countersunk screw (141112280) 446 RON
111 1 1 339128120 - Indisponibil
115 1 1 317002770 - Indisponibil
116 1 1 343253840 - Indisponibil
117 1 1 Serrated lock washer (141150440) 446 RON
118 1 1 Plain hexagon nut (141130050) 446 RON
119 1 2 Cap screw (141111070) 446 RON
120 1 2 Washer (141150110) 446 RON
121 1 1 343374010 - Indisponibil
122 1 1 341101750 - Indisponibil
123 1 1 341054880 - Indisponibil
124 1 1 339128610 - Indisponibil
125 1 1 339128580 - Indisponibil
126 1 1 339128600 - Indisponibil
127 1 2 Metabo label (338115650) 446 RON
128 1 1 343371420 - Indisponibil
129 1 1 Spacer bush (341054900) 781 RON
130 1 1 Spacer ring (341054920) 781 RON
132 1 7 Hexagon head screw (141113290) 446 RON
133 1 1 Retraining sheet (339128510) 2459 RON
134 1 1 Butting ring (341043290) 781 RON
135 1 1 344095340 - Indisponibil
136 1 1 Back flange (341054980) 10288 RON
137 1 1 Retaining ring (141180170) 446 RON
138 1 1 141152240 - Indisponibil
141 1 1 Riving knife support (339128590) 13756 RON
142 1 1 Truss head screw (341702950) 190 RON
143 1 1 Lock washer (141150750) 446 RON
144 1 1 GUIDER (339128520) 2459 RON
145 1 1 342021570 - Indisponibil
146 1 2 Ball bearing, 12x37x12 (143114470) 5479 RON
148 1 1 Washer (141152220) 446 RON
149 1 1 Washer (141151880) 781 RON
150 1 1 315414260 - Indisponibil
151 1 1 Saw axle (341054990) 64311 RON
152 1 1 Ball bearing, 17x35x10 (143111510) 5926 RON
153 1 1 Retaining ring (141180390) 781 RON
154 1 1 341054970 - Indisponibil
155 1 1 344260240 - Indisponibil
156 1 1 Spacing tube (341054940) 1564 RON
157 1 1 341054930 - Indisponibil
171 1 1 Table cpl. (316025980) 117663 RON
172 1 8 Countersunk screw (141119150) 446 RON
173 1 2 Connecting piece (341144090) 13756 RON
175 1 1 Push stick (343368840) 7157 RON
176 1 1 344162390 - Indisponibil
177 1 1 Open-end spanner (344161060) 5479 RON
178 1 1 Cranked wrench key (344161520) 781 RON
179 1 2 O-ring (143193620) 781 RON
180 1 2 Cap screw (141111050) 446 RON
181 1 2 Scale (338110420) 10288 RON
182 1 2 Slot strip (341145670) 7157 RON
183 1 1 TABLE EDGE LEFT (341145830) 26730 RON
184 1 1 TABLE EDGE RIGHT (341145490) 19236 RON
185 1 1 Table cpl. (316025180) 171574 RON
190 1 1 Clamping lever (343372180) 4249 RON
191 1 1 Eccentric shaft (341055320) 13756 RON
192 1 2 Cap screw (141111170) 446 RON
193 1 1 Guide screw (341055310) 11519 RON
194 1 1 Saucer spring (141150540) 446 RON
195 1 1 PULLING DEVICE (343372170) 488 RON
196 1 1 Circlip (141181450) 446 RON
197 1 1 DEVIDING WASHER (339128290) 13756 RON
198 1 1 Slide (339128320) 5479 RON
199 1 1 Square nut (141130870) 446 RON
200 1 1 Thumbscrew (341111640) 781 RON
201 1 2 Washer Washer cod vechi 86300016365 (141151940) 446 RON
202 1 1 ANGLE SCALE (338110930) 7157 RON
203 1 1 Guide (339128280) 19236 RON
204 1 1 341145880 - Indisponibil
205 1 1 Clamp strap (339124270) 2459 RON
206 1 1 Handle cpl. (316021840) 5926 RON
207 1 1 Guide rail (341145890) 3698 RON
208 1 1 Cover lever (343372160) 105 RON
209 1 1 Pressure spring (342002480) 781 RON
210 1 1 INDEXING PIN (341055330) 1564 RON
211 1 1 315414580 - Indisponibil
212 1 1 Spacer sleeve (341055340) 3018 RON
213 1 1 Thumbscrew (341111660) 105 RON
214 1 1 Stop guide cpl. (316026630) 68673 RON
215 1 1 399999990 - Indisponibil
217 1 2 Hexagon screw (141116220) 446 RON
218 1 2 Washer (141152070) 446 RON
221 1 1 Washer (141152250) 781 RON
222 1 1 Flat hex nut (341101810) 781 RON
223 1 1 Washer (141151280) 781 RON
224 1 1 Washer (141151130) 781 RON
225 1 1 Cover (344095320) 2124 RON
226 1 3 Fillister head screw (141120190) 446 RON
227 1 1 341702960 - Indisponibil
229 1 3 343373430 - Indisponibil
230 1 1 Clamping band (339003570) 2459 RON
231 1 1 316028640 - Indisponibil
232 1 1 316028630 - Indisponibil
233 1 1 Sheet c over , front (316027910) 59166 RON
234 1 1 339006510 - Indisponibil
235 1 1 343374830 - Indisponibil
236 1 1 316029810 - Indisponibil
237 1 2 Flange bush (341055510) 3018 RON
238 1 2 Fillister head screw (141111470) 781 RON
239 1 1 Metabo label (338116260) 781 RON
240 1 1 Washer (141152870) 446 RON
1001 1 1 338502130 - Indisponibil
