Top » Piese de schimb » PIESE METABO » 0108503211 10

TKHS315E/P-3100 W - 0108503211 10 - EU 230V
[0108503211 10]
TKHS315E/P-3100 W - 0108503211 10 - EU 230V
Click pentru a mari
Imagini suplimentare
TKHS315E/P-3100 W - 0108503211 10 - EU 230V
Click pentru a mari

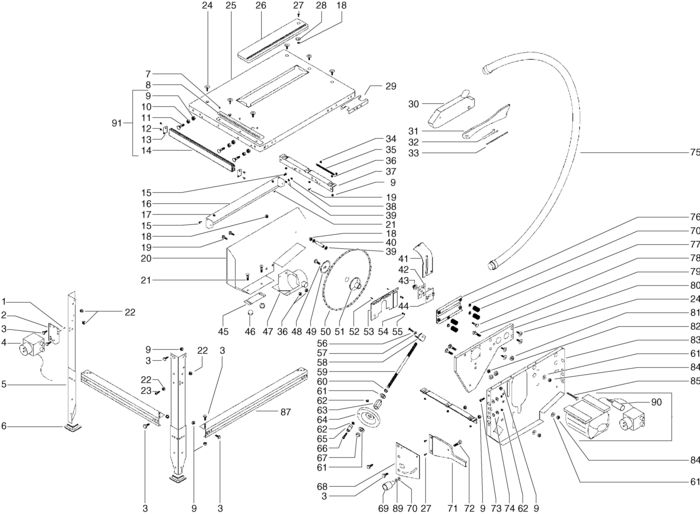

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 RAISED CHEESE HEAD SCREW M 4X45 VERZ. (86123002030) 446 RON
2 1 1 SWITCH PLATE BD 2,00X85X125,5 (81382407063) 105 RON
3 1 21 Hex head screw (86103001178) Indisponibil Indisponibil
4 1 1 SWITCH SSK WN 230V 14A KSVSW (88131079622) 73930 RON
5 1 4 LEG BL 1,5X127X840 (81382407071) 10288 RON
6 1 4 RUBBER FOOT (87057019365) 1564 RON
7 1 3 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
8 1 1 SCALE 0,22X13X356 (81142678299) 7157 RON
9 1 35 Flange nut (6209110995) 446 RON
10 1 3 Spacer sleeve (81485412910) 781 RON
11 1 3 Truss head screw (86110000659) 446 RON
12 1 4 86172015687 - Indisponibil
13 1 2 END PIECE BL 2X26X35 (81492091649) 446 RON
14 1 1 FENCE GUIDE EXTRUSION 465 MM (81383412907) 13756 RON
15 1 2 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
16 1 1 COVER BL 1,5X128X793 (81382415287) 5479 RON
17 1 2 Flange nut (86209114230) 446 RON
18 1 5 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
19 1 3 HEXAGON HEAD SCREW M 5X16 VERZ. (86103016850) 446 RON
20 1 1 CHIPCASE BL 1,50X444X739 (81382415090) 13756 RON
21 1 3 CUP SQUARE NECK SCREW M 5X16 VERZ. (86110125036) 446 RON
22 1 4 HEXAGON NUT (86200002235) Indisponibil Indisponibil
23 1 2 HEXAGON SOCKET HEAD CAP SCREW M 8X30 VER (86121000855) 446 RON
24 1 10 HEX.SOCKET COUNTERS.HEAD SCREW M 8X25 VE (86132158523) 446 RON
25 1 1 1382406849 - Indisponibil
26 1 1 REMOVABLE TABLE SECTION (81381406667) 5926 RON
27 1 3 Countersunk screw (86132087995) Indisponibil Indisponibil
28 1 1 CAM PLATE BL 2,99XRD25/RDI 6,5 (81482408962) Indisponibil Indisponibil
29 1 1 HOSE CARRIER BL 2,99X100X160 (81482214092) 3018 RON
30 1 1 1381158612 - Indisponibil
31 1 1 Push stick (81394201630) 3018 RON
32 1 1 OPEN END SPANNER BL 3X43/15X145 SW 19X14 (81392038481) 1564 RON
33 1 1 LOCK BAR (89103017960) 105 RON
34 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
35 1 1 7051415455 - Indisponibil
36 1 3 NUT AND WASHER ASSEMBLY (86209018460) 446 RON
37 1 2 FASTENING BRACKET BL 2,99X66X440 (81382415252) 3689 RON
38 1 1 HEXAGON NUT (86200002200) 446 RON
39 1 8 Washer Washer cod vechi 86300016365 (141151940) 446 RON
40 1 2 SPACER SLEEVE DH 6X60 VERZ. (86442158558) 446 RON
41 1 1 RIVING KNIFE BL 2,20X190,9X257,5 (81482411726) 21361 RON
42 1 1 PRESSURE PLATE BL 2,99X80X60 (81382213749) 781 RON
43 1 1 FLANGE NUT (86209002432) 105 RON
44 1 1 RIVING KNIFE CARRIER 60X80X7,5 (81390012027) 2124 RON
45 1 1 SLIDE PLATE BL 1,5X48X137,5 (81382407110) 781 RON
46 1 2 KNURLED THUMB NUT, HIGH TYPE M 5 (86241125040) 781 RON
47 1 1 DUST EXTRACTION PORT (81381409372) 488 RON
48 1 1 Hex head screw (86103001267) 781 RON
49 1 1 BLADE COLLAR, OUTER D 276 (81330025316) Indisponibil Indisponibil
50 1 1 1386660162 - Indisponibil
51 1 1 BLADE COLLAR, INNER (81330025308) Indisponibil Indisponibil
52 1 2 Fillister head screw (86123002022) 446 RON
53 1 1 GUARD PLATE BL 0,88X217X138 (81382415260) 1340 RON
54 1 2 MEDIUM WASHER (86300016330) 446 RON
55 1 2 HEXAGON NUT (86200002197) 446 RON
56 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
57 1 1 Washer (86300016322) Indisponibil Indisponibil
58 1 1 BRACKE (81010188187) 2124 RON
59 1 1 SPINDLE, HEIGHT ADJUSTMENT RD 9,8X370/2X (81485415471) 190 RON
60 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
61 1 4 WASHER (86305002494) 446 RON
62 1 4 Hex nut (86200002219) 446 RON
63 1 1 COLLAR NUT SW 24X60 / M 10 (81485415463) 488 RON
64 1 1 HANDWHEEL BL 2X RD 165 (81382411257) 3689 RON
65 1 1 TURNING TANG (87004017433) 1340 RON
66 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121112564) 446 RON
67 1 1 CAP NUT M 10 VERZ. (86201002140) 446 RON
68 1 1 SWIVEL ARM PLATE BL 2X191X220 (81382415279) 488 RON
69 1 1 7006018305 - Indisponibil
70 1 5 Washer (86305002486) 446 RON
71 1 1 LEVER, BLADE TILT BL 2X303X142 (81382415244) 4249 RON
72 1 1 Truss head screw (86110017942) 446 RON
73 1 2 HEXAGON SOCKET HEAD CAP SCREW M 8X16 VER (86121000790) 446 RON
74 1 4 WASHER R 6,6 VERZ. (86307128940) 446 RON
75 1 1 CORRUGATED HOSE 1500 MM (81010170024) 13756 RON
76 1 1 RIVING KNIFE CARRIER PLATE BL 2,99X120X1 (81382407020) 5926 RON
77 1 4 PRESSURE SPRING RDA 19X28X3,0 (87051005818) 781 RON
78 1 1 CUP SQUARE NECK SCREW (86110000691) 781 RON
79 1 3 CUP SQUARE NECK SCREW M 10X25 VERZ. (86110085743) 446 RON
80 1 1 1382406865 - Indisponibil
81 1 3 GUIDE ROLLER RD 25X5,5 (81485408882) 105 RON
82 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
83 1 1 CHIP CASE BL 2,99X676X480 (81382406873) 30980 RON
84 1 3 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
85 1 2 HEXAGON HEAD SCREW M 6X80 VERZ. (86103008717) 446 RON
87 1 2 STANCHION BL 1,5X118X844 LANG (81382407080) 5479 RON
89 1 1 CUP SPRING (87053075104) 446 RON
90 1 1 CAPACITOR 37,5uF/400V 45,5X93 BOLZEN M 8 (88050011829) 10288 RON
91 1 1 FENCE GUIDE EXTRUSION 465 MM ET (81010170016) 19236 RON
