Top » Piese de schimb » PIESE METABO » 0103152239 11

TKHS315E/P-2200 W - 0103152239 11 - GB 110V
[0103152239 11]
TKHS315E/P-2200 W - 0103152239 11 - GB 110V
Click pentru a mari
Imagini suplimentare
TKHS315E/P-2200 W - 0103152239 11 - GB 110V
Click pentru a mari
TKHS315E/P-2200 W - 0103152239 11 - GB 110V
Click pentru a mari
TKHS315E/P-2200 W - 0103152239 11 - GB 110V
Click pentru a mari

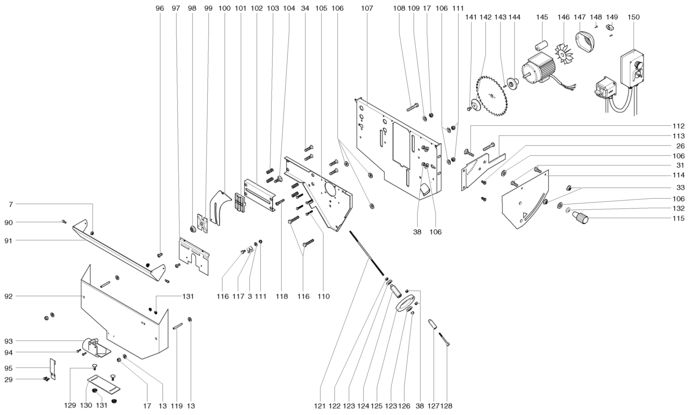

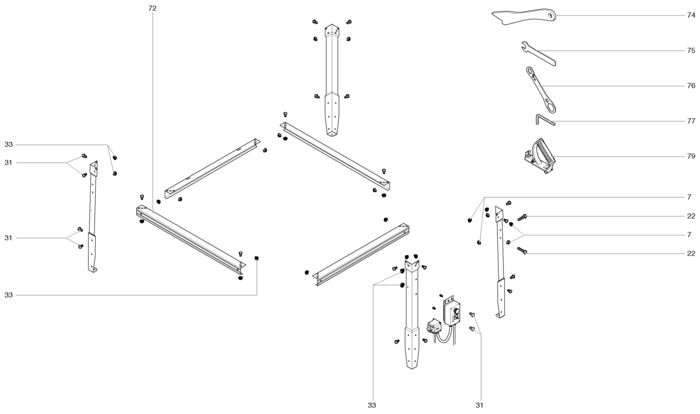

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 EXTENSION PLATE BL 1,50X572X822 TVL (81382678113) 26730 RON
2 1 5 HEXAGON NUT (86200002235) Indisponibil Indisponibil
3 1 8 Washer (86300016322) Indisponibil Indisponibil
4 1 2 BEARING BOLT (81395200611) 1340 RON
5 1 2 SUPPORT BL 1,00X70X764,5 TVL (81382678121) 8275 RON
6 1 3 Hex head screw (86103015675) 446 RON
7 1 9 Flange nut (86209114230) 446 RON
8 1 2 COUNTERSUNK HEAD TAPPING SCREW (86174001942) 446 RON
9 1 1 PLUG QUERANSCHLAG (81391200145) 1340 RON
10 1 1 FENCE EXTRUSION 300 MM (81393005315) 7157 RON
11 1 1 End piece (82391091725) 781 RON
12 1 2 Truss head screw (86110076574) 446 RON
13 1 9 Washer Washer cod vechi 86300016365 (141151940) 446 RON
14 1 2 Knurled nut (86241125058) 781 RON
15 1 1 FENCE EXTRUSION 300 MM (81010017811) 955 RON
16 1 1 CROSSCUT FENCE GUIDE ROD RD 20X800/2XM8 (81485408254) 21361 RON
17 1 6 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
18 1 1 STOP RULE (81390018033) 7157 RON
19 1 2 BRACKET BD 2,99X56X208 (81382407136) 2459 RON
20 1 2 HEXAGON THIN NUT M 12 VERZ. FORM B (86205055744) 446 RON
21 1 1 GUIDE BRACKET RD 10,7X588 (M 12) LANG (81392031096) 3018 RON
22 1 3 HEXAGON HEAD SCREW M 6X50 VERZ. (86102032428) 446 RON
23 1 1 GUIDE BAR BRACKET (81391018053) 1564 RON
24 1 1 MITRE FENCE UNTERTEIL (81010170008) 19236 RON
25 1 1 REMOVABLE TABLE SECTION (81381406667) 5926 RON
26 1 3 Countersunk screw (86132087995) Indisponibil Indisponibil
27 1 1 CAM PLATE BL 2,99XRD25/RDI 6,5 (81482408962) Indisponibil Indisponibil
28 1 1 SCALE 0,22X13X356 (81142678299) 7157 RON
29 1 5 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
30 1 3 Washer (86305002460) 446 RON
31 1 28 Hex head screw (86103001178) Indisponibil Indisponibil
32 1 1 HOSE CARRIER BL 2,99X100X160 (81482214092) 3018 RON
33 1 32 Flange nut (6209110995) 446 RON
34 1 10 HEX.SOCKET COUNTERS.HEAD SCREW M 8X25 VE (86132158523) 446 RON
35 1 1 STARKNOB SCREW M 8X23 (DIN 933) VERZINKT (87001144191) 105 RON
36 1 8 86172039616 - Indisponibil
37 1 1 Self-tapp. counters. screw (86174155800) 446 RON
38 1 6 Hex nut (86200002219) 446 RON
39 1 1 STOP RULE, LOWER BL 2,99 (N.ZCHNG) (81382409775) 955 RON
40 1 1 GLIDE PIECE (81381410559) 781 RON
41 1 1 CAGE NUT M 8 BLECHST?RKE 1,8-3,2 (86264139374) 781 RON
42 1 2 GUIDE PIECE QUERANSCHLAG (81381409879) 1340 RON
43 1 2 FASTENING BRACKET BL 2,99X66X440 (81382415252) 3689 RON
44 1 1 1382406849 - Indisponibil
45 1 2 Spacer sleeve (81485412910) 781 RON
46 1 2 Truss head screw (86110000659) 446 RON
47 1 1 FENCE GUIDE EXTRUSION 465 MM (81383412907) 13756 RON
50 1 1 FENCE GUIDE EXTRUSION 465 MM ET (81010170016) 19236 RON
51 1 2 CUP SQUARE NECK SCREW M 6X45 VERZ. (86110000624) 446 RON
52 1 1 SPACER PLATE BD 0,88X16X180 (81382410498) 781 RON
53 1 2 STARKNOB NUT M 6 (DIN 934) VERZINKT (87000025466) 781 RON
54 1 1 RIP FENCE (81010412842) 21361 RON
55 1 2 LAMELLAR PLUG 45X25 LAMELLENSTOPFEN (81381169541) 446 RON
56 1 1 BOLT WITH HEAD (86632111175) 105 RON
57 1 1 Clamping plate,BL 1X26X91,5 (81392205620) 781 RON
58 1 1 STARLOCK (87016050711) 446 RON
59 1 1 Cam lock lever (82390205484) 3018 RON
60 1 1 RIP FENCE ASSEMBL (81010186702) 46975 RON
61 1 1 RIP FENCE EXTRUSION 570 MM (81383158458) 15993 RON
62 1 1 RIP FENCE, PRE-ASSEMBLED (81010169514) 2848 RON
65 1 1 1010677668 - Indisponibil
66 1 1 CORRUGATED HOSE 1500 MM (81010170024) 13756 RON
67 1 2 END SLEEVE 3 RD 54,5/42,6X39 ABSAUGSCHL. (81381212374) 1340 RON
68 1 2 END SLEEVE JOINER (81381212943) 105 RON
72 1 2 STANCHION BL 1,5X118X844 LANG (81382407080) 5479 RON
74 1 1 Push stick (81394201630) 3018 RON
75 1 1 OPEN END SPANNER BL 3X43/15X145 SW 19X14 (81392038481) 1564 RON
76 1 1 Key (81492102829) 3689 RON
77 1 1 ALLEN HEXAGON KEY (89102016766) 781 RON
79 1 1 SLIDING HANDLE RED (81388680470) 15993 RON
90 1 2 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
91 1 1 COVER BL 1,5X128X793 (81382415287) 5479 RON
92 1 1 CHIPCASE BL 1,50X444X739 (81382415090) 13756 RON
93 1 1 DUST EXTRACTION PORT (81381409372) 488 RON
94 1 2 HEXAGON HEAD SCREW M 5X16 VERZ. (86103016850) 446 RON
95 1 1 GUIDE BRACKET BL 1,50X20X(133,5) TKHS 31 (81382678261) 105 RON
96 1 2 THREAD CUTTING SCREW A (86175174166) 446 RON
97 1 1 GUARD PLATE BL 0,88X217X138 (81382415260) 1340 RON
98 1 1 FLANGE NUT (86209002432) 105 RON
99 1 1 PRESSURE PLATE BL 2,99X80X60 (81382213749) 781 RON
100 1 1 RIVING KNIFE BL 2,20X190,9X257,5 (81482411726) 21361 RON
101 1 1 RIVING KNIFE CARRIER 60X80X7,5 (81390012027) 2124 RON
102 1 1 RIVING KNIFE CARRIER PLATE BL 2,99X120X1 (81382407020) 5926 RON
103 1 4 PRESSURE SPRING RDA 19X28X3,0 (87051005818) 781 RON
104 1 1 CUP SQUARE NECK SCREW (86110000691) 781 RON
105 1 1 1382677591 - Indisponibil
106 1 10 Washer (86305002486) 446 RON
107 1 1 CHIP CASE TKHS 315 EV (81382677605) 46975 RON
108 1 2 HEXAGON HEAD SCREW M 6X80 VERZ. (86103008717) 446 RON
109 1 2 Washer (86305002087) 446 RON
110 1 4 HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC (86103001356) 446 RON
111 1 3 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
112 1 1 Truss head screw (86110017942) 446 RON
113 1 1 LEVER BLADE BL 2X303X142 TKHS 315 EV (81382677648) 3018 RON
114 1 1 SWIVEL ARM PLATE BL 2,50X290X215 TKHS 31 (81382677656) 3018 RON
115 1 1 7006018305 - Indisponibil
116 1 3 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
117 1 1 BRACKE (81010188187) 2124 RON
118 1 1 Hex head screw (86103001135) 446 RON
119 1 2 SPACER SLEEVE DH 6X60 VERZ. (86442158558) 446 RON
121 1 1 SPINDLE, HEIGHT ADJUSTMENT RD 9,8X370/2X (81485415471) 190 RON
122 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
123 1 2 WASHER (86305002494) 446 RON
124 1 1 COLLAR NUT SW 24X60 / M 10 (81485415463) 488 RON
125 1 1 HANDWHEEL BL 2X RD 165 (81382411257) 3689 RON
126 1 1 CAP NUT M 10 VERZ. (86201002140) 446 RON
127 1 1 TURNING TANG (87004017433) 1340 RON
128 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121112564) 446 RON
129 1 2 CUP SQUARE NECK SCREW M 5X16 VERZ. (86110125036) 446 RON
130 1 1 SLIDE PLATE BL 1,5X48X137,5 (81382407110) 781 RON
131 1 4 NUT AND WASHER ASSEMBLY (86209018460) 446 RON
132 1 1 CUP SPRING (87053075104) 446 RON
141 1 1 Hex head screw (86103001267) 781 RON
142 1 1 BLADE COLLAR, OUTER D 276 (81330025316) Indisponibil Indisponibil
143 1 1 FEATHER KE A 6X4X45 (86721046190) 446 RON
144 1 1 BLADE COLLAR, INNER (81330025308) Indisponibil Indisponibil
145 1 2 CAPACITOR 50uF/400V 45,5X144 BOLZEN M 8 (88050011837) 13756 RON
146 1 1 FAN WING 120/13 WELLEND. 16 (81331408839) 105 RON
147 1 1 FAN COVER 120/13 (81331408847) 1340 RON
148 1 2 COUNTERSUNK HEAD TAPPING SCREW ST 4,2X25 (86174001950) 446 RON
149 1 1 CAP MOTORWELLE (81381083779) 446 RON
150 1 1 SWITCH KSK WNB UC110/M=22A/HAUPTSCH K300 (88133684370) 295725 RON
