Top » Piese de schimb » PIESE METABO » 0103153200 11

TKHS 315M/3,40 DNB - 0103153200 11 - 3 / 400V/50Hz
[0103153200 11]
TKHS 315M/3,40 DNB - 0103153200 11 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
TKHS 315M/3,40 DNB - 0103153200 11 - 3 / 400V/50Hz
Click pentru a mari
TKHS 315M/3,40 DNB - 0103153200 11 - 3 / 400V/50Hz
Click pentru a mari
TKHS 315M/3,40 DNB - 0103153200 11 - 3 / 400V/50Hz
Click pentru a mari

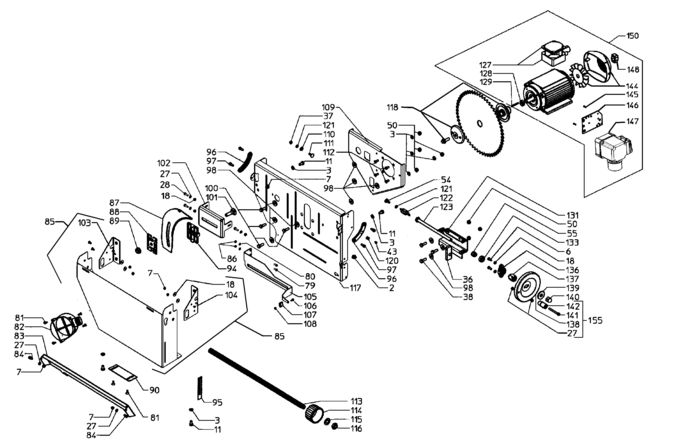

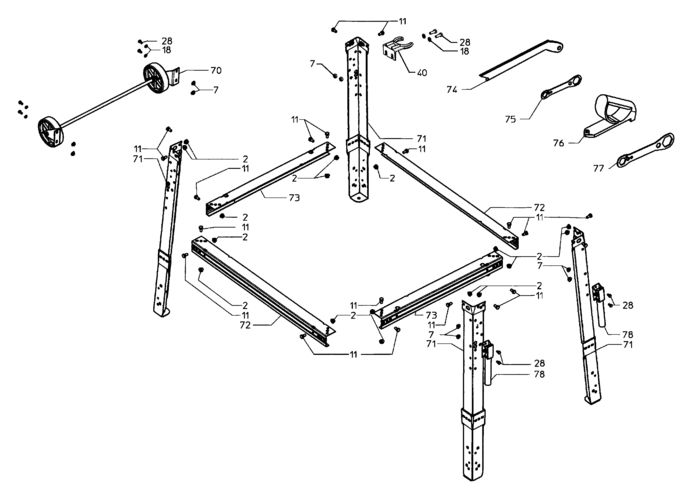

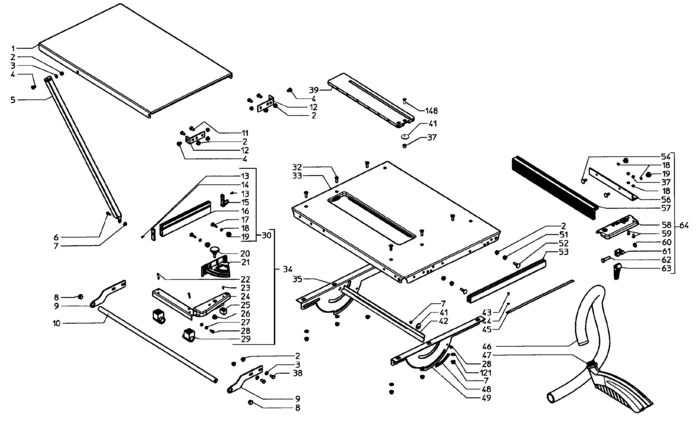

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 EXTENSION PLATE BL 2,00X572X832 TKHS315M (81382693309) 34448 RON
2 1 41 Flange nut (6209110995) 446 RON
3 1 23 Washer (86300016322) Indisponibil Indisponibil
4 1 4 BEARING BOLT (81395200611) 1340 RON
5 1 2 SUPPORT BL 1,00X70X764,5 TVL (81382678121) 8275 RON
6 1 2 HEX.SOCKET COUNTERS.HEAD SCREW M 6X10 VE (86132685086) 446 RON
7 1 25 Flange nut (86209114230) 446 RON
8 1 2 PLUG RD20/15-17X11,5 (81381693917) 669 RON
9 1 2 BRACKET, PRESSURE ROLLER BD 2,99X64X213 (81382693828) 4249 RON
10 1 1 CROSSCUT FENCE GUIDE ROD RD 20X2X820 TKH (81485693889) 955 RON
11 1 26 Hex head screw (86103001178) Indisponibil Indisponibil
12 1 2 ANGLE BRACKET BL 2,50X30X116 (81382693856) 5479 RON
13 1 2 COUNTERSUNK HEAD TAPPING SCREW (86174001942) 446 RON
14 1 1 End piece (82391091725) 781 RON
15 1 1 PLUG QUERANSCHLAG (81391200145) 1340 RON
16 1 1 FENCE EXTRUSION 300 MM (81393005315) 7157 RON
17 1 2 Truss head screw (86110076574) 446 RON
18 1 21 Washer Washer cod vechi 86300016365 (141151940) 446 RON
19 1 4 Knurled nut (86241125058) 781 RON
20 1 1 STARKNOB SCREW M 8X23 (DIN 933) VERZINKT (87001144191) 105 RON
21 1 1 STOP RULE (81390018033) 7157 RON
22 1 4 86172032905 - Indisponibil
23 1 1 Self-tapp. counters. screw (86174155800) 446 RON
24 1 1 STOP RULE, LOWER BL 2,99 (N.ZCHNG) (81382409775) 955 RON
25 1 1 GLIDE PIECE (81381410559) 781 RON
26 1 1 CAGE NUT M 8 BLECHST?RKE 1,8-3,2 (86264139374) 781 RON
27 1 6 Hex nut (86200002219) 446 RON
28 1 12 Hex head screw (86103015675) 446 RON
29 1 2 GUIDE PIECE QUERANSCHLAG (81381409879) 1340 RON
30 1 1 FENCE EXTRUSION 300 MM (81010017811) 955 RON
32 1 6 SLOTTED FLAT HEAD SCREW M 6X20 VERZ. (86130019585) 446 RON
33 1 1 TABLE PANEL BL 2,00X668X868 TKHS315M (81382693287) 33553 RON
34 1 1 MITRE FENCE ASSEMBLY ET (81010186710) 39481 RON
35 1 1 CHIP CASE GUIDE PANEL BL 2,00X163X440 HI (81482693691) 13756 RON
36 1 1 BRACKET FL 25X10X65 TKHS315M cod vechi 81482693179 (1482693179) Indisponibil Indisponibil
37 1 7 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
38 1 7 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
39 1 1 REMOVABLE TABLE SECTION (81381406667) 5926 RON
40 1 1 HOSE CARRIER TKHS 315 DD ET (81382721906) Indisponibil Indisponibil
41 1 2 CAM PLATE BL 2,99XRD25/RDI 6,5 (81482408962) Indisponibil Indisponibil
42 1 1 GUARD PLATE TKHS 315 D&D ET (81382721892) 2459 RON
43 1 1 Fillister head screw (86172028215) 446 RON
44 1 1 Washer (86305002460) 446 RON
45 1 1 SCALE 0,30X13X413 0,00-38,80 CM (81142694260) 2459 RON
46 1 1 CORRUGATED HOSE RDI 36,2X1500 PROFIL D (87854158010) 955 RON
47 1 1 1010692594 - Indisponibil
48 1 1 ARBOR TILT SCALE 0,25X13 47-0 GRAD (81142694464) 190 RON
49 1 1 CHIP CASE GUIDE PANEL BL 2,00X163X440 VO (81482693683) 13756 RON
50 1 7 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
51 1 2 Spacer sleeve (81485412910) 781 RON
52 1 2 Truss head screw (86110000659) 446 RON
53 1 1 FENCE GUIDE EXTRUSION 463 MM TKHS315M (81383694279) Indisponibil Indisponibil
54 1 3 Truss head screw (86110031325) 446 RON
55 1 1 SPACER SLEEVE RDI 12X7 (81485693161) 781 RON
56 1 1 Angle,KGT 501 (81383680260) 13756 RON
57 1 1 RIP FENCE EXTRUSION 570 MM (81383158458) 15993 RON
58 1 1 Locking element (81382680053) 19236 RON
59 1 2 Countersunk screw (86132087995) Indisponibil Indisponibil
60 1 1 STARLOCK (87016050711) 446 RON
61 1 1 Clamping plate,BL 1X26X91,5 (81392205620) 781 RON
62 1 1 BOLT WITH HEAD (86632111175) 105 RON
63 1 1 Cam lock lever (82390205484) 3018 RON
64 1 1 Parallel guide,KGT501/TKHS (81010680243) Indisponibil Indisponibil
70 1 1 WHEEL SET TKHS315M GUMMIBEREIFT (81010692586) 11519 RON
71 1 4 LEG BL 1,5X142X842 TKHS315M (81382693597) 11519 RON
72 1 2 STANCHION BL 1,5X118X844 LANG (81382407080) 5479 RON
73 1 2 STANCHION BL 1,5X118X644 KURZ / TKHS315M (81382693813) 5479 RON
74 1 1 Push stick (81394201630) 3018 RON
75 1 1 OPEN END SPANNER BL 3X43/15X145 SW 19X14 (81392038481) 1564 RON
76 1 1 SLIDING HANDLE RED (81388680470) 15993 RON
77 1 1 Key (81492102829) 3689 RON
78 1 1 HANDLE BAR (PAIR) TKHS315C/M (81010689330) 3689 RON
79 1 2 RAISED CHEESE HEAD SCREW (86123612815) 446 RON
80 1 2 WASHER A 5,3 VERZ. (86305002478) 446 RON
81 1 4 Fillister head screw (86172001830) 446 RON
82 1 1 DUST EXTRACTION PORT TKHS315C/M (81381689227) 3018 RON
83 1 1 COVER BL 1,50X116X613,5 TKHS315M (81382694160) 955 RON
84 1 2 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
85 1 1 CHIPCASE BL 2,00X350X600 TKHS315M (81382694119) 39481 RON
86 1 1 Cap screw (86127059207) 446 RON
87 1 1 1382693643 - Indisponibil
88 1 1 PRESSURE PLATE BL 2,99X80X60 (81382213749) 781 RON
89 1 1 FLANGE NUT (86209002432) 105 RON
90 1 1 SLIDE PLATE BL 1,5X48X137,5 (81382407110) 781 RON
94 1 1 RIVING KNIFE CARRIER VORNE TKHS315M (81380693255) 488 RON
95 1 1 SCALE 0,25X20X114 0-85 MM (81142694472) 1564 RON
96 1 2 SWIVEL SEGMENT TKHS-M (81380729756) 190 RON
97 1 4 Hex head screw (86103001135) 446 RON
98 1 8 Washer (86305002486) 446 RON
100 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
101 1 1 CUP SQUARE NECK SCREW M 12X50 VERZ. (86110019007) 781 RON
102 1 1 RIVING KNIFE CARRIER PLATE TKHS 315 D&D (81382721876) 5926 RON
103 1 3 ANGLE BRACKET TKHS 315 D&D ET (81482721857) 3689 RON
104 1 2 ANGLE BRACKET TKHS 315 D&D ET (81482721849) 3689 RON
105 1 1 POINTER, BLADE TILT TKHS 315 D&D E (81382721868) 190 RON
106 1 1 RAISED CHEESE HEAD SCREW (86123022619) 446 RON
107 1 1 POINTER RAL 3000-3003 (82391203523) 446 RON
108 1 1 HEXAGON NUT, PREV. TORQUE TYPE M 4 VERZ. (86202065412) 446 RON
109 1 1 MOTOR PLATE TKHS 315 D&D ET (81382721884) 5926 RON
110 1 1 CUP SPRING (87053081619) 446 RON
111 1 1 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
112 1 4 HEX.SOCKET COUNTERS.HEAD SCREW (86132661454) 446 RON
113 1 1 TOOTHED RACK 624 MM TKHS315M (81383694139) 15993 RON
114 1 1 Selector wheel (81391200390) 2459 RON
115 1 1 Washer (86300016713) 446 RON
116 1 1 HEXAGON THIN NUT (86205032396) 446 RON
117 1 1 CHIP CASE TKHS315 D&D (81382722031) 2848 RON
118 1 1 BLADE COLLAR ASSEMBLY ET (81010689240) 8275 RON
120 1 1 ANGLE POINTER BL 1,50X10X21,5 KGS303 (81482681987) 781 RON
121 1 8 Washer (86305002087) 446 RON
122 1 1 WING NUT M 6 (87005155791) 105 RON
123 1 1 HEXAGON HEAD SCREW M 12-10 207LANG VER (86103722010) Indisponibil Indisponibil
127 1 1 TERMINAL BOX ASSEMBLY TKHS 315M (81010726510) 5479 RON
128 1 1 SPACER BUSHING TKHS315 D&D (86442722020) 781 RON
129 1 1 FEATHER KE A 6X4X50 (86721041830) 446 RON
131 1 1 HEIGHT-ADJUSTMENT BL 2,99 TKHS315M (81382694038) 11519 RON
133 1 1 DEEP GROOVE BALL BEARING cod vechi 87100010180 (143115740) 2459 RON
136 1 1 BEARING SEA TKHS 315 D&D ET (81388721916) 1340 RON
137 1 1 TENSION NU TKHS 315 D&D ET (86260721923) 105 RON
138 1 1 HANDWHEEL BL 2X RD 165 (81382411257) 3689 RON
139 1 2 WASHER B 13 VERZ. (86305002508) 446 RON
140 1 1 CAP NUT M 12 VERZ. (86201002158) 781 RON
141 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121112564) 446 RON
142 1 1 TURNING TANG (87004017433) 1340 RON
144 1 1 FAN WING+FAN COVER TKHS 315 D&D ET (81010722000) 3689 RON
145 1 2 HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC (86103001356) 446 RON
146 1 1 SWITCH PLATE BD 2,00X85X125,5 (81382407063) 105 RON
147 1 1 SWITCH SSK 3,4/4,2 DNB TKHS 315 D&D (88132721980) 19236 RON
148 1 1 CAP MOTORWELLE (81381083779) 446 RON
150 1 1 MOTOR, CIRCULAR SAW BENCH T 3,40 DNB 40 (81010721942) 171574 RON
155 1 1 HANDWHEEL KPL. TKHS315M (81010702140) 5926 RON
