Top » Piese de schimb » PIESE METABO » 0103152038 12

TKHS 315C/2,00 WNB - 0103152038 12 - GB 230V
[0103152038 12]
TKHS 315C/2,00 WNB - 0103152038 12 - GB 230V
Click pentru a mari
Imagini suplimentare
TKHS 315C/2,00 WNB - 0103152038 12 - GB 230V
Click pentru a mari
TKHS 315C/2,00 WNB - 0103152038 12 - GB 230V
Click pentru a mari
TKHS 315C/2,00 WNB - 0103152038 12 - GB 230V
Click pentru a mari

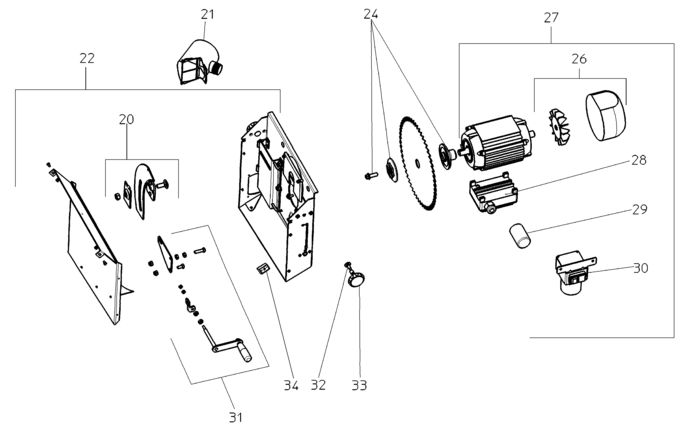

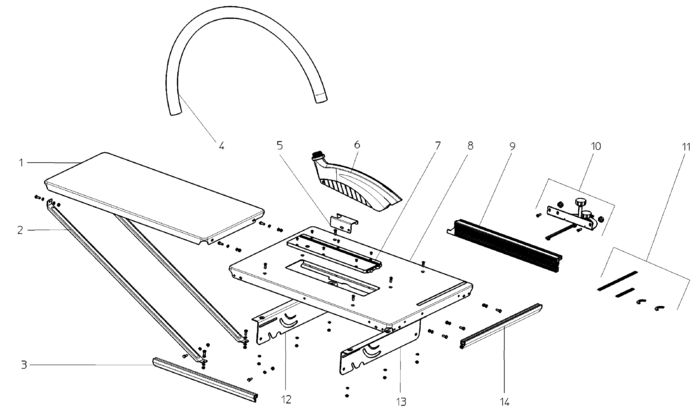

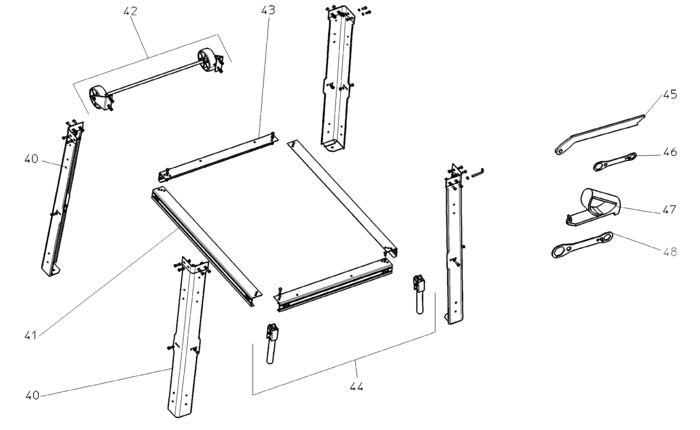

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 EXTENSION PLATE 800X400 ET (81382689085) 21361 RON
2 1 2 SOPPORT ET (81382689093) 5926 RON
3 1 1 GUIDE EXTRUSION LINKS /ET (81383689100) 3689 RON
4 1 1 CORRUGATED HOSE RDI 36,2X2000 PROFIL D (87854145449) 13756 RON
5 1 1 HOSE CARRIER ET (81382689123) 105 RON
6 1 1 SAW BLADE GUARD W/SUCTION PORT TKHS315C (81010738543) 4249 RON
7 1 1 TABLE INSERT ET (81381689138) Indisponibil Indisponibil
8 1 1 TABLE PANEL ET (81382689140) 34448 RON
9 1 1 FENCE EXTRUSION ET (81383689151) 8275 RON
10 1 1 MITRE FENCE ET (81010689160) Indisponibil Indisponibil
11 1 1 SCALE SET 4-TLG /ET (81010689178) 781 RON
12 1 1 FASTENING BRACKET, REAR ET (81382689182) 488 RON
13 1 1 FASTENING BRACKET, FRONT ET (81382689190) 488 RON
14 1 1 GUIDE EXTRUSION VORNE /ET (81383689208) 3689 RON
20 1 1 RIVING KNIFE WITH CARRIER ET (81010689216) Indisponibil Indisponibil
21 1 1 DUST EXTRACTION PORT TKHS315C/M (81381689227) 3018 RON
22 1 1 CHIP CASE ASSEMBLY ET (81010689232) 54357 RON
24 1 1 BLADE COLLAR ASSEMBLY ET (81010689240) 8275 RON
26 1 1 FAN WING+FAN COVER ET (81010689259) 488 RON
27 1 1 MOTOR, CIRCULAR SAW BENCH TK 2,00 WNB 2 (81010689569) 171574 RON
28 1 1 TERMINAL BOX ASSEMBLY ET (81010689067) 3018 RON
29 1 1 CAPACITOR 20uF/400V 45X67 KABEL 160 ABGE (88050033539) 7157 RON
30 1 1 SWITCH KSK WNB 230V 50Hz 10A (GB) /ET (88133689584) 30980 RON
31 1 1 CRANK, HEIGHT ADJUSTEMENT ET (81010689283) Indisponibil Indisponibil
32 1 2 CUP SQUARE NECK SCREW M 8X16 VERZ. (86110000632) 446 RON
33 1 2 STARKNOB NUT M 8 (DIN 934) VERZINKT (87000028937) 105 RON
34 1 1 THREADED PIECE FL 40X10X20 TKHS315C (81482726336) 7157 RON
40 1 4 LEG ET (81382689298) 19236 RON
41 1 2 STANCHION R/L ET (81382689301) 10288 RON
42 1 1 WHEEL SET TKHS315C ET (81010689313) 10288 RON
43 1 1 STANCHION V/H ET (81382689328) 8275 RON
44 1 1 HANDLE BAR (PAIR) TKHS315C/M (81010689330) 3689 RON
45 1 1 Push stick (81394201630) 3018 RON
46 1 1 OPEN END SPANNER SW 19-13 (81382689395) 105 RON
47 1 1 SLIDING HANDLE RED (81388680470) 15993 RON
48 1 1 Key (81492102829) 3689 RON
