Top » Piese de schimb » PIESE METABO » 0920053955 10

TABLE SIDE EXTENSION MULTI 180 - 0920053955 10 - -
[0920053955 10]
TABLE SIDE EXTENSION MULTI 180 - 0920053955 10 - -
Click pentru a mari
Imagini suplimentare
TABLE SIDE EXTENSION MULTI 180 - 0920053955 10 - -
Click pentru a mari
TABLE SIDE EXTENSION MULTI 180 - 0920053955 10 - -
Click pentru a mari

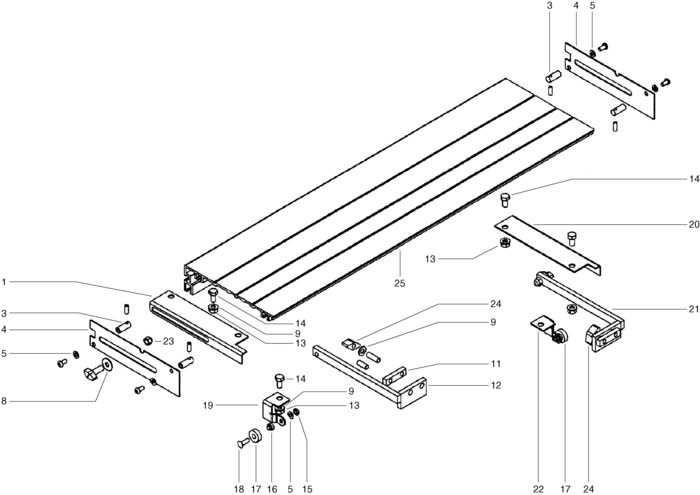

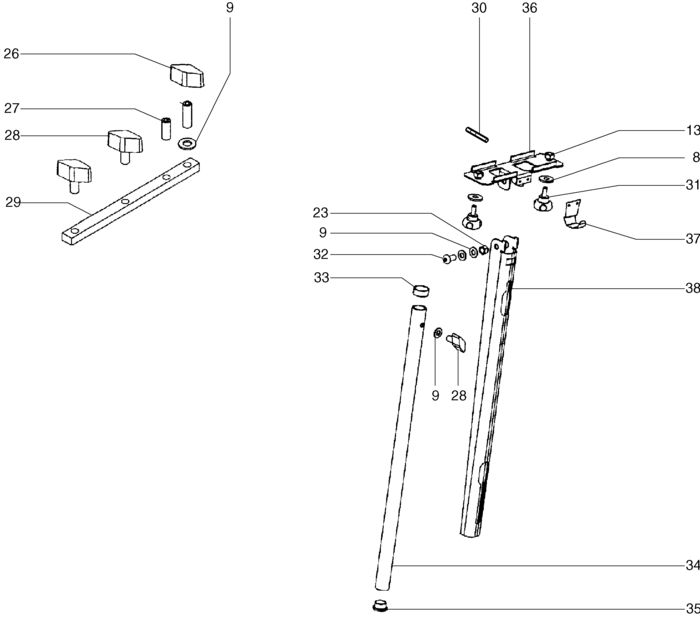

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BRACKET ET (81382666468) 15993 RON
3 1 4 GUIDE SLEEVE ET (81385666477) 1564 RON
4 1 2 SUPPORT ET (81382666484) 19236 RON
5 1 6 WASHER 6X12X1,2 ET (81388666753) 105 RON
8 1 4 WASHER 8X22X2,5 ET (81388666761) Indisponibil Indisponibil
9 1 5 WASHER 8X16X1,5 ET (81388666770) 105 RON
11 1 2 GUIDE RAIL ET (81382666522) 21361 RON
12 1 1 CARRIER LINKS /ET (81380666533) 54357 RON
13 1 4 HEXAGON NUT (86200002235) Indisponibil Indisponibil
14 1 4 Hex head screw (86103001178) Indisponibil Indisponibil
15 1 2 HEXAGON THIN NUT (86205028046) 446 RON
16 1 2 BEARING BUSH ET (81385666540) 190 RON
17 1 2 DEEP GROOVE BALL BEARING ET (87100667635) 10288 RON
18 1 2 Hex head screw (86103001135) 446 RON
19 1 1 BRACKET RECHTS /ET (81380666568) 19236 RON
20 1 1 BRACKET ET (81382666573) 15993 RON
21 1 1 CARRIER RECHTS /ET (81380666592) 54357 RON
22 1 1 BRACKET LINKS /ET (81380666584) 19236 RON
23 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
24 1 2 7005110119 - Indisponibil
25 1 1 TABLE EXTRUSION ET (81383666518) 137236 RON
26 1 1 Thumb-nut (87005135529) 781 RON
28 1 2 THUMB SCREW RED M 8X18 (86150421509) 105 RON
29 1 1 SLIDE WASHER ET (81380666789) 2848 RON
30 1 2 GUIDE PIN ET (81382666808) 488 RON
31 1 2 6150663324 - Indisponibil
32 1 2 RAISED CHEESE HEAD SCREW M 8X16 ET (86123666885) 105 RON
33 1 1 PLUG D 23 ET (81388666842) 1564 RON
34 1 1 SUPPORT, LOWER ET (81382666824) 24046 RON
35 1 1 PLUG D 17 ET (81388666850) 446 RON
36 1 1 SUPPORT ET (81380666738) 21361 RON
37 1 1 TABLE CLAMP ET (81382666867) 10288 RON
38 1 1 SUPPORT, UPPER ET (81382666832) 26730 RON
