Table SIDE EXTENSION KGT LINKS - 0910009176 11 - -
[0910009176 11]
Table SIDE EXTENSION KGT LINKS - 0910009176 11 - -
Click pentru a mari
Imagini suplimentare
Table SIDE EXTENSION KGT LINKS - 0910009176 11 - -
Click pentru a mari

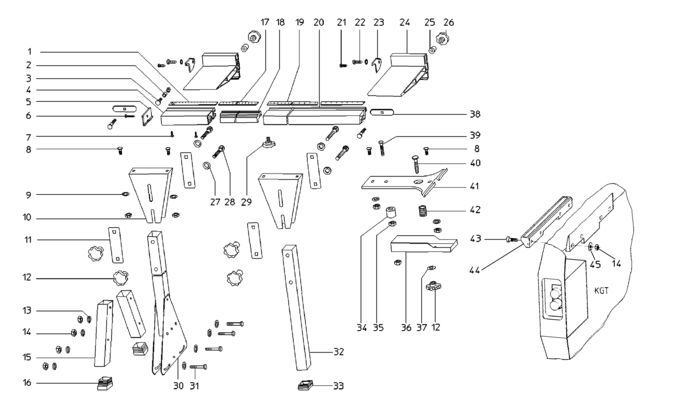

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCALE 0,165X13X140 173,75-185,50 CM (81142209310) 2124 RON
2 1 1 SPACER BUSHING DI 6,5X DA 10,5X8 (81391070160) 446 RON
3 1 1 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
4 1 1 EXTENSION 140 MM (81393201645) 7157 RON
5 1 1 END CAP (82391203710) 781 RON
6 1 1 Self-tapp. counters. screw (86174155800) 446 RON
7 1 2 CROSS REC. SELF-DRILLING SCREW 3,5X13 VE (86144027270) 446 RON
8 1 4 CUP SQUARE NECK SCREW (86110000594) 446 RON
9 1 8 Washer Washer cod vechi 86300016365 (141151940) 446 RON
10 1 2 LEG SUPPORT BL 2,00X120X320,5 (81492057106) 488 RON
11 1 4 STEEL PLATE BL 2X30X104 (81492057343) 781 RON
12 1 5 STARKNOB NUT M 8 (DIN 934) VERZINKT (87000028937) 105 RON
13 1 8 CUP SPRING (87053081619) 446 RON
14 1 14 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
15 1 2 SPREADING LEG 4KT 30X30X1,5X600 (81392204659) 955 RON
16 1 2 FOOT (81381726173) 1340 RON
17 1 1 SCALE 0,165X13X1312 185,00-316,20 CM (81142209329) 13756 RON
18 1 1 EXTENSION EXTRUSION L=1520 (81393201610) 24046 RON
19 1 1 SCALE 0,165X13X1410 32,75-173,70 CM (81142209337) 15993 RON
20 1 1 MITRE FENCE EXTRUSION L=1410 (81393204296) 41718 RON
21 1 2 Fillister head screw (86172016683) 446 RON
22 1 2 HEXAGON HEAD TAPPING SCREW B 6,3X19 VERZ (86171059656) 446 RON
23 1 2 BACKSTOP PLATE BL 2,99X37X45 (81492057351) 781 RON
24 1 2 FENCE EXTRUSION MIT BOHRUNG (81393203702) 13756 RON
25 1 1 SPACER SLEEVE RD 15/6X18 (86442025779) Indisponibil Indisponibil
26 1 2 STARKNOB NUT RD40/M 6 (DIN 934) VERZINKT (87000025458) 781 RON
27 1 4 Washer (86300016705) Indisponibil Indisponibil
28 1 4 CUP SQUARE NECK SCREW M 8X50 VERZ. (86110080245) 446 RON
29 1 1 STARKNOB SCREW M 6X20 (DIN 933) VERZINKT (87001124212) 105 RON
31 1 4 HEXAGON HEAD SCREW (86103000430) 446 RON
32 1 1 LEG 4KT 30X30X1,5X820 (81392203733) 955 RON
33 1 1 Lamellar plug black (81391059264) 446 RON
34 1 1 SPACER SLEEVE RD 15/6X18 (86442025779) Indisponibil Indisponibil
35 1 1 Hex nut (86200002219) 446 RON
36 1 1 TENSION PLATE BL 2X92X194 (81392203466) 4249 RON
37 1 1 Washer (86305002486) 446 RON
38 1 2 GUIDE PLATE, FLIPSTOP (81392201587) 446 RON
39 1 3 CUP SQUARE NECK SCREW M 6X40 VERZ. (86110000616) 446 RON
40 1 1 Truss head screw (86110059297) 446 RON
41 1 1 CONNECTOR PLATE BL 2,99X170X219 (81392203490) 7157 RON
42 1 1 PRESSURE SPRING RDI 11X1,2X36 (87051204055) 781 RON
43 1 4 Hex head screw (86103001135) 446 RON
44 1 1 BRACKET, TABLE EXTENSION 22X206 (81380208764) 5926 RON
45 1 4 Washer (86305002087) 446 RON
