Top » Piese de schimb » PIESE METABO » 31881000

Table rear extension - 31881000 - -
[31881000]
Table rear extension - 31881000 - -
Click pentru a mari
Imagini suplimentare
Table rear extension - 31881000 - -
Click pentru a mari

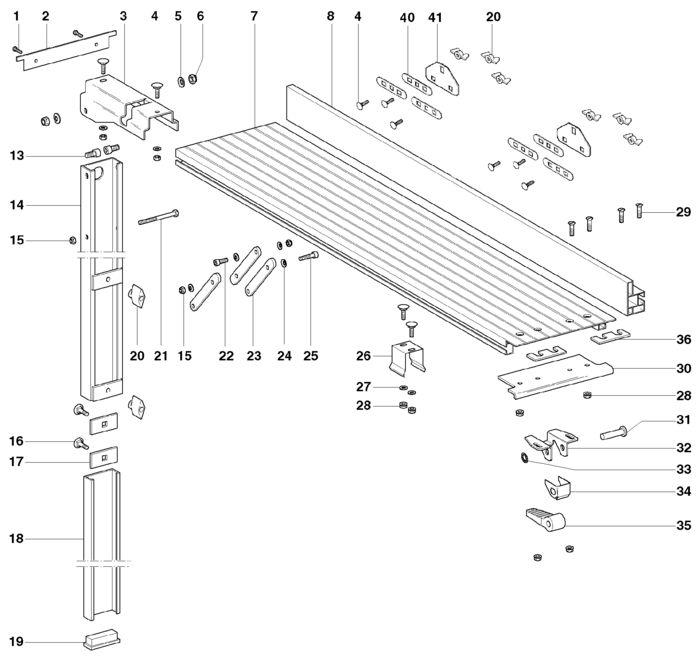

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 Self-tap. fill. h. screw (141119810) 781 RON
2 1 1 HEAD PLATE (341147310) 3018 RON
3 1 1 JOINT PLATE, SUPPORT LEG (339130660) 4249 RON
4 1 10 Truss head screw (141111530) 781 RON
5 1 2 Washer (141151340) 446 RON
6 1 2 Hexagonal lock nut (141130950) 446 RON
7 1 1 PANEL, TABLE EXTENSION (341147330) 59166 RON
8 1 1 AUXILIARY FENCE EXTRUSION (341147320) 19236 RON
13 1 2 Cap screw (141113990) 781 RON
14 1 1 SUPPORT LEG, UPPER (339130690) 18341 RON
15 1 3 Hexagonal lock nut (141130650) 781 RON
16 1 2 Truss head screw (141111540) 781 RON
17 1 2 CLAMPING PLATE (339130650) 781 RON
18 1 1 SUPPORT LEG, LOWER (339130710) 5926 RON
19 1 1 LAMELLAR PLUG (344095960) 446 RON
20 1 8 341100970 - Indisponibil
21 1 1 Hexagon head screw (141122690) 446 RON
22 1 1 Cap screw (141113850) 781 RON
23 1 3 JOINT RAIL (339130720) 105 RON
24 1 4 141155660 - Indisponibil
25 1 1 Cap screw (141113870) 781 RON
26 1 1 STOP SPRING (342002940) 3689 RON
27 1 2 Washer (141150130) 446 RON
28 1 8 341101870 - Indisponibil
29 1 4 Countersunk screw (141114670) 781 RON
30 1 1 CLAMPING PIECE (339130670) 15993 RON
31 1 1 BOLT WITH HEAD (341514860) 781 RON
32 1 1 LEVER BEARING (339130620) 7157 RON
33 1 1 STARLOCK WITHOUT CAP (339130730) 446 RON
34 1 1 CLAMPING PLATE (339130680) 446 RON
35 1 1 CAM-LOCK LEVER (315415470) 2124 RON
36 1 4 Spacer sheet (339131990) 446 RON
40 1 6 GUIDE PLATE, FLIPSTOP BL 0,88X16 (339130320) 446 RON
41 1 2 339132260 - Indisponibil
