Top » Piese de schimb » PIESE METABO » 0910061917 10

Table REAR EXTENSION 3000 MM R-KGS305 - 0910061917 10 - -
[0910061917 10]
Table REAR EXTENSION 3000 MM R-KGS305 - 0910061917 10 - -
Click pentru a mari
Imagini suplimentare
Table REAR EXTENSION 3000 MM R-KGS305 - 0910061917 10 - -
Click pentru a mari

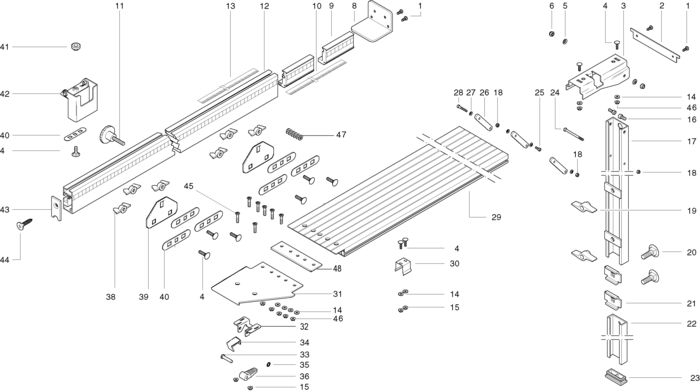

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 Fillister head screw (86172001830) 446 RON
2 1 1 HEAD PLATE BL 2,00X27X198 TISCHVERL?NGER (81482222605) 3018 RON
3 1 1 JOINT PLATE, SUPPORT LEG BL 2,50X160,5X1 (81482222664) 4249 RON
4 1 11 CUP SQUARE NECK SCREW (86110000594) 446 RON
5 1 2 Washer (86300016322) Indisponibil Indisponibil
6 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
8 1 1 ANGLE BRACKET BL 2,00X70X100 (81382689697) 3689 RON
9 1 1 EXTENSION EXTRUSION L=1400 (81383689674) 18341 RON
10 1 1 SCALE 0,20X13X1400 167,75-300,00-167,25 (81142684710) 13756 RON
11 1 1 STARKNOB SCREW M 6X20 (DIN 933) VERZINKT (87001124212) 105 RON
12 1 1 MITRE FENCE EXTRUSION L=1410 (81393204296) 41718 RON
13 1 1 SCALE 0,20X13X1410 26,75-167,75-26,25 (81142684701) 13756 RON
14 1 9 Washer (86305002087) 446 RON
15 1 4 Flange nut (86209114230) 446 RON
16 1 2 HEXAGON SOCKET HEAD CAP SCREW M 8X16 VER (86121000790) 446 RON
17 1 1 SUPPORT LEG, UPPER (81010222687) 26730 RON
18 1 3 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
19 1 2 WING NUT M 6 (87005155791) 105 RON
20 1 2 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
21 1 2 CLAMPING PLATE BL 2,99X39X50 ST?TZBEIN (81482222729) 781 RON
22 1 1 SUPPORT LEG, LOWER BL 1,5X113X490 (81382222713) 8275 RON
23 1 1 LAMELLAR PLUG 60X25 VL SCHWARZ (81391019971) 781 RON
24 1 1 HEXAGON HEAD SCREW M 6X70 VERZ. (86102167587) 446 RON
25 1 1 Cap screw (86121023081) 446 RON
26 1 3 JOINT RAIL BD 2,99X24X122 (81482222672) 105 RON
27 1 4 CUP SPRING (87053081619) 446 RON
28 1 1 HEXAGON SOCKET HEAD CAP SCREW M 6X20 VER (86121000758) 446 RON
29 1 1 PANEL, TABLE EXTENSION 1000 MM TVL-KGS (81383685075) 59166 RON
30 1 1 STOP SPRING (87052222758) 3689 RON
31 1 1 CLAMPING PIECE BL 2,99X190X190 TVL-RECHT (81382717224) 11519 RON
32 1 1 LEVER BEARING BL 2,99X60X112 TVL-KGS303 (81482684749) 8275 RON
33 1 1 BOLT WITH HEAD (86632111175) 105 RON
34 1 1 CLAMPING PLATE BL 2,99X27X88 TVL-RECHTS- (81482717205) 4249 RON
35 1 1 STARLOCK (87016050711) 446 RON
36 1 1 Cam lock lever (82390205484) 3018 RON
38 1 6 WING NUT M 6 GEW.-EINSATZ VERZINKT (87005125213) 446 RON
39 1 2 FENCE PLATE BL 2,99X65X110 (81382690121) 4249 RON
40 1 7 GUIDE PLATE, FLIPSTOP (81392201587) 446 RON
41 1 1 Knurled nut (86241125058) 781 RON
42 1 1 FLIPSTOP MIT KLAPPE (82010200388) 2459 RON
43 1 1 END PIECE (82391203760) 781 RON
44 1 1 Self-tapp. counters. screw (86174155800) 446 RON
45 1 5 SLOTTED FLAT HEAD SCREW M 6X20 VERZ. (86130019585) 446 RON
46 1 7 Hex nut (86200002219) 446 RON
47 1 6 SHIM RING (86306169970) 446 RON
48 1 1 ZWISCHENBLECH TVL-KGS305 BL 2,00X70X162 (81382718603) 2459 RON
