Top » Piese de schimb » PIESE METABO » 0910061895 10

Table REAR EXTENSION 1600MM R-KGS305 - 0910061895 10 - -
[0910061895 10]
Table REAR EXTENSION 1600MM R-KGS305 - 0910061895 10 - -
Click pentru a mari
Imagini suplimentare
Table REAR EXTENSION 1600MM R-KGS305 - 0910061895 10 - -
Click pentru a mari

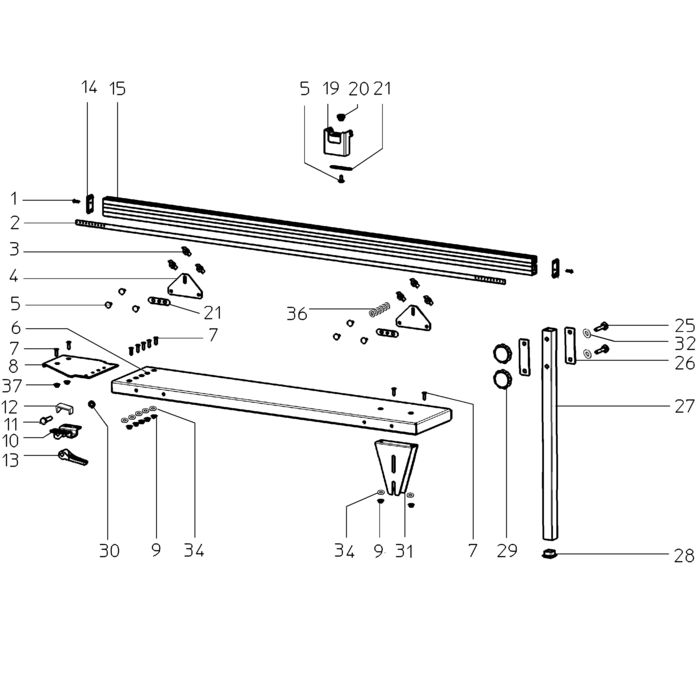

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 Self-tapp. counters. screw (86174155800) 446 RON
2 1 1 SCALE 0,20X13X1410 26,75-167,75-26,25 (81142684701) 13756 RON
3 1 6 WING NUT M 6 GEW.-EINSATZ VERZINKT (87005125213) 446 RON
4 1 2 FENCE PLATE BL 2,99X65X110 (81382690121) 4249 RON
5 1 7 CUP SQUARE NECK SCREW (86110000594) 446 RON
6 1 1 EXTRUSION,TABLE REAR EXTENSION BL 2,00X2 (81382690008) 34448 RON
7 1 9 SLOTTED FLAT HEAD SCREW M 6X20 VERZ. (86130019585) 446 RON
8 1 1 CLAMPING PIECE BL 2,99X190X190 TVL-RECHT (81382717224) 11519 RON
9 1 7 Hex nut (86200002219) 446 RON
10 1 1 LEVER BEARING BL 2,99X60X112 TVL-KGS303 (81482684749) 8275 RON
11 1 1 BOLT WITH HEAD (86632111175) 105 RON
12 1 1 CLAMPING PLATE BL 2,99X27X88 TVL-RECHTS- (81482717205) 4249 RON
13 1 1 Cam lock lever (82390205484) 3018 RON
14 1 2 END PIECE (82391203760) 781 RON
15 1 1 MITRE FENCE EXTRUSION L=1410 (81393204296) 41718 RON
19 1 1 FLIPSTOP MIT KLAPPE (82010200388) 2459 RON
20 1 1 Knurled nut (86241125058) 781 RON
21 1 3 GUIDE PLATE, FLIPSTOP (81392201587) 446 RON
25 1 2 CUP SQUARE NECK SCREW M 8X50 VERZ. (86110080245) 446 RON
26 1 2 STEEL PLATE BL 2X30X104 (81492057343) 781 RON
27 1 1 LEG 4KT 30X30X1,5X885 (81382690199) 11519 RON
28 1 1 Lamellar plug black (81391059264) 446 RON
29 1 2 STARKNOB NUT M 8 (DIN 934) VERZINKT (87000028937) 105 RON
30 1 1 STARLOCK (87016050711) 446 RON
31 1 1 LEG SUPPORT BL 2,00X120X320,5 (81492057106) 488 RON
32 1 2 Washer (86300016705) Indisponibil Indisponibil
34 1 7 Washer (86305002087) 446 RON
36 1 6 SHIM RING (86306169970) 446 RON
37 1 2 Flange nut (86209114230) 446 RON
