Top » Piese de schimb » PIESE METABO » 0910003500 10

Table EXTENSION KGS LINKS TELESKOPVERL. - 0910003500 10 - -
[0910003500 10]
Table EXTENSION KGS LINKS TELESKOPVERL. - 0910003500 10 - -
Click pentru a mari
Imagini suplimentare
Table EXTENSION KGS LINKS TELESKOPVERL. - 0910003500 10 - -
Click pentru a mari

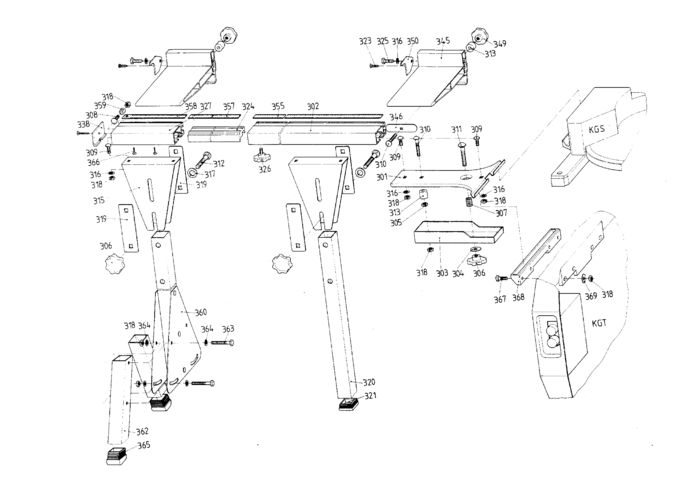

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
301 1 1 CONNECTOR PLATE BL 2,99X170X219 (81392203490) 7157 RON
302 1 1 MITRE FENCE EXTRUSION L=1410 (81393204296) 41718 RON
303 1 1 TENSION PLATE BL 2X92X194 (81392203466) 4249 RON
304 1 1 Washer (86305002486) 446 RON
305 1 1 Hex nut (86200002219) 446 RON
306 1 1 STARKNOB NUT M 8 (DIN 934) VERZINKT (87000028937) 105 RON
307 1 1 PRESSURE SPRING RDI 11X1,2X36 (87051204055) 781 RON
308 1 1 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
309 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
310 1 1 CUP SQUARE NECK SCREW M 6X40 VERZ. (86110000616) 446 RON
311 1 1 Truss head screw (86110059297) 446 RON
312 1 1 CUP SQUARE NECK SCREW M 8X50 VERZ. (86110080245) 446 RON
313 1 1 SPACER SLEEVE RD 15/6X18 (86442025779) Indisponibil Indisponibil
315 1 1 LEG SUPPORT BL 2,00X120X320,5 (81492057106) 488 RON
316 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
317 1 1 Washer (86300016705) Indisponibil Indisponibil
318 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
319 1 1 STEEL PLATE BL 2X30X104 (81492057343) 781 RON
320 1 1 LEG 4KT 30X30X1,5X820 (81392203733) 955 RON
321 1 1 Lamellar plug black (81391059264) 446 RON
323 1 1 Fillister head screw (86172016683) 446 RON
324 1 1 EXTENSION EXTRUSION L=1520 (81393201610) 24046 RON
325 1 1 HEXAGON HEAD TAPPING SCREW B 6,3X19 VERZ (86171059656) 446 RON
326 1 1 STARKNOB SCREW M 6X20 (DIN 933) VERZINKT (87001124212) 105 RON
327 1 1 EXTENSION 140 MM (81393201645) 7157 RON
338 1 1 END CAP (82391203710) 781 RON
345 1 1 FENCE EXTRUSION MIT BOHRUNG (81393203702) 13756 RON
346 1 1 GUIDE PLATE, FLIPSTOP (81392201587) 446 RON
349 1 1 STARKNOB NUT RD40/M 6 (DIN 934) VERZINKT (87000025458) 781 RON
350 1 1 BACKSTOP PLATE BL 2,99X37X45 (81492057351) 781 RON
355 1 1 SCALE 0,165X13X1410 24,15-165,15 CM (81142203576) 15993 RON
357 1 1 SCALE 0,165X13X1312 177,00-308,20 CM (81142203592) 13756 RON
358 1 1 1142203584 - Indisponibil
359 1 1 SPACER BUSHING DI 6,5X DA 10,5X8 (81391070160) 446 RON
360 1 1 1010000030 - Indisponibil
362 1 1 SPREADING LEG 4KT 30X30X1,5X600 (81392204659) 955 RON
363 1 1 HEXAGON HEAD SCREW (86103000430) 446 RON
364 1 1 CUP SPRING (87053081619) 446 RON
365 1 1 FOOT (81381726173) 1340 RON
366 1 1 CROSS REC. SELF-DRILLING SCREW 3,5X13 VE (86144027270) 446 RON
367 1 1 Hex head screw (86103001135) 446 RON
368 1 1 BRACKET, TABLE EXTENSION 22X206 (81380208764) 5926 RON
369 1 1 Washer (86305002087) 446 RON
