Top » Piese de schimb » PIESE METABO » 00325000

SXE 325 Intec - 00325000 - EU 230V
[00325000]
SXE 325 Intec - 00325000 - EU 230V
Click pentru a mari
Imagini suplimentare
SXE 325 Intec - 00325000 - EU 230V
Click pentru a mari

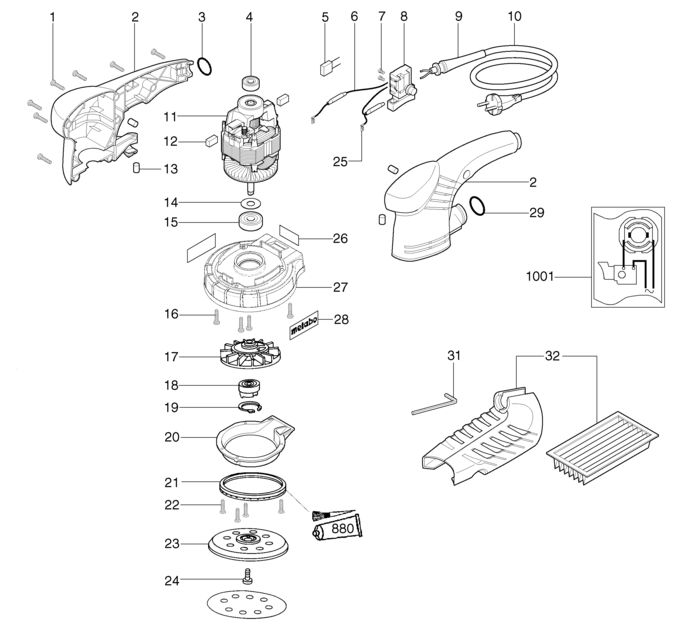

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 7 Self-tap. fill. h. screw (141116020) 781 RON
2 1 1 Housing w.cover w/o flange (343393040) 5926 RON
3 1 1 O-ring (143192260) 781 RON
4 1 1 Ball bearing, 8x22x7 (143114740) 488 RON
5 1 1 Condenser (343254370) 446 RON
6 1 1 Choke (343254360) 105 RON
7 1 2 Fillister head screw (141116970) 781 RON
8 1 1 Electronic switch (343408310) 13756 RON
9 1 1 Cable sleeve (344101140) 105 RON
10 1 1 Cable with plug (344485880) 5479 RON
11 1 1 Motor 230V compl. (317003390) 34448 RON
12 1 1 Brush set (316035030) 4249 RON
13 1 4 Rubber plug (344091420) 446 RON
14 1 1 Washer (141156000) Indisponibil Indisponibil
15 1 1 Ball bearing, 15x32x9 (143112030) 8275 RON
16 1 4 Fill. head screw(DIN 7985) (141120070) 446 RON
17 1 1 Fan (330001730) 11519 RON
18 1 1 Carrier cpl. (316021240) 10288 RON
19 1 1 Ring (141180710) 1340 RON
20 1 1 Brakering holder (343392440) 1340 RON
21 1 1 Brake ring (344097450) 2124 RON
22 1 4 Self-tapp. counters. screw (141123420) 446 RON
23 1 1 Backing plate cpl. (339160410) Indisponibil Indisponibil
24 1 1 Cap screw (141122300) 446 RON
25 1 1 Choke (343254350) 105 RON
26 1 1 NAME PLATE (338047520) 446 RON
27 1 1 Bearing flange (315416130) 2124 RON
28 1 2 Metabo label (338120380) 446 RON
29 1 1 O-ring (143194110) 446 RON
31 1 1 Hexagonal key (344161530) 781 RON
32 1 1 Dust collector cartridge (316040160) 7157 RON
880 1 1 Grease 50Gr 1,8oz (344131030) 488 RON
1001 1 1 338504480 - Indisponibil
