Top » Piese de schimb » PIESE METABO » 31510000

Surface planing and thicknessing device - 31510000 - -
[31510000]
Surface planing and thicknessing device - 31510000 - -
Click pentru a mari
Imagini suplimentare
Surface planing and thicknessing device - 31510000 - -
Click pentru a mari

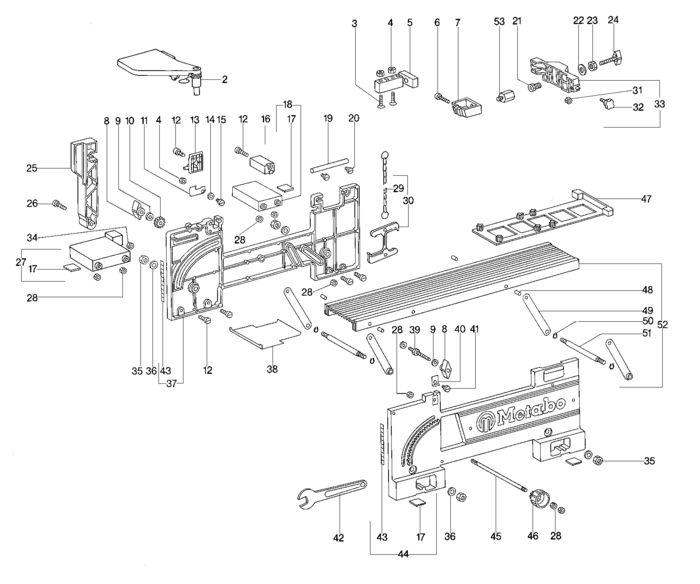

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 Hand guard (316011470) 955 RON
3 1 2 Countersunk screw (141112080) 446 RON
4 1 3 Hexagonal nut (141130070) 446 RON
5 1 1 343366340 - Indisponibil
6 1 1 Cap screw (141111240) 781 RON
7 1 1 Adaptor (343366050) 3689 RON
8 1 2 341100970 - Indisponibil
9 1 3 Washer Washer cod vechi 86300016365 (141151940) 446 RON
10 1 1 Pinion (343365960) 2459 RON
11 1 1 Lock spring (339125650) 1564 RON
12 1 5 Cap screw (141111320) 446 RON
13 1 1 316021360 - Indisponibil
14 1 1 Washer (141150020) 446 RON
15 1 1 Cap screw (141111060) 446 RON
16 1 1 Support (343366020) 2124 RON
17 1 4 Adlusive rubber (344093540) 105 RON
18 1 1 Supporting foot cpl. (316021350) 3689 RON
19 1 1 Clamping angle axle (341603110) 1340 RON
20 1 2 Tap tite screw M4x10 (341702310) 781 RON
21 1 1 Female screw (341702320) 2124 RON
22 1 1 Washer (141150050) 446 RON
23 1 1 Plain hexagon nut (141131150) 446 RON
24 1 1 Thumbscrew (341110800) 105 RON
25 1 1 Supporting lever (343366010) 5479 RON
26 1 1 Cap screw (141111340) 446 RON
27 1 1 Supporting foot cpl. (316021340) 955 RON
28 1 8 Hexagonal nut (141130100) 446 RON
29 1 1 Chain (341141350) 1564 RON
30 1 1 Locking strap, cpl. (316014010) 488 RON
31 1 1 Hexagonal nut (141130090) 446 RON
32 1 1 Star knob (341112160) 1340 RON
33 1 1 Clamping bridge (316021390) 955 RON
34 1 1 Hexagonal lock nut (141130650) 781 RON
35 1 4 Hexagonal nut (141131010) 446 RON
36 1 4 Washer (141151340) 446 RON
37 1 1 Side panel left (316021370) 26730 RON
38 1 1 Pressure sheet (339125640) 3018 RON
39 1 1 Supporting bolt (341514180) 3018 RON
40 1 1 Compensating Angle (339125660) 781 RON
41 1 1 Cap screw (141111310) 446 RON
42 1 1 Spanner (344145580) 190 RON
43 1 1 Scale (338107770) 190 RON
44 1 1 Side panel right (316021380) 2848 RON
45 1 1 Gear-wheel shaft (341603100) 190 RON
46 1 1 Gear-wheel setting (343365950) 1564 RON
47 1 1 Setting gauge (343366060) 2459 RON
48 1 4 Knurled bolt (341053330) 781 RON
49 1 4 Cover plate (339125630) 1340 RON
50 1 4 Retaining ring (141180040) 446 RON
51 1 2 Arber (341053340) 3689 RON
52 1 1 Table cpl. (316021400) 30980 RON
53 1 1 Extention (341053990) 3689 RON
