Top » Piese de schimb » PIESE METABO » 05700420

STE 70 - 05700420 - US 120V
[05700420]
STE 70 - 05700420 - US 120V
Click pentru a mari
Imagini suplimentare
STE 70 - 05700420 - US 120V
Click pentru a mari

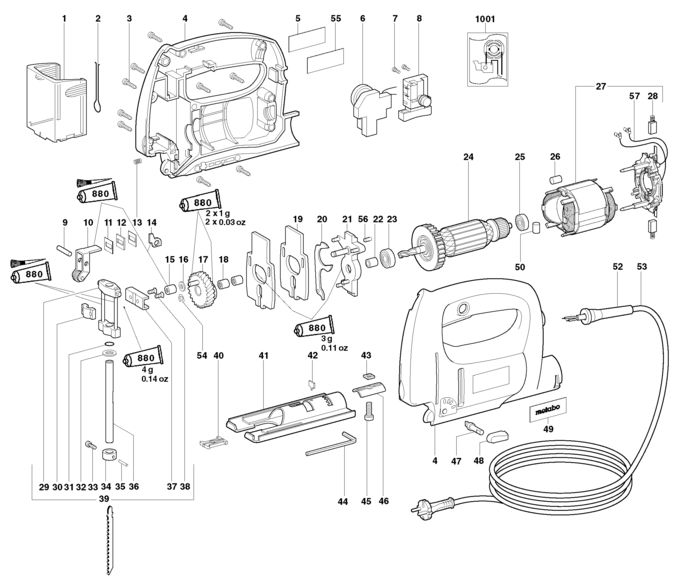

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Eye shield (343374590) 1340 RON
2 1 1 Protective strap (342200570) 446 RON
3 1 10 Self-tap. fill. h. screw (141116020) 781 RON
4 1 1 Housing cpl. (316030450) 13756 RON
5 1 1 Rating plate (338039930) 446 RON
6 1 1 Electronic unit 120 V (343077430) 15993 RON
7 1 2 Fillister head screw (141116970) 781 RON
8 1 1 Pressure switch black (343408920) 3018 RON
9 1 1 Cylindrical pin (341513860) 446 RON
10 1 1 Supporting lever (316029880) 488 RON
11 1 2 Sliding sheet (339120500) 446 RON
12 1 1 Felt (344070040) 446 RON
13 1 1 Pressure spring (342021680) 446 RON
14 1 1 Guide plate (339129320) 446 RON
15 1 1 Needle bearing (341002610) 5479 RON
16 1 1 Washer (339125490) 781 RON
17 1 1 Spur gear cpl. (316030080) 15993 RON
18 1 2 Needle sleeve (143111430) Indisponibil Indisponibil
19 1 2 Balancing plate (339129290) 3689 RON
20 1 1 Pressure spring (339129360) 2459 RON
21 1 1 Bearing support cpl. (316030090) 7157 RON
22 1 1 Cover brush (343380060) 446 RON
23 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
24 1 1 Armature cpl. 120 V (310007900) 30980 RON
25 1 1 Ball bearing, 6x19x6 (143112230) Indisponibil Indisponibil
26 1 1 Rubber stopper (344092550) 446 RON
27 1 1 Field coil 120 V (316030110) 33553 RON
28 1 1 Carbon brush (316033910) Indisponibil Indisponibil
29 1 1 Oscillating guide (316032560) 2459 RON
30 1 1 Cover plate (341070310) 781 RON
31 1 1 O-ring (143194700) 446 RON
32 1 1 Sealing washer (339010520) 446 RON
33 1 1 Cap screw (141119160) 781 RON
34 1 1 Clamping piece (344600340) 2124 RON
35 1 1 Tightening pin (141160810) 781 RON
36 1 1 Ram (341056120) 10288 RON
37 1 1 Connecting link (339129450) 781 RON
38 1 2 Countersunk screw (141120550) 446 RON
39 1 1 Ram with guide (316030260) Indisponibil Indisponibil
40 1 1 Anti-splintering insert (343395480) 669 RON
41 1 1 Base plate cpl. (316029620) 5479 RON
42 1 1 position plate (339129310) 446 RON
43 1 1 Square nut (141131370) 446 RON
44 1 1 Hexagonal key (344161530) 781 RON
45 1 1 Cap screw (141122300) 446 RON
46 1 1 Champing claw (339005620) 105 RON
47 1 1 Shift axle (341055860) 2459 RON
48 1 1 Shift lever (316030140) 1340 RON
49 1 1 Metabo label (338114830) 781 RON
50 1 1 Rubber plug (344091420) 446 RON
52 1 1 Cable sleeve (344101140) 105 RON
53 1 1 Cable with UL-CSA-plug (344492750) 7157 RON
54 1 1 Circlip (141181810) 446 RON
55 1 1 Warning label (338109940) 1564 RON
56 1 1 Rubber plug (344097580) 446 RON
57 1 1 Brush holder module (316030230) 10288 RON
880 1 1 Grease 50Gr 1,8oz (344130930) 13756 RON
1001 1 1 338502360 - Indisponibil
