Top » Piese de schimb » PIESE METABO » 02167420

SSP 12 - 02167420 - -
[02167420]
SSP 12 - 02167420 - -
Click pentru a mari
Imagini suplimentare
SSP 12 - 02167420 - -
Click pentru a mari

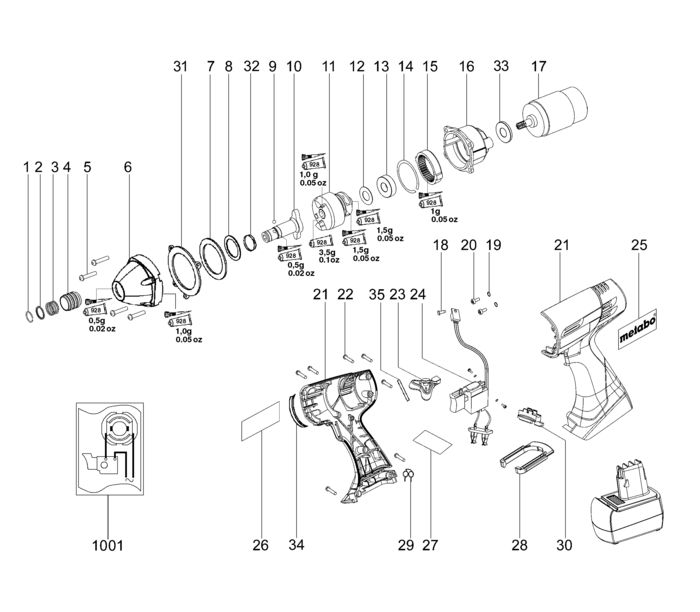

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Circlip (141181150) 446 RON
2 1 1 Washer (141156210) 446 RON
3 1 1 Pressure spring (342003250) 446 RON
4 1 1 Bit clamping bush (341057600) 488 RON
5 1 4 Fillister head screw (141123370) 446 RON
6 1 1 Gear housing cpl. (316037960) 15993 RON
7 1 1 Gasket (344097070) 446 RON
8 1 1 Washer (141156220) 781 RON
9 1 1 Ball (143114960) 446 RON
10 1 1 Tool holder (341603910) 18341 RON
11 1 1 Hammer mechanism, cpl. (316037970) 34448 RON
12 1 1 Washer (141156200) 446 RON
13 1 1 Ball bearing 12X28X8 (143114570) 3018 RON
14 1 1 Circlip (141156190) 446 RON
15 1 1 Hollow gear (340003520) 3689 RON
16 1 1 Gear Cover (315104380) 8275 RON
17 1 1 Motor cpl. (317003240) 24046 RON
18 1 1 Fillister head screw (141110460) 446 RON
19 1 2 Spring ring (141156180) 446 RON
20 1 2 Fillister head screw (141119850) 446 RON
21 1 1 Housing with cover (343390820) 13756 RON
22 1 7 Self-tap. fill. h. screw (141113180) 446 RON
23 1 1 Handle (upper+under part) (316038190) 781 RON
24 1 1 Electronic switch (343407680) 34448 RON
25 1 1 Metabo label (338119050) 446 RON
26 1 1 Rating plate (338045840) 446 RON
27 1 1 Warning label (338115880) 1564 RON
28 1 1 Locking slide (343390440) 669 RON
29 1 1 Spring clip (342021670) 446 RON
30 1 1 Bit Holder 18 V (343390470) 446 RON
31 1 1 Gasket (339011510) 446 RON
32 1 1 Spring washer (342021970) 105 RON
33 1 1 Gasket (344097190) 446 RON
34 1 2 Damping ring (344097210) 446 RON
35 1 2 Rubber base (344097220) 446 RON
928 1 1 Grease GL 402 (344130650) 488 RON
1001 1 1 338504070 - Indisponibil
