Top » Piese de schimb » PIESE METABO » 0130170145 11

SPA 1702 W - 0130170145 11 - SA 220V / 60Hz
[0130170145 11]
SPA 1702 W - 0130170145 11 - SA 220V / 60Hz
Click pentru a mari
Imagini suplimentare
SPA 1702 W - 0130170145 11 - SA 220V / 60Hz
Click pentru a mari

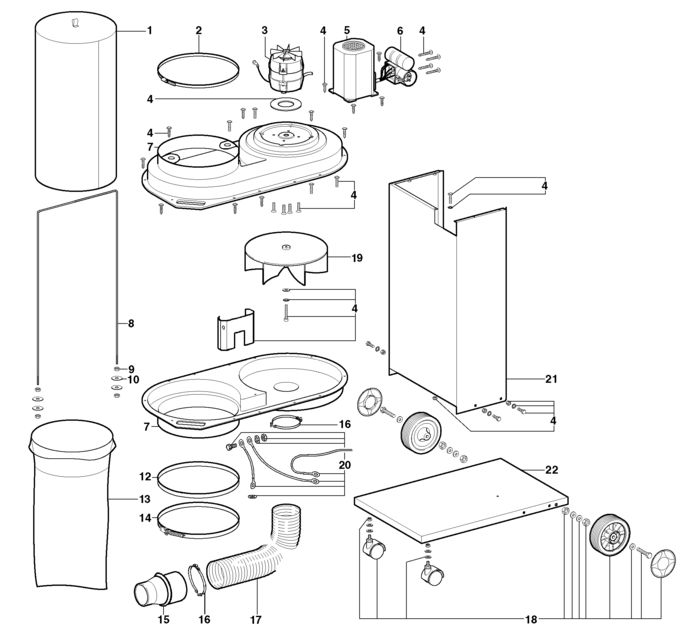

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CHIP BAG KATEGORIE "G" SPA 1701 (81388690875) 3698 RON
2 1 1 TIGHTENING STRAP 1110 MM ET (87014690896) 13756 RON
3 1 1 ELECTRIC MOTOR 230/1/50 0,75KW ET (88012690917) 171574 RON
4 1 1 HARDWARE BAG SPA 1701 (81013691033) 24046 RON
5 1 1 COVER ET (81381690934) 8275 RON
6 1 1 SWITCH SSK KSVB 16A IP 44 ET (88131690925) 78180 RON
7 1 1 HOUSING, UPPER ET (81381690942) 54357 RON
8 1 1 HOLDER FOR FILTER BAG RD 5,3 1604 MM ET (81382690881) 8275 RON
9 1 4 Hex nut (86200002219) 446 RON
10 1 4 Washer (86305002087) 446 RON
11 1 1 1381690950 - Indisponibil
12 1 1 PACKING RING RD 325 ET (81388691014) 190 RON
13 1 1 0913017617 - Indisponibil
14 1 1 TIGHTENING STRAP RD 325 /M.VERSCHLUSS ET (87014690900) 8275 RON
15 1 1 0913031300 - Indisponibil
16 1 1 HOSE CLAMP RD 90-110 / 12 SKZ (87811036697) 1564 RON
17 1 1 7854018544 - Indisponibil
18 1 1 CASTER SET ET (81013690991) 26730 RON
19 1 1 IMPELLER ET (81381690969) 46975 RON
20 1 1 earthing system ET (81013691041) 24046 RON
21 1 1 FRONT PANEL ET (81382690989) 64311 RON
22 1 1 BOTTOM PLATE ET (81382690970) 49212 RON
