SPA 1101 - 0130011012 13 - GB 230V
[0130011012 13]
SPA 1101 - 0130011012 13 - GB 230V
Click pentru a mari
Imagini suplimentare
SPA 1101 - 0130011012 13 - GB 230V
Click pentru a mari

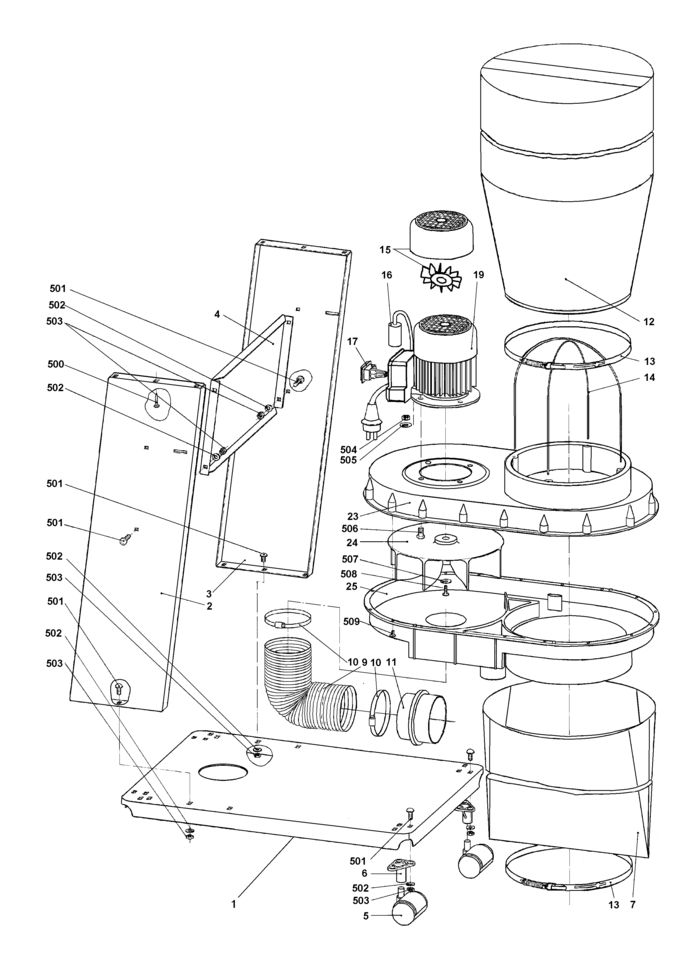

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BOTTOM PLATE BL 1,5X444X740 (81382223043) 19236 RON
2 1 1 SIDE PANEL BL 1,5X252X822 RECHTS (81382223086) 11519 RON
3 1 1 SIDE PANEL BL 1,5X252X822 LINKS (81382223051) 11519 RON
4 1 1 CROSSHEAD BL 1,5X252X391 (81382223060) 7157 RON
5 1 4 CASTOR, TWIN NYLON WHEELS RDA 50 STIFT 1 (87270033142) 190 RON
6 1 4 DOUBLE ROLL SIT (81381223074) 1340 RON
7 1 1 DUST COLLECTION BAG 0,1X600X900 (84820629243) 1340 RON
9 1 1 7854018544 - Indisponibil
10 1 2 HOSE CLAMP RD 90-110 / 12 SKZ (87811036697) 1564 RON
11 1 1 SLEEVE (81391006179) 3018 RON
12 1 1 FILTER BAG, WITH LOOP RD 400/274X950 "G" (81399187989) Indisponibil Indisponibil
13 1 2 TIGHTENING STRAP RD 280 K 460 FEDER BLAU (87014421119) 7157 RON
14 1 2 ROD BRASS RD7X1800+/-10 (81381221314) 955 RON
15 1 1 IMPELLER WITH FAN COVER (81013730578) 3018 RON
16 1 1 CAPACITOR 12?F 35X70 KABEL.150 BAS 260 (88050723829) 955 RON
17 1 1 8112730290 - Indisponibil
19 1 1 ELECTRIC MOTOR 0,50 WNB LI.-O.BR. (SPA) (88012719320) 83437 RON
23 1 1 HOUSING, UPPER SPA 1101 (81381691906) 21361 RON
24 1 1 IMPELLER SPA 1101 (81381691914) 2848 RON
25 1 1 HOUSING, LOWER SPA 1101 (81381691892) 24046 RON
500 1 6 HEXAGON HEAD TAPPING SCREW (86171028084) 446 RON
501 1 22 CUP SQUARE NECK SCREW M 5X16 VERZ. (86110125036) 446 RON
502 1 22 Washer Washer cod vechi 86300016365 (141151940) 446 RON
503 1 22 NUT AND WASHER ASSEMBLY (86209018460) 446 RON
504 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
505 1 4 Washer (86305002486) 446 RON
506 1 4 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
507 1 1 Washer (86305002087) 446 RON
508 1 1 RAISED CHEESE HEAD SCREW M 5X16 VERZ. (86123002057) 446 RON
509 1 18 TALLOW-DROP SCREW 5X20 VERZ./PLASTOFAST (86189153781) 446 RON
