Top » Piese de schimb » PIESE METABO » 0910064347 10

Sliding CARRIAGE UK290/UK333 - 0910064347 10 - -
[0910064347 10]
Sliding CARRIAGE UK290/UK333 - 0910064347 10 - -
Click pentru a mari
Imagini suplimentare
Sliding CARRIAGE UK290/UK333 - 0910064347 10 - -
Click pentru a mari

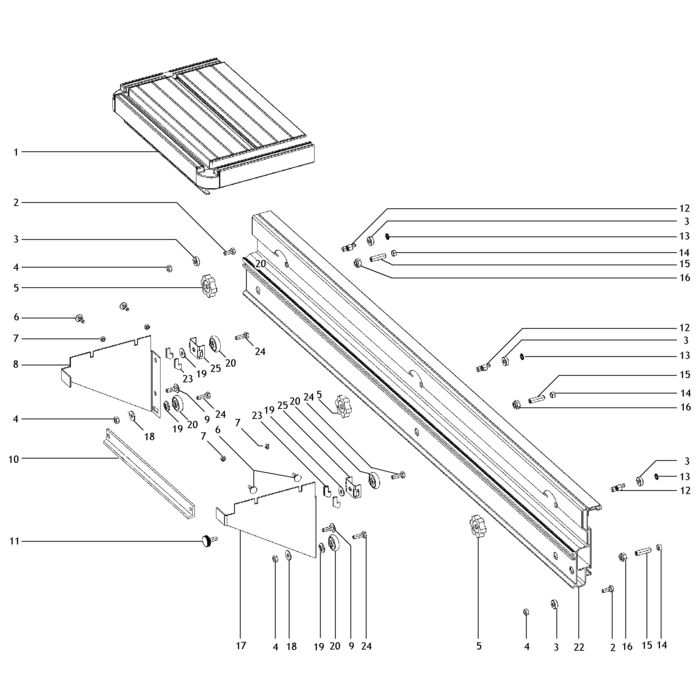

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TABLE ASSEMBLY SCHIEBESCHL.UK290 (81010727592) 64311 RON
2 1 2 Hex head screw (86103015675) 446 RON
3 1 5 ROLLER, SLIDING CARRIAGE RD 16X5,5 (81381222310) 105 RON
4 1 8 Flange nut (86209114230) 446 RON
5 1 3 SETTING KNOB RD40/M8 VERZINKT (87000727525) 1564 RON
6 1 4 CUP SQUARE NECK SCREW M 5X16 VERZ. (86110125036) 446 RON
7 1 4 NUT AND WASHER ASSEMBLY (86209018460) 446 RON
8 1 1 RETENTION PLATE BL 2,00X156X245,5 SCHIEB (81482727480) 8275 RON
9 1 2 Fillister head screw w.flange (86143661561) 446 RON
10 1 1 STANCHIO FL 4,00X20X320 SCHIEBESCHL.UK29 (81482727502) 7157 RON
11 1 1 KNURLED THUMB SCREW M 6X16 / RD 20 VERZ. (86143075468) 781 RON
12 1 3 CAM BOL SCHIEBESCHL.UK290 (81485727538) 488 RON
13 1 3 STARLOCK (87016122305) 446 RON
14 1 3 SPACER BUSHING RD 20/7,3X8 SCHIEBESCHL.U (81388728970) 446 RON
15 1 3 GEWINDESTIFT M.IS+KEGELK. M 8X30 (86161132762) 446 RON
16 1 3 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
17 1 1 RETENTION PLATE BL 2,00X156X245,5 SCHIEB (81482727464) 8275 RON
18 1 2 Washer (86305002087) 446 RON
19 1 8 SHIM RING 8X14X1 VERZ. (86306017266) 446 RON
20 1 4 ROLLER D30X13,5 KUGELGELAGERT (87102726078) 7157 RON
22 1 1 GUIDE EXTRUSION 158X1225MM UK290/333 (81383726979) 83437 RON
23 1 4 FELT BRUSH UK290 (89132726768) 1340 RON
24 1 4 Hex head screw (86103001135) 446 RON
25 1 2 PVC ROLLER COVER (81381726084) 488 RON
