Top » Piese de schimb » PIESE METABO » 0902005544 10

SEPARATE WIRE FEED UNIT SDV 250 E - 0902005544 10 - -
[0902005544 10]
SEPARATE WIRE FEED UNIT SDV 250 E - 0902005544 10 - -
Click pentru a mari
Imagini suplimentare
SEPARATE WIRE FEED UNIT SDV 250 E - 0902005544 10 - -
Click pentru a mari

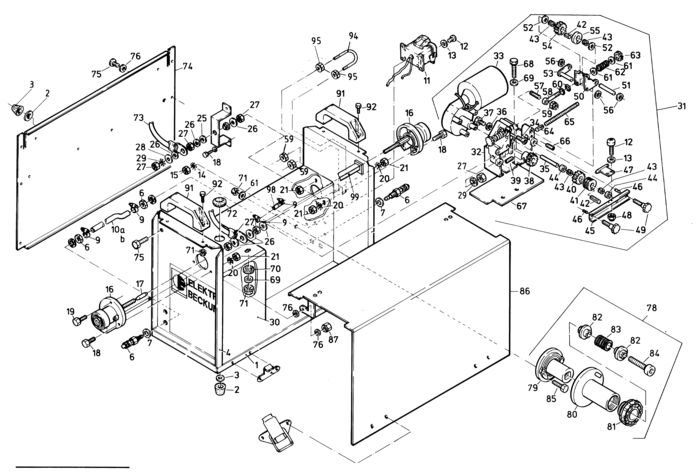

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 RUBBER DOOR STOP RD 40X25 MIT H?LSE (87056016427) 1564 RON
3 1 1 Washer (86305002087) 446 RON
6 1 1 QUICK COUPLING 2-TEILIG M.MUTTER U.SCHLA (87710004883) 10288 RON
7 1 1 Washer (86300016705) Indisponibil Indisponibil
9 1 1 HOSE CLAMP RD 8-12 MIT 6KT-SCHRAUBE (87811027736) 73930 RON
10 1 1 7850012088 - Indisponibil
11 1 1 SOCKET CASING BUCHSENEINS. M.SCHR. (88215101330) 54357 RON
12 1 1 Fillister head screw (86123002022) 446 RON
13 1 1 MEDIUM WASHER (86300016330) 446 RON
14 1 1 Serrated lock washer (86304084020) 446 RON
15 1 1 HEXAGON NUT (86200002197) 446 RON
16 1 1 EURO CONNECTOR SOCKET WZ2 (81327033430) 24046 RON
17 1 1 1327086010 - Indisponibil
18 1 1 Hex head screw (86103001135) 446 RON
19 1 1 Hex head screw (86103015675) 446 RON
20 1 1 Serrated lock washer (86304084047) 446 RON
21 1 1 Hex nut (86200002219) 446 RON
25 1 1 1321101530 - Indisponibil
26 1 1 MEDIUM WASHER A 10,5 (86300034215) 446 RON
27 1 1 HEXAGON NUT M 10 (86200001395) 446 RON
28 1 1 MEDIUM WASHER (86300016349) 446 RON
29 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
31 1 1 WIRE FEED UNIT, GEARWHEEL BEIDS. ANDRUC (81002011707) 392698 RON
32 1 1 CASING, WIRE FEED (81320015401) 64311 RON
33 1 1 WIRE FEED MOTOR 24 V MOTORWELLE GEBOHRT (88011092064) 14839 RON
34 1 1 CROSS RECESSED FLAT HEAD SCREW (86131009460) 446 RON
35 1 1 PARALLEL PIN, TAPPED BORE 8 h8X60 FORM D (86505002324) 2124 RON
36 1 1 SERRATED LOCK WASHER (86304084039) 446 RON
37 1 1 HEXAGON HEAD SCREW M 5X16 VERZ. (86103016850) 446 RON
38 1 1 DRIVE COG RD 34X32 MIT NABE (81325000259) 15993 RON
39 1 1 HEX. SOCKET SET SCREW, DOG PT. M 6X10 VE (86163001029) 446 RON
40 1 1 DRIVE CO RD 34X16 OHNE NABE (81321420709) 21361 RON
41 1 1 WIRE FEED ROLLER RD 31,5X10 GEH?RTET (81325000232) 8275 RON
42 1 1 CLAMPING SLEEVE 3X16 (86503001657) 446 RON
43 1 1 NEEDLE BUSHING 0810 (8X10) GEFETTET (87104002352) 1564 RON
44 1 1 SPACER ROLLER RDA 15,5 RDI 8,4X10 (81321004837) 781 RON
45 1 1 AXLE BRACKET BL 2,5X41X144 (81422065993) 4249 RON
46 1 1 SPACER SLEEVE (86442059304) 446 RON
47 1 1 ELECTRODE WIRE GUIDE (81422048924) 8275 RON
48 1 1 HEXAGON NUT (86200002197) 446 RON
49 1 1 STARKNOB SCREW M 6X20 (DIN 933) VERZINKT (87001124212) 105 RON
50 1 1 ROLLER BRACKET (81320016670) 13756 RON
51 1 1 PARALLEL PIN 8 h8X45 (86500009339) 446 RON
52 1 1 SPACER WASHER RDA15,5XRDI8,4X0,8 (81321004845) 446 RON
53 1 1 TWIST LOCK (81002013424) 5926 RON
54 1 1 DRIVE COG RD 34X16 OHNE NABE (81325009752) 11519 RON
55 1 1 PRESSURE ROLLER RD 31,5X10 GEH?RTET (81325000240) 24046 RON
56 1 1 STARLOCK WITHOUT CAP (87016056183) 446 RON
57 1 1 6168009192 - Indisponibil
58 1 1 6141009328 - Indisponibil
59 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
60 1 1 7632009520 - Indisponibil
61 1 1 Washer (86300016322) Indisponibil Indisponibil
62 1 1 PRESSURE SPRING RD 2,5X12,5X25 4,5 WINDG (87051086532) 446 RON
63 1 1 STARKNOB NUT (87000017730) 781 RON
64 1 1 CLAMPING SLEEVE 6X12 (86503088175) 446 RON
65 1 1 STEEL LINER 1,0-1,2 50 M ENDLOS (81327071129) 1564 RON
66 1 1 HEX. SOCKET SET SCREW, FLAT PT M 6X6 (86161000963) 446 RON
67 1 1 1321004713 - Indisponibil
68 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
69 1 1 Washer (86305002486) 446 RON
70 1 1 1321006457 - Indisponibil
71 1 1 Flange nut (6209110995) 446 RON
72 1 1 8241070868 - Indisponibil
75 1 1 HEXAGON HEAD SCREW M 5X12 VERZ. (86103001100) 446 RON
76 1 1 Washer (86300016357) 446 RON
78 1 1 ARBOR ASSEMBLY, SPOOL CARRIER (81321073880) 13756 RON
79 1 1 1327112950 - Indisponibil
80 1 1 1327112968 - Indisponibil
81 1 1 END CAP SPULENDORN (81327112976) 3018 RON
82 1 1 1327112984 - Indisponibil
83 1 1 1327112992 - Indisponibil
85 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
87 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
91 1 1 HANDLE "B" (81321070619) 3018 RON
92 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
94 1 1 U-BOLT M 8 (86159016658) 1564 RON
95 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
98 1 1 7807009367 - Indisponibil
