Top » Piese de schimb » PIESE METABO » 0902053921 10

SEPARATE WIRE FEED UNIT SDV EP - 0902053921 10 - -
[0902053921 10]
SEPARATE WIRE FEED UNIT SDV EP - 0902053921 10 - -
Click pentru a mari
Imagini suplimentare
SEPARATE WIRE FEED UNIT SDV EP - 0902053921 10 - -
Click pentru a mari
SEPARATE WIRE FEED UNIT SDV EP - 0902053921 10 - -
Click pentru a mari

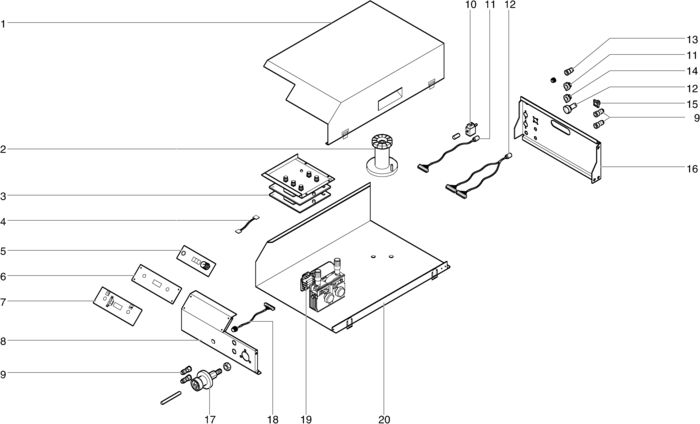

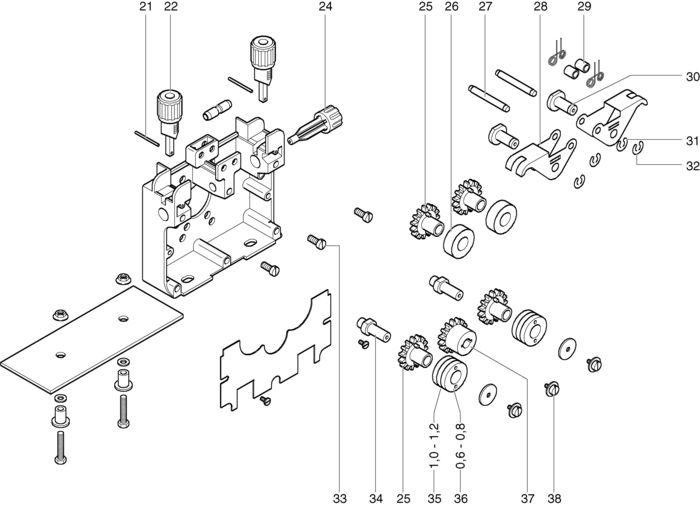

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 1002622242 - Indisponibil
2 1 1 ARBOR ASSEMBLY, SPOOL CARRIER (81321073880) 13756 RON
3 1 1 PILOT MODULE EP 232-502 (88106676063) 589663 RON
5 1 1 CONTROL UNIT EP 232-502 (88106676071) 197187 RON
6 1 1 1322676847 - Indisponibil
7 1 1 1142676865 - Indisponibil
8 1 1 1322676740 - Indisponibil
9 1 4 QUICK COUPLING 2-TEILIG M.MUTTER U.SCHLA (87710004883) 10288 RON
10 1 1 SOLENOID VALVE 24/1/50 P=13BAR 2X1/8"IG (88052153396) 19236 RON
12 1 1 PANEL-MOUNTED PLUG 50/70 MM2 MIT ISOLIER (88215153410) 10288 RON
13 1 1 QUICK COUPLING 1-TEILIG O.MUTTER U.SCHLA (87710155601) 5926 RON
14 1 1 8215144438 - Indisponibil
16 1 1 1322676723 - Indisponibil
17 1 1 1327133868 - Indisponibil
19 1 1 WIRE FEED DRIVE 0,6/0,8 1,0/1,2MONT. 4-R (81002652320) 197187 RON
20 1 1 1322621473 - Indisponibil
22 1 2 PRESSURE ADJUSTER MIT SKALA ET (81327177105) 24046 RON
24 1 1 BUSHING, WIRE GUIDE ET (81321177111) 3018 RON
25 1 4 GEARWHEEL ET (87247177005) 33553 RON
26 1 2 PRESSURE ROLLER ET (81325177027) 11519 RON
28 1 2 BRACKET, PRESSURE ROLLER ET (81322177093) 11519 RON
29 1 2 SPACER SLEEVE ET (81325177078) 3018 RON
30 1 2 AXLE ET (81325177051) 955 RON
31 1 2 141180010 - Indisponibil
32 1 2 RETAINING RING FOR SHAFTS 8X0,8 (86400047330) 446 RON
33 1 2 Cap screw (86121023081) 446 RON
34 1 2 AXLE ET (81325677976) 11519 RON
35 1 2 WIRE FEED ROLLER RD 30X12 V-NUT 1,0/1,2 (81325177035) 11519 RON
36 1 2 WIRE FEED ROLLER RD 30X12 V-NUT 0,6/0,8 (81325177043) 10288 RON
37 1 1 GEARWHEEL ET (81321654580) 13756 RON
38 1 1 Fillister head screw (86123002014) 446 RON
