Top » Piese de schimb » PIESE METABO » 0102207017 11

SECANTA - 0102207017 11 - CH 230V
[0102207017 11]
SECANTA - 0102207017 11 - CH 230V
Click pentru a mari
Imagini suplimentare
SECANTA - 0102207017 11 - CH 230V
Click pentru a mari
SECANTA - 0102207017 11 - CH 230V
Click pentru a mari
SECANTA - 0102207017 11 - CH 230V
Click pentru a mari
SECANTA - 0102207017 11 - CH 230V
Click pentru a mari

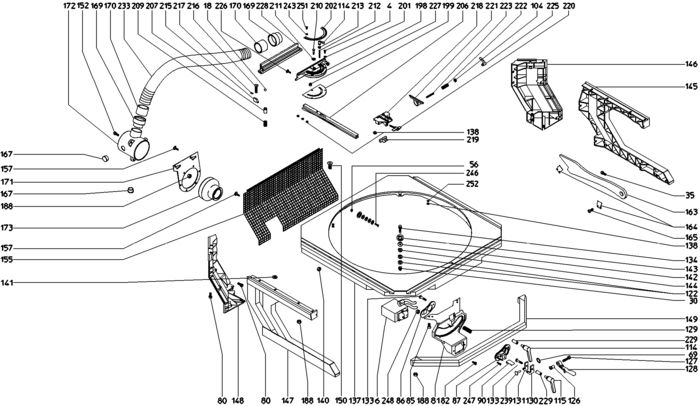

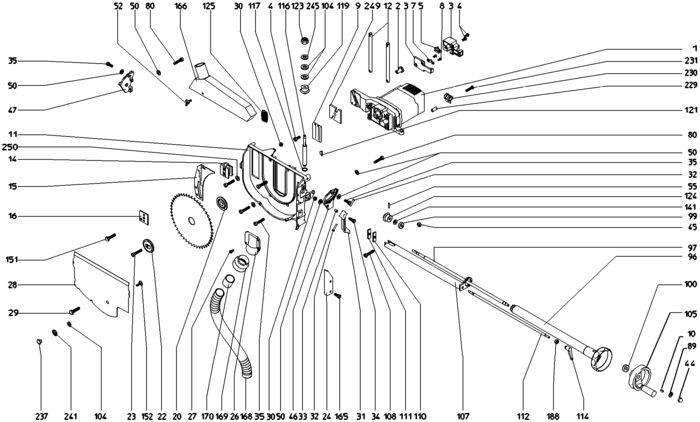

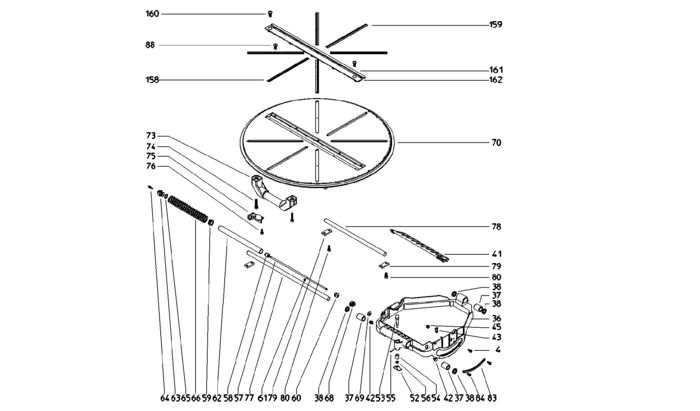

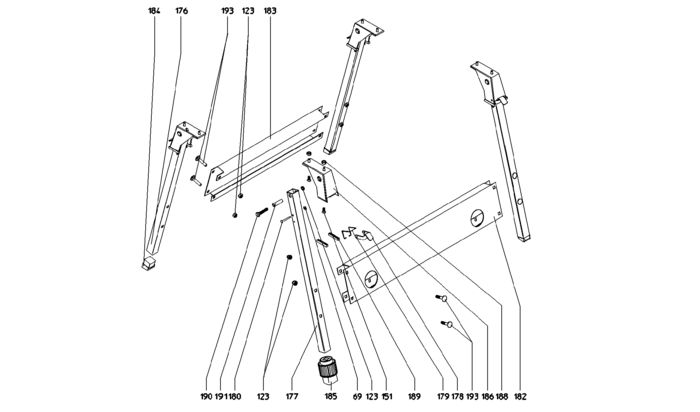

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 1010221150 - Indisponibil
2 1 1 POSITIONING SCREW (81485221570) 1564 RON
3 1 1 TERMINAL BOX ASSEMBLY (81381221209) 2459 RON
4 1 6 RAISED CHEESE HEAD SCREW (86123002049) 446 RON
5 1 3 TERMINAL BLOCK 2,5 mm? VDE 5VD4 301 /Nr. (88216103930) 446 RON
6 1 1 8131663456 - Indisponibil
7 1 1 STRAIN RELIEF (88242033664) 446 RON
8 1 2 Fillister head screw (86172100099) 446 RON
9 1 1 COVER 67X40X8 (81381652790) 781 RON
10 1 1 WOODRUFF KEY (86720008511) 446 RON
11 1 1 MOTORHEAD CARRIAGE SECANTA (81380654195) 108379 RON
12 1 2 Guide (81385221491) 5926 RON
14 1 1 RIVING KNIFE CARRIER (81380221434) 5926 RON
15 1 1 RIVING KNIFE (81482221587) 8275 RON
16 1 1 RIVING KIFE PLATE (81482221595) 781 RON
18 1 1 STEEL BALL RD 7,938 (87123148635) 446 RON
20 1 1 Blade collar, inner (81485221618) Indisponibil Indisponibil
22 1 1 BLADE COLLAR, OUTER (81482221900) Indisponibil Indisponibil
23 1 1 Cap screw (86121000839) Indisponibil Indisponibil
24 1 1 1482653231 - Indisponibil
26 1 1 DUST EXTRACTION PORT SECANTA (81381650843) 105 RON
27 1 2 THREAD CUTTING SCREW A M 4X12 VERZ. (86175604837) 446 RON
28 1 1 COVER PLATE BL 1,00X289X184 (81382653242) 7157 RON
29 1 1 HEX. HEAD THREAD ROLLING SCREW (86143124744) 446 RON
30 1 10 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
31 1 1 TILT STOP SECANTA (81381650851) 105 RON
32 1 2 COUNTERSUNK HEAD TAPPING SCREW ST 4,2X25 (86174001950) 446 RON
33 1 1 SPACER SLEEVE (86442059304) 446 RON
34 1 1 Hex head screw (86103001135) 446 RON
35 1 10 HEXAGON SOCKET HEAD CAP SCREW M 6X20 VER (86121000758) 446 RON
36 1 1 FRAME (81380652060) 3698 RON
37 1 3 LINEAR BALL BEARING (87121652050) 10288 RON
38 1 4 PACKING RING SD 16X24X3 (87631653027) 2124 RON
41 1 1 SWIVEL PLATE SECANTA (81381650878) 190 RON
42 1 2 PLUG-IN BUFFER (82391203906) 446 RON
43 1 1 1482653258 - Indisponibil
44 1 1 CAP NUT, SELF-LOCKING (86208073395) 446 RON
45 1 3 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
46 1 1 SWIVEL SEGMENT VORNE (81380220942) 3018 RON
47 1 1 SWIVEL SEGMENT HINTEN (81380220950) 3018 RON
50 1 5 CUP SPRING (87053081619) 446 RON
52 1 1 Thumb-nut (87005215360) 1564 RON
53 1 1 MANDREL RD 14X64 / M 6X16 (81485653267) 4249 RON
54 1 1 PRESSURE SPRING RDI 11X1,2X36 (87051204055) 781 RON
55 1 2 6501656672 - Indisponibil
56 1 2 HEXAGON THIN NUT (86205028046) 446 RON
57 1 1 1485653283 - Indisponibil
58 1 1 PISTON, SHOCK ABSORBER (81381216183) 781 RON
59 1 1 CUP SLEEVE 18X8X6/2 (87636149637) 105 RON
60 1 1 VENT END PLUG (81381216167) 781 RON
61 1 1 RETAINING WASHER RD 5 VERZ. (86404149626) 446 RON
62 1 1 1381221764 - Indisponibil
63 1 1 VENT END PLUG (81381216159) 781 RON
64 1 1 VALVE PIN,THREADED M 8X11/ 27 LANG (81485216223) 1340 RON
65 1 1 O-RING 13X2 70 SHORE (87632114120) 446 RON
66 1 1 TENSION SPRING RDI 22X101X1,5 (87051221944) 1564 RON
68 1 1 HOLDER,CARRIAGE RETURN SPRING F?R STO?D (81381216175) 781 RON
69 1 6 STARLOCK (87016122305) 446 RON
70 1 1 TURNTABLE SECANTA (81380653296) 117663 RON
73 1 1 HANDLE ASSEMBLY (81321419484) 5926 RON
74 1 2 THREAD ROLLING SCREW M 8X35 - ST VERZ./G (86143076260) 105 RON
75 1 1 1482654912 - Indisponibil
76 1 2 THREAD CUTTING SCREW A (86175174166) 446 RON
77 1 1 1385653073 - Indisponibil
78 1 1 1385653065 - Indisponibil
79 1 4 FLAT BAR (81482653304) 781 RON
80 1 16 Cap screw w.internal hexagon (86143075247) 781 RON
81 1 1 SWITCH SEAT SECANTA (81380653318) 54357 RON
82 1 2 Fillister head screw (86172001821) 446 RON
83 1 1 1141653322 - Indisponibil
84 1 2 Fillister head screw (86172091014) 446 RON
85 1 4 6143654336 - Indisponibil
86 1 1 SEGMENT PART 1 SECANTA (81381650827) 105 RON
87 1 1 SEGMENT PART 2 SECANTA (81381650835) 1564 RON
88 1 6 TALLOW-DROP SCREW 3X10 VERZ./PLASTITE (86189150286) 446 RON
89 1 1 Washer (86300016322) Indisponibil Indisponibil
90 1 1 INSERT PART 18MM (81383653360) 105 RON
96 1 1 HANDWHEEL SECANTA (81381650860) 7157 RON
97 1 1 ADVANCING SHAFT RD 10X501,5 (81485679487) 955 RON
99 1 1 DEEP GROOVE BALL BEARING 8X22X7 608 -2Z (87100072399) 2124 RON
100 1 1 DEEP GROOVE BALL BEARING cod vechi 87100010180 (143115740) 2459 RON
104 1 5 Washer (86300016322) Indisponibil Indisponibil
105 1 1 HANDWHEEL KOMPLETT UK/TKU ET (81010657543) 13756 RON
107 1 1 FEED ROD ASSEMBLY (81010653408) 15993 RON
108 1 1 HEXAGON SOCKET HEAD CAP SCREW M 5X25 VER (86121140886) 446 RON
110 1 1 1482653410 - Indisponibil
111 1 1 CLAMPING PLATE FL 14,5X5X40,5 (81482653428) 2459 RON
112 1 1 LOCK SHAFT RD 10X415 (81485653437) 5926 RON
114 1 3 Clamping lever (87006072385) 2459 RON
115 1 1 RATCHET LOCK LEVER, FEMALE M 6 HEBEL 42 (87006660775) 2459 RON
116 1 1 THREADED ROD TR 14X4 LH X135 H?HENVERSTE (81485653445) 7157 RON
117 1 1 RETAINING WASHER RD 8 VERZ. (86404091580) 446 RON
119 1 1 CONICAL GEAR WHEEL (81380613626) 190 RON
121 1 1 WOODRUFF KEY (86720008511) 446 RON
122 1 27 Washer Washer cod vechi 86300016365 (141151940) 446 RON
123 1 15 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
124 1 1 CONICAL GEAR WHEEL Z=22 M1,5 45 GRAD MIT (81380656686) 3689 RON
125 1 1 TENSION SPRING D=22X38 IF=0,336 (87051653453) 105 RON
126 1 1 TAPPED BUSHING 6KT13X21 M12X1,25/M6 (81395202703) 1340 RON
127 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121112564) 446 RON
128 1 1 STOP LEVER SECANTA (81380650785) 10288 RON
129 1 1 Pressure spring (87051202931) 446 RON
130 1 1 CLAMPING PLATE BL 4,00X62X42 VORNE (81482653479) 105 RON
131 1 1 CLAMPING PLATE BL 4,00X42X40 HINTEN (81482653487) 105 RON
133 1 2 CUP SQUARE NECK SCREW M 6X50 VERZ. (86110052292) Indisponibil Indisponibil
134 1 7 Cap screw (86127059207) 446 RON
137 1 1 TABLE SECANTA (81380653490) 14839 RON
138 1 6 GLIDE PIECE (81381652854) 446 RON
140 1 8 Flange nut (86209114230) 446 RON
141 1 2 SHIM RING 8X14X1 VERZ. (86306017266) 446 RON
142 1 8 DEEP GROOVE BALL BEARING 6X19X6 626 -2Z (87100047262) 1564 RON
143 1 8 ROLLER RD 29X10 (81381215624) 781 RON
144 1 10 SHIM RING (86306169970) 446 RON
145 1 1 SIDE PANEL LINKS (81380653504) 68673 RON
146 1 1 1380653512 - Indisponibil
147 1 1 SIDE PANEL RECHTS (81380653520) 68673 RON
148 1 1 1380653539 - Indisponibil
149 1 1 HANDLE SECANTA (81380653547) 19236 RON
150 1 10 Countersunk screw (86132087995) Indisponibil Indisponibil
151 1 10 HEX.SOCKET COUNTERS.HEAD SCREW (86132661454) 446 RON
152 1 3 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
155 1 1 PERFORATED PLATE BL 1,50X508X304 (81382653552) 41718 RON
157 1 9 CUP SQUARE NECK SCREW (86110000594) 446 RON
158 1 3 SCALE 1,50X11X245 30,20-5,70 CM (81142653563) 190 RON
159 1 3 1142653571 - Indisponibil
160 1 2 6174188961 - Indisponibil
161 1 1 KERF PLATE SECANTA (81381650800) 2124 RON
162 1 1 KERF PLATE SECANTA (81381650819) 2459 RON
163 1 1 Push stick (81394201630) 3018 RON
164 1 2 LEAF SPRING 0,4X25X40 (87052216120) 781 RON
165 1 6 THREAD ROLLING SCREW A M 5X12 - ST-Z VER (86143142823) 446 RON
166 1 1 SAW BLADE GUARD W/SUCTION PORT RD 31,4 L (81010656709) 24046 RON
167 1 2 PLUG RD 35,5X18 (81381120097) 781 RON
168 1 2 CORRUGATED HOSE RDI 36,2X820 PROFIL D (87854142946) 488 RON
169 1 3 END SLEEVE 3 RD 54,5/42,6X39 ABSAUGSCHL. (81381212374) 1340 RON
170 1 2 END SLEEVE JOINER (81381212943) 105 RON
171 1 1 STAY BRACKET PLATE BL 2,50X203,5X155 (81382653633) 7157 RON
172 1 2 DUST EXTRACTION PORT MIT 2X?FFNUNG RD34 (81381656922) 488 RON
173 1 2 1381213869 - Indisponibil
176 1 3 1383653645 - Indisponibil
177 1 1 LEG (81383653653) 11519 RON
178 1 4 Latch (81482653681) 2459 RON
179 1 4 Spring clip (87051653690) 1340 RON
180 1 4 MUSHROOM HEAD RIVET 5X40 (86622653042) 446 RON
182 1 1 1383653700 - Indisponibil
183 1 1 1383653718 - Indisponibil
184 1 3 FOOT (81381726173) 1340 RON
185 1 1 ADJUSTABLE FOOT ASSEMBLY VERSTELLBAR (82010200787) 7157 RON
186 1 4 SEAT, WORKSTAND SECANTA (81380653725) 18341 RON
188 1 32 Hex nut (86200002219) 446 RON
189 1 8 Rubber foot (87057650880) 781 RON
190 1 4 HEXAGON HEAD SCREW M 8X50 VERZ. (86103001216) 446 RON
191 1 4 SPACER SLEEVE RD 11/8,5X40 VERZ. (86442084635) 105 RON
193 1 10 Truss head screw (86110059297) 446 RON
198 1 1 MITRE FENCE HELLSILBER (81380655787) 2848 RON
199 1 1 SHIM PLATE (81482215935) 7157 RON
201 1 2 WASHER A 5,3 VERZ. (86305002478) 446 RON
202 1 1 ANGLE SCALE (81142215949) 488 RON
206 1 1 DOVETAIL GUIDE 425 MM (81383215966) 13756 RON
207 1 1 LOCK BOLT (81485215979) 1564 RON
209 1 1 PRESSURE SPRING, MITRE FENCE (87051148694) 446 RON
210 1 1 HEXAGON FIT BOLT SW 19X42 (81395205400) 2124 RON
211 1 1 WAVE SPRING WASHER B 12 VERZ. (86302085941) 446 RON
212 1 1 Grub screw (86162148646) 781 RON
213 1 1 Washer (86305002087) 446 RON
215 1 1 VERNIER CARRIER, MITRE FENCE (81381216000) 446 RON
216 1 1 COUNTERSUNK HEAD TAPPING SCREW (86174093740) 446 RON
217 1 1 VERNIER SCALE 1,00X12X9 0,5 GRAD (81110216110) 1340 RON
218 1 1 CLAMPING PAD (81380652869) 24046 RON
219 1 1 LOCK PLATE (81380653784) 3018 RON
220 1 1 THUMB SCREW (86150653795) 2459 RON
221 1 1 CLAMPING LEVER (81380655795) 4249 RON
222 1 1 PRESSURE SPRING (87051207240) 446 RON
223 1 1 HEX. SOCKET SET SCREW, FLAT PT (86161029120) 781 RON
225 1 1 RATCHET LOCK LEVER, FEMALE (87006028653) Indisponibil Indisponibil
226 1 2 CUP SQUARE NECK SCREW (86110000608) Indisponibil Indisponibil
227 1 2 Knurled nut (86241125058) 781 RON
228 1 1 FENCE EXTRUSION 470 MM SECANTA (81383675037) 15993 RON
229 1 3 SPACER SLEEVE RD 10/6X30 VERZ. (86442656663) 105 RON
230 1 1 FASTENING CLAMP (81381655616) 105 RON
231 1 1 HEXAGON SOCKET HEAD CAP SCREW M 6X45 VER (86121029632) 446 RON
233 1 1 CORRUGATED HOSE RDI 36,2X1200 PROFIL D (87854148316) 7157 RON
237 1 1 STARKNOB NUT M 6 (DIN 934) VERZINKT (87000025466) 781 RON
239 1 1 BOLT WITH HEAD A 5X35 VERZ. (86622656696) 105 RON
241 1 1 Serrated lock washer (86304001745) 446 RON
243 1 3 MEDIUM WASHER (86300016330) 446 RON
245 1 1 Cup spring (87053016795) 446 RON
246 1 1 HEX.SOCKET COUNTERS.HEAD SCREW (86132127741) 446 RON
247 1 1 RAISED CHEESE HEAD SCREW M 4X16 VERZ. (86123025200) 446 RON
248 1 1 HEXAGON NUT, PREV. TORQUE TYPE M 4 VERZ. (86202065412) 446 RON
249 1 1 SPACER PLATE BL 0,5X40X40 (81382666042) 1564 RON
250 1 2 O-RING 6X2 70 SHORE A (87632610097) 446 RON
251 1 3 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
252 1 4 SHIM RING 5X10X0,3 (86306165591) 446 RON
