Top » Piese de schimb » PIESE METABO » 31676000

Scoring saw kit - 31676000 - -
[31676000]
Scoring saw kit - 31676000 - -
Click pentru a mari
Imagini suplimentare
Scoring saw kit - 31676000 - -
Click pentru a mari

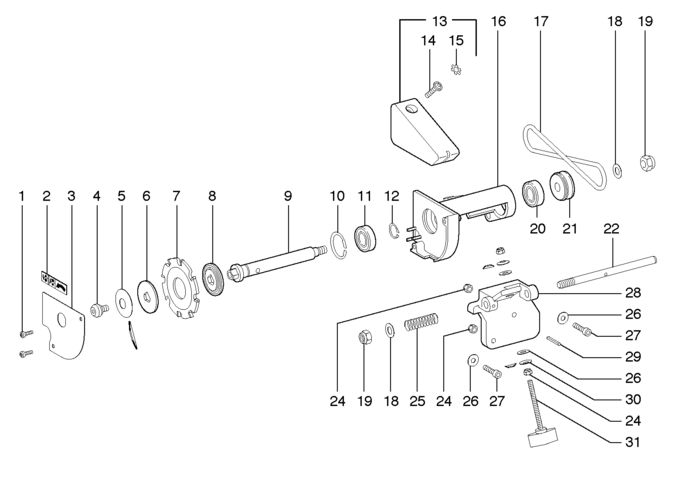

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 Fillister head screw (141113220) 446 RON
2 1 1 Indication label (338113280) 1340 RON
3 1 1 Cover (339128830) 488 RON
4 1 1 Screw (341701980) 488 RON
5 1 1 Cup spring (141154060) 1564 RON
6 1 1 Clamping flange (341031730) 3018 RON
7 1 1 623815000 - Indisponibil
8 1 1 Flange (341031470) 15993 RON
9 1 1 PRE CUTTER SHAFT (341055420) 19236 RON
10 1 1 Retaining ring (141180390) 781 RON
11 1 1 Ball bearing, 17x35x10 (143111450) 3689 RON
12 1 1 Retaining ring (141180110) 781 RON
13 1 1 Wheel guard (343372080) 11519 RON
14 1 1 Screw (341701550) 781 RON
15 1 1 Toothed ring (339128820) 4249 RON
16 1 1 Housing (315414630) 46975 RON
17 1 3 Round belt (344260250) 10288 RON
18 1 2 Washer (141150050) 446 RON
19 1 2 Hexagonal lock nut (141131110) 446 RON
20 1 2 Ball bearing, 15x35x11 (143111520) 7157 RON
21 1 1 341054930 - Indisponibil
22 1 1 Threaded bolt (341055430) 5926 RON
24 1 4 Hexagonal lock nut (141130650) 781 RON
25 1 1 Pressure spring (342001530) 781 RON
26 1 4 Washer (141153950) 446 RON
27 1 2 Cap screw (141113890) 781 RON
28 1 1 Flange (315414640) 2848 RON
29 1 1 141161050 - Indisponibil
30 1 2 Cup spring (141152550) 781 RON
31 1 1 Thumbscrew (341112320) 105 RON
