Top » Piese de schimb » PIESE METABO » 00709180

SBE 705 - 00709180 - CH 230V
[00709180]
SBE 705 - 00709180 - CH 230V
Click pentru a mari
Imagini suplimentare
SBE 705 - 00709180 - CH 230V
Click pentru a mari

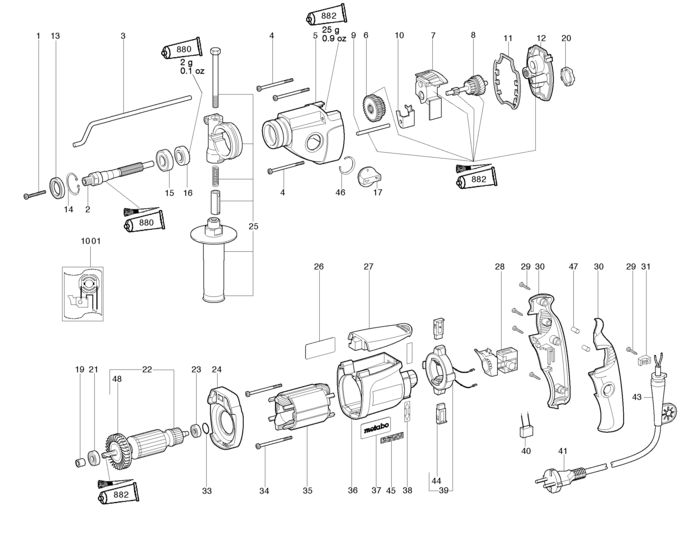

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Cheese-head screw (341701940) 781 RON
2 1 1 Drill spindle (341603640) 10288 RON
3 1 1 Depth stop (341511630) Indisponibil Indisponibil
4 1 3 Self-tap. fill. h. screw (141122490) 781 RON
5 1 1 Gear housing cpl. (316030990) 19236 RON
6 1 1 Sliding block (340004010) 3689 RON
7 1 1 Switch housing compl. (316027710) 488 RON
8 1 1 Intermediate gear (316030370) 21361 RON
9 1 1 Guide bolt (341540010) 190 RON
10 1 1 Shift fork (339129270) 781 RON
11 1 1 SEAL (344095910) 781 RON
12 1 1 Gear flange cpl. (316031000) 21361 RON
13 1 1 Shaft sealing ring (339210830) 105 RON
14 1 1 Retaining ring (141181680) 446 RON
15 1 1 BALL BEARING, 15x32x9 (143110220) Indisponibil Indisponibil
16 1 1 Slotted disc (341055650) 1564 RON
17 1 1 Control knob cpl. (316029530) 1340 RON
19 1 1 Sealing ring (343376040) 781 RON
20 1 1 Rubber buffer (344095920) 446 RON
21 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
22 1 1 Armature cpl.230V (310007830) 41718 RON
23 1 1 Ball bearing, 6X 19X 6 (143114750) Indisponibil Indisponibil
24 1 1 Intermediate flange (343374270) Indisponibil Indisponibil
25 1 1 Supporting handle cpl. (314000630) 7157 RON
26 1 1 Rating plate (338040200) 446 RON
27 1 1 Cover w.o. electronic (343374280) 2459 RON
28 1 1 Electronic switch with dial (343406870) 13756 RON
29 1 5 Self-tap. fill. h. screw (141117060) 781 RON
30 1 1 343362260 - Indisponibil
31 1 1 Cable clip (343362490) 781 RON
33 1 1 O-ring (143192430) Indisponibil Indisponibil
34 1 2 Self-tap. fill. h. screw (141118260) 446 RON
35 1 1 Field coil 230V (311009800) 8275 RON
36 1 1 Motor housing (315012650) 5926 RON
37 1 1 M-Label,08 52x22 (338122160) 446 RON
38 1 2 Indication label (338115410) 446 RON
39 1 1 Brush holder module (316028100) Indisponibil Indisponibil
40 1 1 Interference suppr. cond. (343254100) 2459 RON
41 1 1 Cable with plug (344488700) 4249 RON
43 1 1 Cable sleeve (344101160) 105 RON
44 1 1 316034550 - Indisponibil
45 1 1 399999990 - Indisponibil
46 1 1 Ring (141155810) 446 RON
47 1 2 Rubber plug (344092220) 446 RON
48 1 1 Fan w. prot. Grid (316035730) 2459 RON
880 1 1 Grease 50Gr 1,8oz (344130930) 13756 RON
882 1 1 Grease 50Gr 1,8oz (344130970) 488 RON
1001 1 1 338502230 - Indisponibil
