Top » Piese de schimb » PIESE METABO » 06102000

SBE 610 Impuls - 06102000 - EU 230V
[06102000]
SBE 610 Impuls - 06102000 - EU 230V
Click pentru a mari
Imagini suplimentare
SBE 610 Impuls - 06102000 - EU 230V
Click pentru a mari

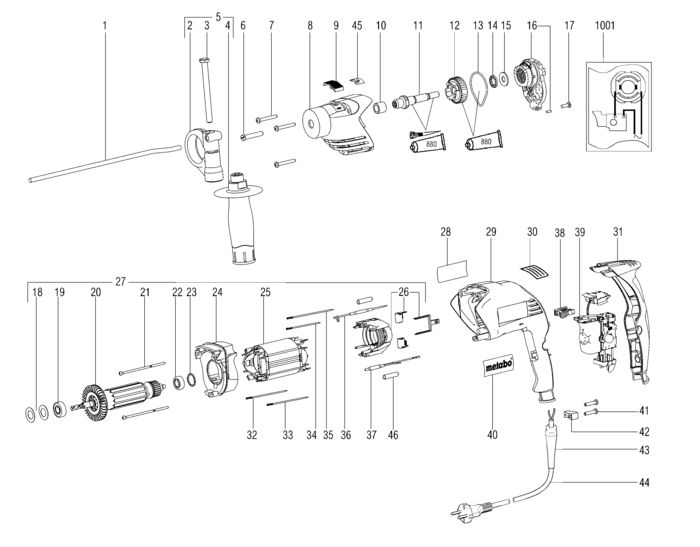

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Depth stop (341511630) Indisponibil Indisponibil
2 1 1 Clamping piece (343359780) 2124 RON
3 1 1 Hexagon head screw (141116160) 781 RON
4 1 1 314000550 - Indisponibil
5 1 1 Support handle cpl. (314000840) 3689 RON
6 1 1 Cheese-head screw (341701940) 781 RON
7 1 3 Self-tap. fill. h. screw (341701470) 446 RON
8 1 1 Gear housing compl. (316041160) 21361 RON
9 1 1 Switch slide (343392760) 669 RON
10 1 1 Spacer sleeve (341012790) 1340 RON
11 1 1 Spindle (341604010) 7157 RON
12 1 1 Spur gear (340012550) 955 RON
13 1 1 O-ring (143191930) 781 RON
14 1 1 Ball holder (320050260) 1564 RON
15 1 1 Washer (339006930) 781 RON
16 1 1 Gear flange cpl. (316041130) 19236 RON
17 1 1 Fill. head screw(DIN 7985) (141120070) 446 RON
18 1 3 Cup spring (141150590) 446 RON
19 1 1 Ball bearing, 8x22x7 (143114880) Indisponibil Indisponibil
20 1 1 Armature compl. (310009920) 3698 RON
21 1 2 Self-tap. fill. h. screw (341570120) 446 RON
22 1 1 Ball bearing, 6X 19X 6 (143114750) Indisponibil Indisponibil
23 1 1 O-ring (143192430) Indisponibil Indisponibil
24 1 1 Baffle (343392750) 1340 RON
25 1 1 Field coil 230 V (311010760) 15993 RON
26 1 1 Brush compl. w.bearing clamp,230V (316041730) 8275 RON
27 1 1 Motor compl. (317003280) 68673 RON
28 1 1 LEISTUNGSSCHILD (338047540) 446 RON
29 1 1 Motor housing (343391570) 5926 RON
30 1 1 399999990 - Indisponibil
31 1 1 Handle cover (343392770) 7157 RON
32 1 1 Strand compl., (344496660) 446 RON
33 1 1 Strand compl., (344496670) 446 RON
34 1 1 Strand compl. (344496680) 446 RON
35 1 1 Strand compl., (344496710) 446 RON
36 1 1 Interf. suppr.,230V (344497310) 190 RON
37 1 1 Interf. suppr.,230V (344497320) 2124 RON
38 1 1 switch (343391620) 669 RON
39 1 1 Electronic switch, Impuls 230 V (343408330) 30980 RON
40 1 1 Metabo label 99,52x22 SBE 610 Impuls (338120420) 446 RON
41 1 2 Self-tap. fill. h. screw (141116020) 781 RON
42 1 1 Cable clip (343362490) 781 RON
43 1 1 Cable sleeve (344097860) 446 RON
44 1 1 Cable with plug (344493180) 955 RON
45 1 1 Adjusting sheet (339132860) 105 RON
46 1 2 Cable sleeve (339040930) 446 RON
1001 1 1 338504670 - Indisponibil
