Top » Piese de schimb » PIESE METABO » 01208420

SBE 1010 - 01208420 - US 120V
[01208420]
SBE 1010 - 01208420 - US 120V
Click pentru a mari
Imagini suplimentare
SBE 1010 - 01208420 - US 120V
Click pentru a mari

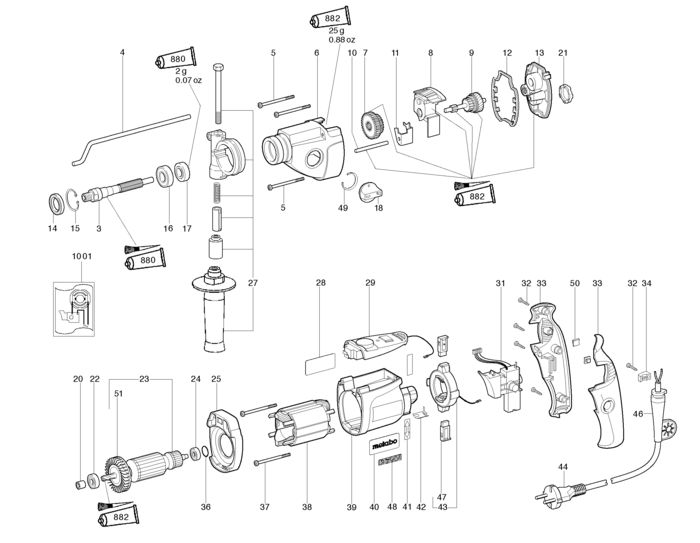

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
3 1 1 Drill spindle (341603640) 10288 RON
4 1 1 Depth stop (341511630) Indisponibil Indisponibil
5 1 3 Self-tap. fill. h. screw (141122490) 781 RON
6 1 1 Gear housing cpl. (316030990) 19236 RON
7 1 1 Sliding block (340004010) 3689 RON
8 1 1 Switch housing compl. (316027710) 488 RON
9 1 1 Intermediate gear (316040680) 24046 RON
10 1 1 Guide bolt (341540010) 190 RON
11 1 1 Shift fork (339129270) 781 RON
12 1 1 SEAL (344095910) 781 RON
13 1 1 Gear flange cpl. (316031000) 21361 RON
14 1 1 Shaft sealing ring (339210830) 105 RON
15 1 1 Retaining ring (141181680) 446 RON
16 1 1 BALL BEARING, 15x32x9 (143110220) Indisponibil Indisponibil
17 1 1 Slotted disc (341055650) 1564 RON
18 1 1 Control knob cpl. (316029530) 1340 RON
20 1 1 Sealing ring (343376040) 781 RON
21 1 1 Rubber buffer (344095920) 446 RON
22 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
23 1 1 Armature cpl. 120V (310007850) 4442 RON
24 1 1 Ball bearing, 6X 19X 6 (143114750) Indisponibil Indisponibil
25 1 1 Intermediate flange (343374270) Indisponibil Indisponibil
27 1 1 Support handle cpl. (314000830) 3689 RON
28 1 1 Rating plate (338039720) 446 RON
29 1 1 Electronic unit 120V (343078080) 26730 RON
31 1 1 poti switch 230V (343406880) 10288 RON
32 1 5 Self-tap. fill. h. screw (141117060) 781 RON
33 1 1 Pistol grip 2 piece (343393020) 3689 RON
34 1 1 Cable clip (343362490) 781 RON
36 1 1 O-ring (143192430) Indisponibil Indisponibil
37 1 2 Self-tap. fill. h. screw (141118260) 446 RON
38 1 1 Field coil 120V (311009840) 18341 RON
39 1 1 Motor housing (315012650) 5926 RON
40 1 1 M-Label,08 52x22 (338122160) 446 RON
41 1 2 Indication label (338115410) 446 RON
42 1 1 Brush contact (339129390) 1340 RON
43 1 1 Brush holder module 120V (316030030) 11519 RON
44 1 1 Cable with Ul-CSA-plug (344494030) 955 RON
46 1 1 Cable sleeve (344101160) 105 RON
47 1 1 343011830 - Indisponibil
48 1 1 Warning label (338115880) 1564 RON
49 1 1 Ring (141155810) 446 RON
50 1 2 Supporting piece (343378650) 446 RON
51 1 1 Fan w. prot. Grid (316035740) Indisponibil Indisponibil
880 1 1 Grease 50Gr 1,8oz (344130930) 13756 RON
882 1 1 Grease 50Gr 1,8oz (344130970) 488 RON
1001 1 1 338502250 - Indisponibil
