Saw table FLEXO 500 UK290/UK333 (CH) - 0910064576 10 - CH 230V
[0910064576 10]
Saw table FLEXO 500 UK290/UK333 (CH) - 0910064576 10 - CH 230V
Click pentru a mari
Imagini suplimentare
Saw table FLEXO 500 UK290/UK333 (CH) - 0910064576 10 - CH 230V
Click pentru a mari

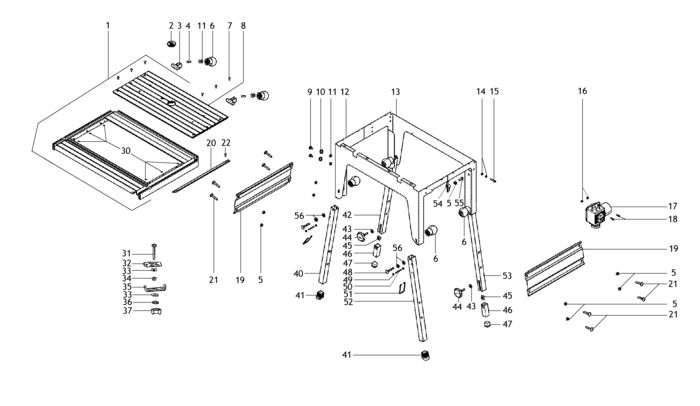

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TABLE UNIVERSALTISCH-UK290 (81010727614) 14839 RON
2 1 1 TABLE RINGS RD 46 UNIVERSALTISCH-UK290 (81381727986) 781 RON
3 1 2 LOCK PLATE (81380215981) 3018 RON
4 1 2 HEX. SOCKET SET SCREW, DOG PT. (86163198736) 1564 RON
5 1 9 Flange nut (6209110995) 446 RON
6 1 6 KNOB, RED (81388698264) Indisponibil Indisponibil
7 1 6 HEX.SOCKET COUNTERS.HEAD SCREW M 5X20 Z2 (86131730266) 669 RON
8 1 1 EXTRUSION, REMOV.TABLE SECTION 610MM UNI (81383727665) 59166 RON
9 1 2 BEARING BOLT (81395200611) 1340 RON
10 1 2 Washer (86305002486) 446 RON
11 1 4 HEXAGON NUT (86200002235) Indisponibil Indisponibil
12 1 1 SIDE PANEL BL 1,50X387,5X1082,5 UNIVERSA (81382727696) 39481 RON
13 1 1 SIDE PANEL BL 1,50X355,5X1082,5 UNIVERSA (81382727718) 33553 RON
14 1 2 Hex nut (86200002219) 446 RON
15 1 1 Cap screw (86127059207) 446 RON
16 1 18 NUT AND WASHER ASSEMBLY (86209018460) 446 RON
17 1 1 SWITCH SSK (CH) UNIVERSALTISCH-UK290 (88132729680) 34448 RON
18 1 2 HEXAGON HEAD SCREW M 5X16 VERZ. (86103016850) 446 RON
19 1 2 CROSSHEAD BL 1,50X170X428 UNIVERSALTISCH (81382727815) 955 RON
20 1 1 SCAL 0,25X9,2X550 15,00-69,00 CM (81142728610) 7157 RON
21 1 8 Truss head screw (86110015990) 446 RON
22 1 2 Fillister head screw (86172091014) 446 RON
30 1 6 CAGE NUT (86264714948) 781 RON
31 1 4 CUP SQUARE NECK SCREW M 6X45/40 VERZ. (86110729730) 669 RON
32 1 4 RETENTION PLATE BL 1,50X35,5X50,5 UNIVER (81382727742) 5926 RON
33 1 8 Washer (86305002087) 446 RON
34 1 6 Flange nut (86209114230) 446 RON
35 1 4 CLAMPING PLATE BL 2,99X20X79 UNIVERSALTI (81482727758) 3689 RON
36 1 4 Serrated lock washer (86304084047) 446 RON
37 1 4 WING NUT M 6 A2K (87005729976) 669 RON
40 1 1 LEG 30X30X2,0X550 UNIVERSALTISCH-UK290 (81383727770) 13756 RON
41 1 2 FOOT (81381726173) 1340 RON
42 1 1 LEG 30X30X2,0X550 UNIVERSALTISCH-UK290 (81383728645) 13756 RON
43 1 2 Washer (86307121334) 446 RON
44 1 2 STARKNOB SCREW M 8X28 (DIN 933) VERZINKT (87001115310) 1340 RON
45 1 2 CLAMPING PLATE FL 14,5X5X40,5 (81482653428) 2459 RON
46 1 2 EXTENSIO 25X25X2,00X78 UNIVERSALTISCH-UK (81382728676) 4249 RON
47 1 2 PLUG 25X25X1-3 (81381728664) 446 RON
48 1 4 CUP SQUARE NECK SCREW M 8X50 VERZ. (86110080245) 446 RON
49 1 8 STARLOCK (87016122305) 446 RON
50 1 4 PARALLEL PIN 5 h8X45 (86500000153) 446 RON
51 1 2 RETAINING CLIP KGT 501 (81382680185) 105 RON
52 1 1 LEG 30X30X2,0X518 UNIVERSALTISCH-UK290 (81383727797) 13756 RON
53 1 1 LEG 30X30X2,0X518 UNIVERSALTISCH-UK290 (81383728629) 13756 RON
54 1 1 Thumb-nut (87005135529) 781 RON
55 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
56 1 8 WASHER (86305002494) 446 RON
