Sanding frame - 31033000 - -
[31033000]
Sanding frame - 31033000 - -
Click pentru a mari
Imagini suplimentare
Sanding frame - 31033000 - -
Click pentru a mari

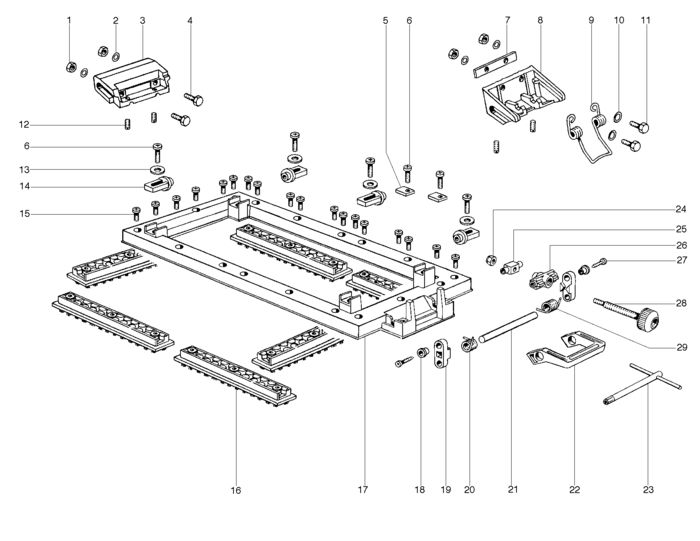

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Hexagonal nut (141130090) 446 RON
2 1 4 Toothed washer (341146110) 1564 RON
3 1 1 Guide block rear (315414690) 19236 RON
4 1 2 Hexagon head screw (141110240) 446 RON
5 1 1 Plate (339011370) 105 RON
6 1 1 Flat head screw (141121890) 781 RON
7 1 1 Clamping rail (339128870) 4249 RON
8 1 1 Guide block front (315414680) 19236 RON
9 1 1 Retaing spring (342002610) 488 RON
10 1 2 Washer (141150020) 446 RON
11 1 2 Hexagon head screw (141115940) 446 RON
12 1 4 Flat head screw (141121880) 781 RON
13 1 4 Washer (141150120) 446 RON
14 1 4 Sliding piece (343373060) 190 RON
15 1 18 Fill. head screw plast. 45 (141121790) 781 RON
16 1 1 Brush (344080540) 5479 RON
17 1 1 SANDING FRAME (315414660) 34448 RON
18 1 2 Flange bush (341004920) 781 RON
19 1 2 Cover plate (343373080) 190 RON
20 1 1 Spring left (342002580) 105 RON
21 1 1 Shaft (341160750) 2124 RON
22 1 1 Eccenter plate (343373070) 3689 RON
23 1 1 Socket (344162520) 7157 RON
24 1 1 Hexagonal lock nut (141130930) 446 RON
25 1 1 Flex piece (343373090) 105 RON
26 1 1 Flex piece (315414670) 2459 RON
27 1 2 Fill. head screw plast. 45 (141121800) 781 RON
28 1 1 Knurled screw (341112370) 8275 RON
29 1 1 Spring right (342002590) 105 RON
