Top » Piese de schimb » PIESE METABO » 31501000

Routing attachment - 31501000 - -
[31501000]
Routing attachment - 31501000 - -
Click pentru a mari
Imagini suplimentare
Routing attachment - 31501000 - -
Click pentru a mari

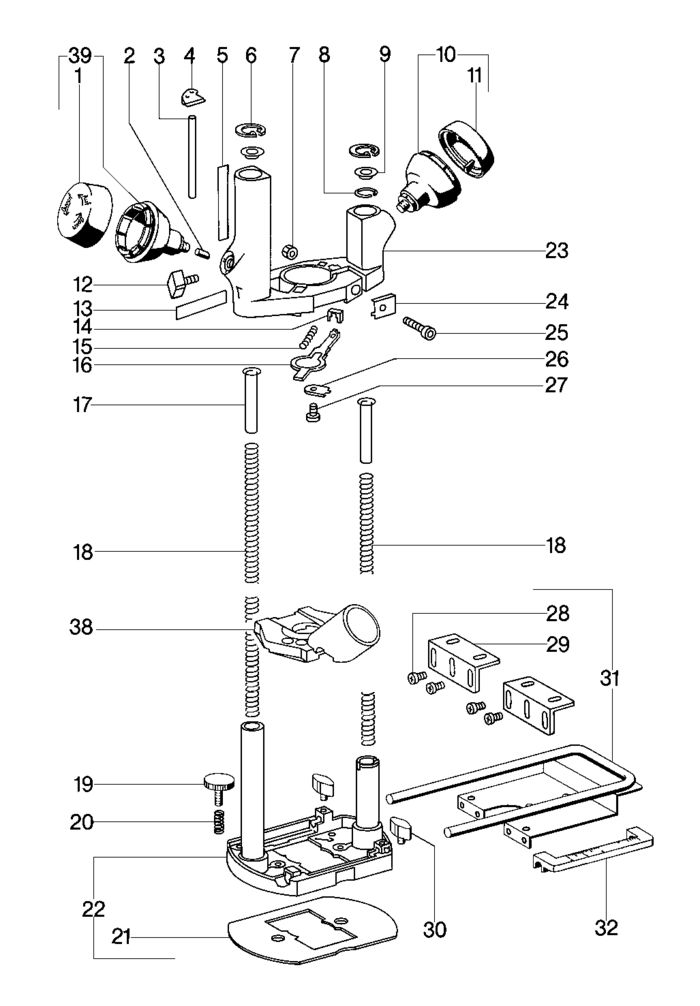

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Handle upper part (341111560) 2124 RON
2 1 1 Bolt (341052560) 446 RON
3 1 1 Adjusting toggle (341540090) 781 RON
4 1 1 Pointer (343363660) 105 RON
5 1 1 Scale (338110240) 105 RON
6 1 2 Retaining ring (141180660) 781 RON
7 1 1 Hexagonal nut (141130100) 446 RON
8 1 2 Circlip (342021120) 446 RON
9 1 2 Cover (339124510) 781 RON
10 1 1 Handle bottom part (316033040) Indisponibil Indisponibil
11 1 1 Handle upper part (341111320) 2459 RON
12 1 1 Thumbscrew (341110820) 1340 RON
13 1 1 Metabo label (338103240) 781 RON
14 1 1 Trigger (343364110) 105 RON
15 1 1 Pressure spring (342001770) 446 RON
16 1 1 Slide (339124490) 190 RON
17 1 2 Tubular rivet (141163410) 781 RON
18 1 2 Pressure spring (342001980) 1564 RON
19 1 1 Knurled-screw (141119120) 1564 RON
20 1 1 Pressure spring (342000040) 446 RON
21 1 1 Support (339124480) 190 RON
22 1 1 Base plate cpl. (316020730) 33553 RON
23 1 1 Holder cpl. (316020720) 64311 RON
24 1 1 Locking plate (339124520) 105 RON
25 1 1 Cap screw (141113900) 781 RON
26 1 1 Plate (339004950) 781 RON
27 1 1 Fill. head screw(DIN 7985) (141120070) 446 RON
28 1 4 Fillister head screw (141113220) 446 RON
29 1 2 Angle bracket (343364680) 1340 RON
30 1 2 Thumbscrew (341111030) 105 RON
31 1 1 Parallel guide (316020750) 13756 RON
32 1 1 Scale (344350150) 190 RON
38 1 1 Exhaust nozzle (316025140) 8275 RON
39 1 1 Handle bottom part (316033050) Indisponibil Indisponibil
