Top » Piese de schimb » PIESE METABO » 0230135100 10

PowerAir 350 - 0230135100 10 - EU 230V
[0230135100 10]
PowerAir 350 - 0230135100 10 - EU 230V
Click pentru a mari
Imagini suplimentare
PowerAir 350 - 0230135100 10 - EU 230V
Click pentru a mari
PowerAir 350 - 0230135100 10 - EU 230V
Click pentru a mari

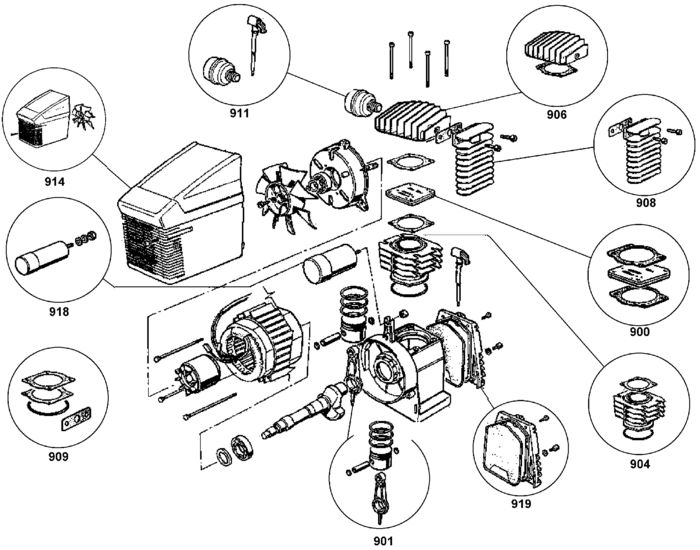

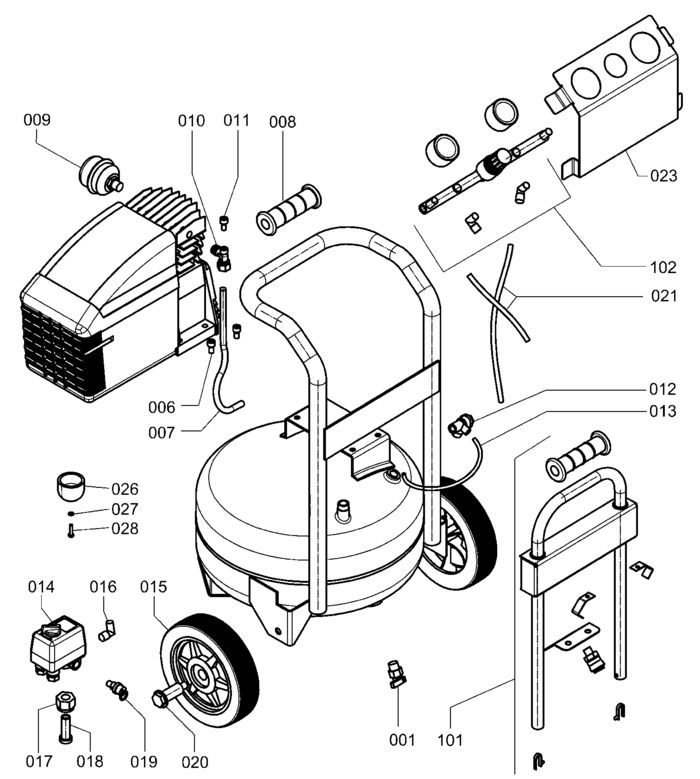

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 DRAIN VALVE (87830740796) 4249 RON
6 1 4 HEXAGON HEAD SCREW M 8X30 (86103086548) 446 RON
7 1 1 PRESSURE LINE (81319741948) 15993 RON
8 1 1 HANDLE BAR SLEEVE (87008740610) 1340 RON
9 1 1 7825738120 - Indisponibil
10 1 1 ELBOW TAP CONNECTOR (87872741857) 3689 RON
11 1 1 Valve (86109741866) 4249 RON
12 1 1 CHECK VALVE 1/2" ET (87831156664) 11519 RON
13 1 1 PRESSURE HOSE (87853740580) 10288 RON
14 1 1 AUTOM. PRESSURE CONTROL SWITCH 6-8 BAR 2 (88101149774) 2848 RON
15 1 2 Wheel (87270741910) 10288 RON
17 1 1 Union Nut (87874741935) 105 RON
18 1 1 PRESSURE LINE (81319741921) 105 RON
19 1 1 SAFETY VALVE R 1/4" 11 BAR (87833009618) 19236 RON
20 1 2 Bolt (81315741900) 1340 RON
21 1 1 PLASTIC HOSE RD 6X2X100000 DRUCK./HITZEB (87851675935) 7157 RON
23 1 1 Retaining sheet (81001741876) 21361 RON
26 1 1 Rubber foot (87057741958) 105 RON
28 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
101 1 1 Handle compl. (81001741892) 49212 RON
102 1 1 SERVICE UNIT ET (81001741884) 59166 RON
900 1 1 VALVE PLATE SET (81319741697) 4249 RON
901 1 1 PISTON-CONNECTING ROD SET (81319741727) 2848 RON
904 1 1 GASKET KIT (81319741719) 24046 RON
906 1 1 CYLINDER HEAD (81319741700) 21361 RON
909 1 1 Sealing set (81319741735) 488 RON
911 1 1 Filter (81319741760) 18341 RON
914 1 1 Covering hood compl. (81319741743) 18341 RON
918 1 1 CAPACITOR 30uF ET (88050634885) 3698 RON
919 1 1 Cover compl. (81319741751) 13756 RON
