Top » Piese de schimb » PIESE METABO » 0230038210 10

POWER 380 T - 0230038210 10 - EU 230V
[0230038210 10]
POWER 380 T - 0230038210 10 - EU 230V
Click pentru a mari
Imagini suplimentare
POWER 380 T - 0230038210 10 - EU 230V
Click pentru a mari

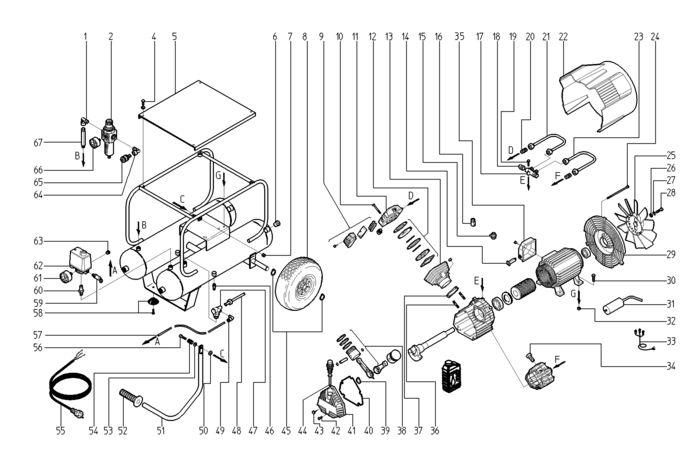

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ANGLE BRACKET 1/4"AX1/4"I ET (87872663082) 3689 RON
2 1 1 FILTER PRESSURE REGULATOR FR BIT 1/4" MA (87820661987) 4442 RON
4 1 4 Fillister head screw w.flange (86143661561) 446 RON
5 1 1 1312683624 - Indisponibil
6 1 4 6109079322 - Indisponibil
7 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
8 1 2 WHEEL, PNEUMATIC TYRE RD 260/85 M.STAHLF (87270663825) 30980 RON
9 1 1 AIR FILTER ASSEMBLY ET (87825661748) 190 RON
10 1 8 Hex head screw (86103001151) 446 RON
11 1 2 CYLINDER HEAD ET (81313632098) 24046 RON
12 1 1 VALVE PLATE SET ET (81319661650) 24046 RON
13 1 2 CYLINDER ET (81319649707) 54357 RON
14 1 1 MOTOR PROTECTION RELAY 15A / 250V-50/60H (88100662281) 18341 RON
15 1 1 VALVE NA 2,2 BAR / 1/4"A ET (81319662673) 488 RON
16 1 1 STRAIN RELIEF RD 21 ET (88240662699) 3689 RON
17 1 1 AIR COLLECTOR PIECE ET (81319663149) 13756 RON
18 1 1 VALVE NA 2,2 BAR / 1/4"A ET (81319662673) 488 RON
19 1 1 Cap screw (86121000766) 446 RON
20 1 1 DOUBLE NIPPLE R 1/4" 1 SEITE KONISCH/ET (87806663101) 190 RON
21 1 1 PRESSURE LINE ET (81313632080) 955 RON
22 1 1 1311662046 - Indisponibil
23 1 1 PRESSURE LINE ET (81313632071) 955 RON
24 1 4 1315661907 - Indisponibil
25 1 1 FAN WING ET (81319632049) 18341 RON
26 1 1 Washer (86305002486) 446 RON
27 1 1 Serrated lock washer (86304001745) 446 RON
28 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
29 1 1 FAN COVER ET (81313632055) 33553 RON
30 1 4 HEXAGON HEAD SCREW M 8X30 VERZ. (86103031271) 446 RON
31 1 1 CAPACITOR 50uF/450V M.KABEL /ET (88050624472) 34448 RON
32 1 4 Flange nut (6209110995) 446 RON
34 1 2 THREADED PLUG 3/8" ET (86109617006) 3018 RON
35 1 1 1341731174 - Indisponibil
36 1 4 1315661893 - Indisponibil
37 1 2 GASKET KIT ET (81319661600) 7157 RON
38 1 2 PISTON-CONNECTING ROD SET ET (81319683638) 49212 RON
39 1 1 Retaining ring (141180120) 781 RON
40 1 1 GASKET ET (81319632138) 190 RON
41 1 1 COVER CRANKCASE ET (81313632144) 21361 RON
42 1 1 Hex head screw (86103015675) 446 RON
43 1 3 CROSS RECESSED FLAT HEAD SCREW M 6X16 VE (86131047582) 446 RON
44 1 1 DIP STICK ET (81313632128) 1340 RON
45 1 4 6401160572 - Indisponibil
46 1 2 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
47 1 1 7831632016 - Indisponibil
48 1 1 PRESSURE LINE ET (81319683646) 13756 RON
49 1 1 ELBOW TAP CONNECTOR 1/4"A X 6MM M.O-RING (87872663090) 5479 RON
50 1 1 Washer (86305002486) 446 RON
51 1 1 1319683654 - Indisponibil
52 1 1 HANDLE BAR SLEEVE ET (87008662201) 5926 RON
53 1 1 Washer (86300016322) Indisponibil Indisponibil
54 1 1 PRESSURE SPRING RDA15,35X2,47XLO20 ET (87051683662) 13756 RON
55 1 1 CABLE, RUBBER JACKET,WITH PLUG A=437.1U (88402094428) 955 RON
57 1 1 PLASTIC HOSE BLACK RD 6X1X1000 SCHWARZ (87851190842) 2124 RON
58 1 1 SUCTION FOOD ET (81001661660) 4249 RON
59 1 1 SAFETY VALVE 1/4"A/10 BAR SV97-999 7D/G0 (87833662630) 7157 RON
60 1 1 DOUBLE NIPPLE R 1/4" ET (87806663110) 1564 RON
61 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/4" (87823088501) 11519 RON
62 1 1 AUTOM. PRESSURE CONTROL SWITCH MDR 1/11 (88101662161) 30980 RON
63 1 1 THREADED PLUG 1/4" NR.290 / VERZ. (87871042084) 3018 RON
64 1 1 ANGLE BRACKET 1/4"AX1/4"I ET (87872663082) 3689 RON
65 1 1 7802009083 - Indisponibil
66 1 1 PRESSURE GAUGE, REAR CONNECT RD 40 R1/8" (87823088510) 11519 RON
67 1 1 1315662466 - Indisponibil
