Top » Piese de schimb » PIESE METABO » 0230038201 10

POWER 380 - 0230038201 10 - EU 230V
[0230038201 10]
POWER 380 - 0230038201 10 - EU 230V
Click pentru a mari
Imagini suplimentare
POWER 380 - 0230038201 10 - EU 230V
Click pentru a mari

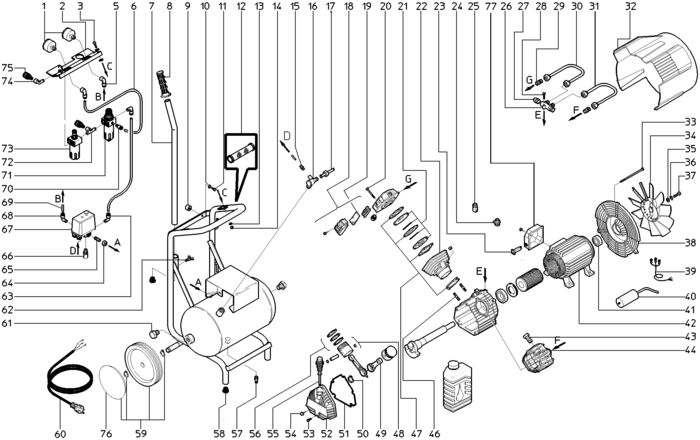

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 1001697303 - Indisponibil
2 1 1 PLATE SONTROL PANEL ET (81312661850) 955 RON
3 1 4 Cap screw (86121023081) 446 RON
5 1 2 ELBOW TAP CONNECTOR 1/8"IX6MM ET (87872663074) 8275 RON
6 1 1 PRESSURE HOSE 6/8 ET (87853185978) 4249 RON
7 1 1 HANDLE BAR ET (81315661834) 7157 RON
8 1 1 HANDLE BAR SLEEVE ET (87008662180) 5926 RON
9 1 2 RUBBER-METAL ANTI-VIBR. MOUNT (87058028481) 1340 RON
10 1 2 Washer Washer cod vechi 86300016365 (141151940) 446 RON
11 1 2 HEXAGON HEAD SCREW M 6X10 VERZ. (86103015934) 446 RON
12 1 1 HANDLE BAR SLEEVE ET (87008662198) 7157 RON
13 1 4 Washer (86305002087) 446 RON
14 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
15 1 1 ELBOW TAP CONNECTOR 1/8" X RD 6 (87872190850) 5926 RON
16 1 1 CHECK VALVE 1/2"AX1/2"A LINKS/ET (87831662594) 11519 RON
17 1 1 PRESSURE LINE RD 14 ET (81319662142) 19236 RON
18 1 1 AIR FILTER ASSEMBLY ET (87825661748) 190 RON
19 1 1 AIR FILTER ELEMENT ET (87825626799) 781 RON
20 1 4 Hex head screw (86103001151) 446 RON
21 1 1 VALVE PLATE SET ET (81319661650) 24046 RON
22 1 1 CYLINDER ET (81319649707) 54357 RON
23 1 1 MOTOR PROTECTION RELAY 15A / 250V-50/60H (88100662281) 18341 RON
24 1 1 CABLE BUSHING ET (81311662496) 190 RON
25 1 1 STRAIN RELIEF RD 21 ET (88240662699) 3689 RON
26 1 1 AIR COLLECTOR PIECE ET (81319663149) 13756 RON
27 1 1 VALVE NA 2,2 BAR / 1/4"A ET (81319662673) 488 RON
28 1 1 Cap screw (86121000766) 446 RON
29 1 2 DOUBLE NIPPLE R 1/4" 1 SEITE KONISCH/ET (87806663101) 190 RON
30 1 1 PRESSURE LINE ET (81313632080) 955 RON
31 1 1 PRESSURE LINE ET (81313632071) 955 RON
32 1 1 MOTOR COVER MOTOR /ET (81311626821) 15993 RON
33 1 2 1315661907 - Indisponibil
34 1 1 FAN WING ET (81319632049) 18341 RON
35 1 1 Washer (86305002486) 446 RON
36 1 1 Serrated lock washer (86304001745) 446 RON
37 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
38 1 1 FAN COVER ET (81313632055) 33553 RON
40 1 1 CAPACITOR 50uF/450V M.KABEL /ET (88050624472) 34448 RON
41 1 1 DEEP GROOVE BALL BEARING 20X47X14 6204-2 (87100016820) 488 RON
42 1 1 STATOR 2,0KW/230V POWER 380 (88014670549) 220451 RON
43 1 1 THREADED PLUG 3/8" ET (86109617006) 3018 RON
44 1 2 CYLINDER HEAD ET (81313632098) 24046 RON
46 1 4 1315661893 - Indisponibil
47 1 2 GASKET KIT ET (81319661600) 7157 RON
48 1 2 PISTON ASSEMBLY RD 55 M. BOLZEN /ET (81319661766) 26730 RON
49 1 2 CONNECTING ROD ET (81319661812) 3018 RON
50 1 1 Retaining ring (141180120) 781 RON
51 1 1 GASKET ET (81319632138) 190 RON
52 1 1 COVER CRANKCASE ET (81313632144) 21361 RON
53 1 1 Hex head screw (86103015675) 446 RON
54 1 3 CROSS RECESSED FLAT HEAD SCREW M 6X16 VE (86131047582) 446 RON
55 1 1 DIP STICK ET (81313632128) 1340 RON
56 1 1 PISTON RING SET ET (81319661588) 19236 RON
57 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
58 1 2 PLUG RD 21 ET (81311662488) 1564 RON
59 1 2 WHEEL ASSEMBLY RD 200 ET (81001661716) 30980 RON
60 1 1 CABLE, RUBBER JACKET,WITH PLUG A=437.1U (88402094428) 955 RON
61 1 1 6109079322 - Indisponibil
62 1 2 THUMB SCREW RED M 8X18 (86150421509) 105 RON
63 1 1 ELBOW TAP CONNECTOR 1/4"X8 ET (87871620223) 8275 RON
64 1 1 COUNTER NUT R 1/4" ET (86209113919) 2124 RON
65 1 1 DOUBLE NIPPLE R 1/4" ET (87806663110) 1564 RON
66 1 1 SAFETY VALVE 1/4"A/10 BAR SV97-999 7D/G0 (87833662630) 7157 RON
67 1 1 AUTOM. PRESSURE CONTROL SWITCH MDR 1/11 (88101662161) 30980 RON
68 1 1 ELBOW TAP CONNECTOR 1/4"A X 6MM M.O-RING (87872663090) 5479 RON
70 1 1 ELBOW TAP CONNECTOR 1/8" X RD 6 (87872190850) 5926 RON
71 1 1 FILTER PRESSURE REGULATOR FR BIT 1/4" MA (87820661987) 4442 RON
73 1 1 OILER COMPRESSED AIR LUB BIT 1/4" ET (87827661990) 54357 RON
74 1 1 ANGLE BRACKET 1/4"AX1/4"I ET (87872663082) 3689 RON
75 1 2 7802009083 - Indisponibil
76 1 2 WHEEL CAP RAD RD 200 ET (81311672505) 1340 RON
77 1 1 1341731174 - Indisponibil
7600 1 1 CARTON 530X470X840 POWER 300/380 ET (84810624545) 26730 RON
