Top » Piese de schimb » PIESE METABO » 0230023204 10

POWER 150 - 0230023204 10 - EU 230V
[0230023204 10]
POWER 150 - 0230023204 10 - EU 230V
Click pentru a mari
Imagini suplimentare
POWER 150 - 0230023204 10 - EU 230V
Click pentru a mari

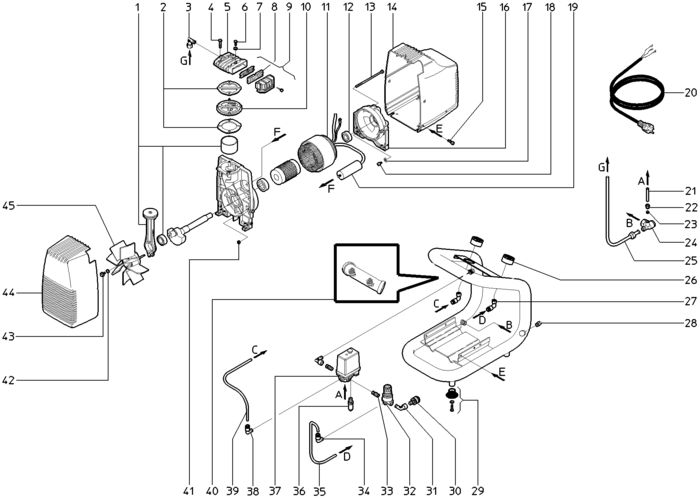

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 PISTON-CONNECTING ROD SET MIT LAGER / E (81319661758) 39481 RON
2 1 1 GASKET KIT ET (81319661626) 7157 RON
3 1 1 ELBOW TAP CONNECTOR R 1/4"AX10MM M.SCHNE (87872663155) 488 RON
4 1 4 HEXAGON HEAD SCREW M 6X35 VERZ. (86102082751) 446 RON
5 1 1 CYLINDER HEAD ET (81319662290) 18341 RON
6 1 4 HEX.SOCKET COUNTERS.HEAD SCREW M 4X12 VE (86131001558) 446 RON
7 1 4 ROSETTE, PLASTIC BLACK 814 F?R M4 SCHWAR (86341062550) 446 RON
8 1 1 AIR FILTER ELEMENT ET (87825626799) 781 RON
9 1 1 AIR FILTER ASSEMBLY ET (87825661721) 2459 RON
10 1 1 VALVE PLATE ASSEMBLY ET (81319661790) 21361 RON
11 1 1 8014663240 - Indisponibil
12 1 1 DEEP GROOVE BALL BEARING 17X40X12 6203-2 (87100047254) 3689 RON
13 1 2 1315661923 - Indisponibil
14 1 1 COVER SCHWARZ / ET (81311662054) 13756 RON
15 1 4 RAISED CHEESE HEAD SCREW M 5X16 VERZ. (86123002057) 446 RON
16 1 1 BEARING PLATE ET (81310662417) 18341 RON
17 1 1 Serrated lock washer (86304084020) 446 RON
18 1 1 THREAD CUTTING SCREW A M 4X8 VERZ. (86175604551) 446 RON
19 1 1 CAPACITOR 20uF/450V ET (88050662234) 15993 RON
20 1 1 CABLE, RUBBER JACKET,WITH PLUG A=437.1U (88402094428) 955 RON
22 1 1 UNION NUT 6 MM ET (87874156609) 488 RON
23 1 1 COMPRESSION RING 6 MM ET (87875156629) 781 RON
24 1 1 CHECK VALVE 1/2"IX3/8"A RECHTS/ET (87831662560) 8275 RON
25 1 1 PRESSURE LINE RD 10 ET (81319662118) 11519 RON
26 1 2 1001697303 - Indisponibil
27 1 2 ELBOW TAP CONNECTOR 1/8"IX6MM ET (87872663074) 8275 RON
28 1 1 DRAIN VALVE R 1/4" GRO? /ET (87830009595) 7157 RON
29 1 1 SUCTION FOOD ET (81001661660) 4249 RON
30 1 1 7802009083 - Indisponibil
31 1 2 ANGLE BRACKET 1/4"AX1/4"I ET (87872663082) 3689 RON
32 1 1 PRESSURE REGULATOR RP-192 1/4"I-A ET (87822661968) 15993 RON
33 1 2 7806009185 - Indisponibil
34 1 1 ELBOW TAP CONNECTOR 1/8" X RD 6 (87872190850) 5926 RON
36 1 1 SAFETY VALVE 1/4"A/8 BAR ET (87833662605) 7157 RON
37 1 1 AUTOM. PRESSURE CONTROL SWITCH MDR 1/11 (88101662161) 30980 RON
38 1 1 ELBOW TAP CONNECTOR 1/4"A X 6MM M.O-RING (87872663090) 5479 RON
40 1 1 7008662228 - Indisponibil
41 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
42 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
43 1 1 Hex head screw (86103001135) 446 RON
44 1 1 COVER BLAU / ET (81311662062) 10288 RON
45 1 1 FAN WING ET (81319662657) 7157 RON
7600 1 1 4810670504 - Indisponibil
