Top » Piese de schimb » PIESE METABO » 0200030001 10

PKV 300G/4,20 DNB - 0200030001 10 - 3 / 400V/50Hz
[0200030001 10]
PKV 300G/4,20 DNB - 0200030001 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
PKV 300G/4,20 DNB - 0200030001 10 - 3 / 400V/50Hz
Click pentru a mari
PKV 300G/4,20 DNB - 0200030001 10 - 3 / 400V/50Hz
Click pentru a mari
PKV 300G/4,20 DNB - 0200030001 10 - 3 / 400V/50Hz
Click pentru a mari

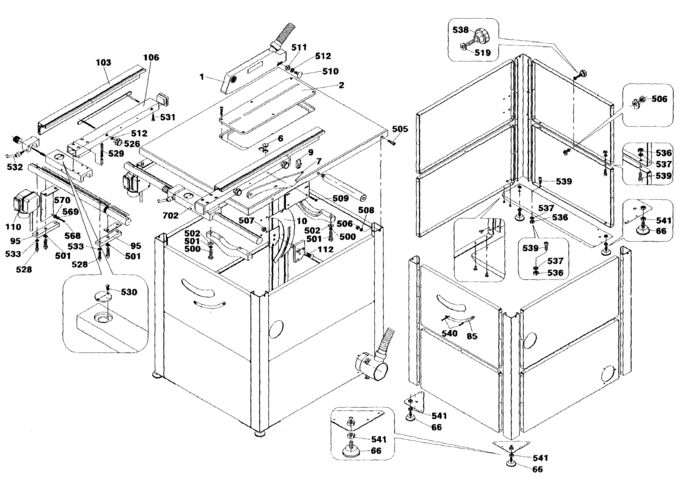

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SAW BLADE GUARD W/SUCTION PORT RD 37,4 (81381193337) 49212 RON
2 1 1 1384608449 - Indisponibil
6 1 1 1381608405 - Indisponibil
7 1 1 Push stick (81394201630) 3018 RON
9 1 1 SUPPORT CLIP 20X20X40 (82391201555) 105 RON
10 1 1 RIVING KNIFE ET (81482608473) 30980 RON
17 1 1 1388608656 - Indisponibil
25 1 1 MOTOR, PRECISION CIRCULAR SAW 4,20 D OHN (81010194861) 220451 RON
26 1 1 V-BELT PULLEY ET (81388608702) 4442 RON
27 1 1 7232608735 - Indisponibil
33 1 1 1386608144 - Indisponibil
34 1 1 0910014137 - Indisponibil
36 1 1 SAW BLADE SPINDLE ET (81385608302) 64311 RON
39 1 1 V-BELT 5M 775 ET (87230608169) 21361 RON
41 1 1 V-BELT PULLEY ET (81385608221) 19236 RON
66 1 1 ADJUSTING FOOT RD 50 / M 10X35 SCHWARZ (87057111385) 4249 RON
85 1 1 ARBOR TILT SCALE 1,00 45-0 GRAD (81141200468) 3689 RON
88 1 1 HOSE CLAMP RD 90-110 / 12 SKZ (87811036697) 1564 RON
89 1 1 SPIRAL HOSE RD 100X1000 M. KUNSTSTOFFSPI (87854126290) 10288 RON
90 1 1 END SLEEVE 3 RD 54,5/42,6X39 ABSAUGSCHL. (81381212374) 1340 RON
91 1 1 CORRUGATED HOSE RDI 36,2X2000 PROFIL D (87854145449) 13756 RON
92 1 1 END SLEEVE JOINER (81381212943) 105 RON
94 1 1 DUST EXTRACTION PORT (81381214121) 3689 RON
95 1 1 1482608490 - Indisponibil
103 1 1 RIP FENCE EXTRUSION 950 MM (81383193768) 26730 RON
106 1 1 1382608514 - Indisponibil
110 1 1 SWITCH SSK DNB UC230V M=7A K900VB/ST9/KA (88132193542) 117663 RON
112 1 1 CUP SQUARE NECK SCREW M 12X40 VERZ. (86110149253) 781 RON
115 1 1 HEX. SOCKET SET SCREW, CONE PT M 8X10 VE (86162091288) 446 RON
116 1 1 HEXAGON THIN NUT (86205052753) 781 RON
120 1 1 HEXAGON THICK NUT M 8 VERZ. (86204016230) 781 RON
500 1 1 HEXAGON HEAD SCREW M 12X50 VERZ. (86103028165) 781 RON
501 1 1 SPRING LOCK WASHER B 12 VERZ. (86301000306) 446 RON
502 1 1 Washer (86300016705) Indisponibil Indisponibil
504 1 1 HEXAGON HEAD SCREW M 12X40 VERZ. (86103027770) 446 RON
505 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X20 VER (86121000804) 446 RON
506 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
507 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
508 1 1 Serrated lock washer (86304001745) 446 RON
509 1 1 CROSS RECESSED FLAT HEAD SCREW (86131059530) 446 RON
510 1 1 CUP SQUARE NECK SCREW M 6X45 VERZ. (86110000624) 446 RON
511 1 1 WING NUT M 6 GEW.-EINSATZ VERZINKT (87005125213) 446 RON
512 1 1 Washer (86305002087) 446 RON
517 1 1 HEXAGON THIN NUT (86205008460) 1340 RON
518 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X25 VER (86121000820) 446 RON
519 1 1 Washer (86300016322) Indisponibil Indisponibil
520 1 1 CLAMPING SLEEVE (86503001711) 446 RON
521 1 1 PARALLEL PIN 8 m6X32 (86500059123) 446 RON
522 1 1 DEEP GROOVE BALL BEARING 25X52X15 6205-2 (87100010202) 488 RON
523 1 1 6721151466 - Indisponibil
526 1 1 STARKNOB NUT RD40/M 6 (DIN 934) VERZINKT (87000025458) 781 RON
528 1 1 HEXAGON SOCKET HEAD CAP SCREW M 10X25 VE (86127609460) 446 RON
529 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121000910) 446 RON
532 1 1 RATCHET LOCK LEVER, MALE M 8X25 (87006088990) 3689 RON
533 1 1 SPRING LOCK WASHER B 10 VERZ. (86301002554) 446 RON
534 1 1 Hex head screw (86103015675) 446 RON
535 1 1 Cap screw (86121023081) 446 RON
536 1 1 Hex nut (86200002219) 446 RON
537 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
538 1 1 STARKNOB SCREW RD40/M8X33 (DIN 933) VERZ (87001005922) 105 RON
539 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
540 1 1 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
541 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
544 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
546 1 1 MEDIUM WASHER (86300016349) 446 RON
549 1 1 RETAINING WASHER RD 8 VERZ. (86404091580) 446 RON
550 1 1 HEXAGON THIN NUT (86205032396) 446 RON
551 1 1 HEXAGON HEAD SCREW M 12X1,5 LINKS X40 VE (86103085479) 2124 RON
553 1 1 Cap screw (86121000766) 446 RON
554 1 1 HEX.SOCKET COUNTERS.HEAD SCREW (86132127741) 446 RON
555 1 1 HEXAGON NUT M 16X1,5 VERZ. (86200050477) 446 RON
556 1 1 HEXAGON THIN NUT (86205052753) 781 RON
558 1 1 MEDIUM WASHER (86300087696) 446 RON
561 1 1 DEEP GROOVE BALL BEARING (87100016995) 488 RON
563 1 1 CLAMPING SLEEVE 3X16 (86503001657) 446 RON
564 1 1 RETAINING RING FOR SHAFTS 25X1,2 (86400016664) 446 RON
566 1 1 Washer (86300016713) 446 RON
567 1 1 SPRING LOCK WASHER B 16 VERZ. (86301000292) 446 RON
568 1 1 SLOTTED CHEESE HEAD SCREW M 5X55 VERZ. (86120000134) 446 RON
569 1 1 SERRATED LOCK WASHER (86304084039) 446 RON
570 1 1 HEXAGON NUT (86200002200) 446 RON
572 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
702 1 1 1010605381 - Indisponibil
