PKU 250/2,70 DN - 0100251100 11 - 3 / 400V/50Hz
[0100251100 11]
PKU 250/2,70 DN - 0100251100 11 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
PKU 250/2,70 DN - 0100251100 11 - 3 / 400V/50Hz
Click pentru a mari
PKU 250/2,70 DN - 0100251100 11 - 3 / 400V/50Hz
Click pentru a mari
PKU 250/2,70 DN - 0100251100 11 - 3 / 400V/50Hz
Click pentru a mari
PKU 250/2,70 DN - 0100251100 11 - 3 / 400V/50Hz
Click pentru a mari

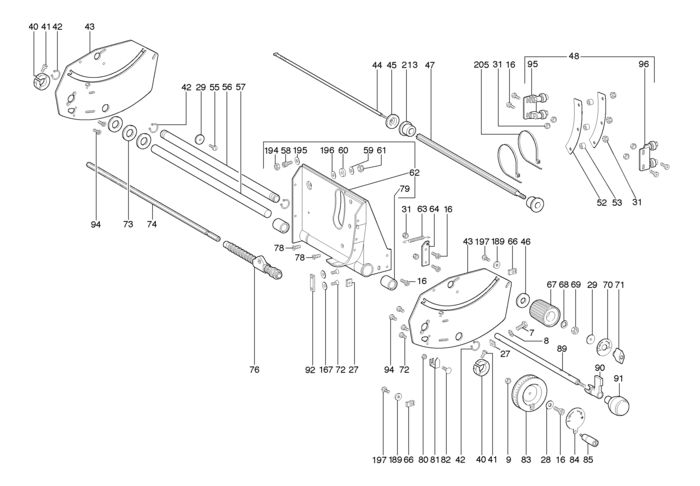

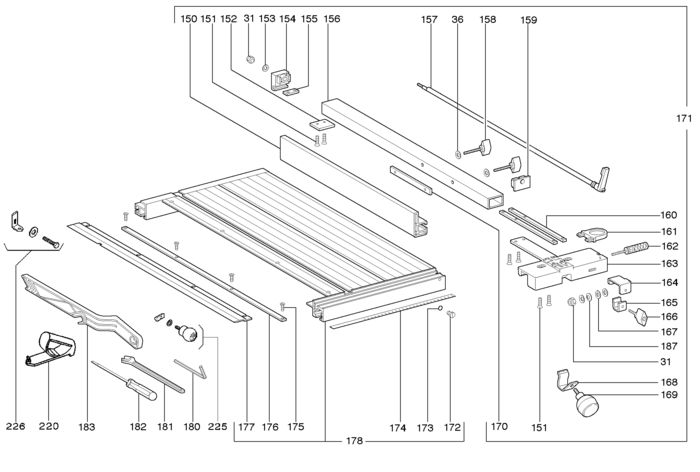

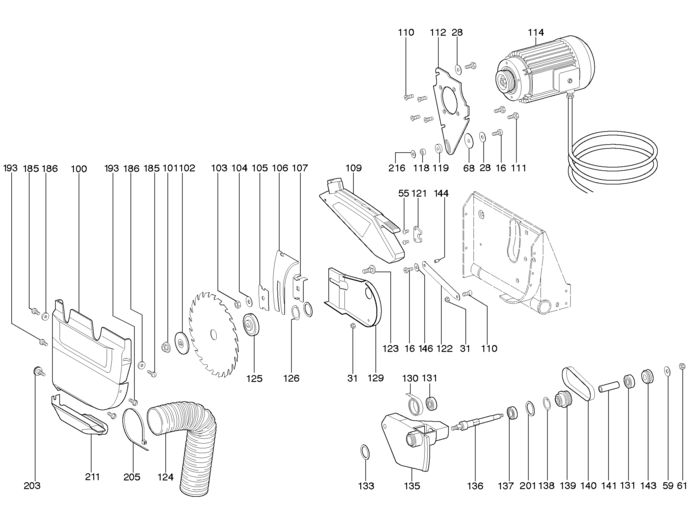

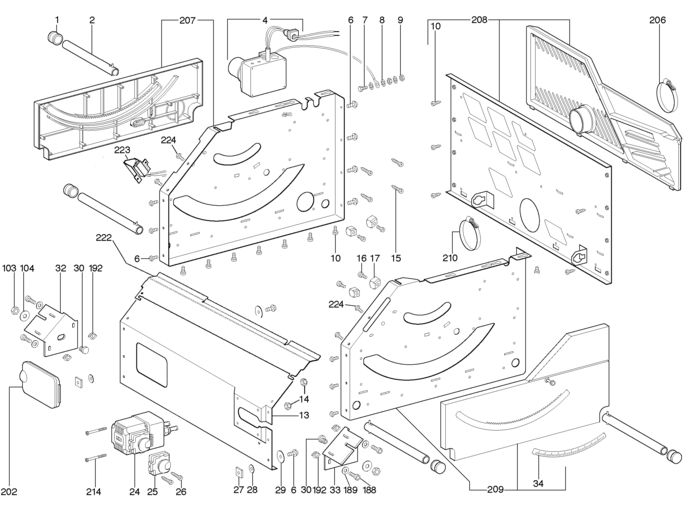

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 HANDLE TKU1693 (81381695022) 781 RON
2 1 4 HANDLE TUBE RD 25X280 TKU1693 (81485695016) 7157 RON
6 1 17 Fillister head screw w.flange (86143661561) 446 RON
7 1 2 HEXAGON HEAD SCREW (86103001143) 446 RON
8 1 4 Serrated lock washer (86304084047) 446 RON
9 1 2 Hex nut (86200002219) 446 RON
10 1 26 Fillister head screw (86172001821) 446 RON
13 1 1 SIDE PANEL BL 1,25X356X712 PKU250 (81382698378) 49212 RON
14 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
15 1 4 86172039616 - Indisponibil
16 1 9 RAISED CHEESE HEAD SCREW M 6X16 VERZ. (86123153659) 446 RON
17 1 4 SEGMENT PKU 250 WN (81388699864) 105 RON
24 1 1 SWITCH KSK 400/3/50 PKU 250 (88133699938) 117663 RON
25 1 1 SWITCH CAP 230V PKU 250 (81381699885) 4249 RON
26 1 2 Fillister head screw (86172100099) 446 RON
27 1 3 GUIDE BLOCK 20X15X4 TKU/PKU (81482697760) 1340 RON
28 1 14 WASHER 6,2X20X2,0 TKU1693 (86341694742) 669 RON
29 1 4 WASHER 6,1X30X2,5 TKU1693 (86341694734) 1340 RON
30 1 2 CAM PLATE RD 16/M10X20 TKU1693 (81385695540) 3689 RON
31 1 14 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
32 1 1 ANGLE BRACKET BL 3,00 PKU250 (81482713250) 488 RON
33 1 1 ANGLE BRACKET BL 3,00 PKU250 (81482713242) 488 RON
34 1 1 ARBOR TILT SCALE 0,50X13 47- -2 GRAD (81142699890) 4249 RON
36 1 6 Washer Washer cod vechi 86300016365 (141151940) 446 RON
40 1 2 CLAMPING RING TKU1693 (86415695002) 8275 RON
41 1 2 HEXAGON SOCKET HEAD CAP SCREW M 5X25 VER (86121140886) 446 RON
42 1 4 RETAINING RING FOR SHAFTS 25X1,2 (86400016664) 446 RON
43 1 2 SWIVEL SEGMENT BL 3,00 TKU1693 (81482694566) 10288 RON
44 1 1 ROD RD 8 TKU1693/PKU250 (81385695051) 11519 RON
45 1 1 WASHER RD45/8,2X4 TKU1693 (81388695028) 1564 RON
46 1 1 WASHER 18,2X45X4,0 TKU1693 (86341694831) 1564 RON
47 1 1 BAR TKU1693 (81383695062) 15993 RON
48 1 1 1010698150 - Indisponibil
52 1 2 GUIDE PLATE BL 2,50X30X192 TKU1693 (81382695298) 1340 RON
53 1 3 SPACER BUSHING RD 16X8 (86442663392) 5479 RON
55 1 7 RAISED CHEESE HEAD SCREW M 5X6 VERZ. (86123149287) 446 RON
56 1 1 GUIDE TUBE RD 25X710 TKU1693 (81485695032) 18341 RON
57 1 1 GUIDE BAR RD 25X722,5 PKU/TKU (81485694931) 30980 RON
58 1 1 THREADED BOLT M15/M8 SW6-INNEN.KT TKU169 (81385695264) 3018 RON
59 1 2 Washer (86305002486) 446 RON
60 1 1 SPACER BUSHING RD 12/8X7 TKU1693 (81385695280) 781 RON
61 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
63 1 1 TENSION SPRING RD 0,63X5,9X46 TKU1693 (87051695571) 1340 RON
64 1 1 LOCKING DEVICE BL 4,00X20X72 TKU1693 (81482695562) 1340 RON
66 1 2 FENCE TKU1693 (81388694978) 1340 RON
67 1 1 HANDWHEEL TKU1693 (81381695073) 488 RON
68 1 1 MEDIUM WASHER A 13 (86300084859) 446 RON
69 1 1 HEXAGON NUT (86200017992) 446 RON
70 1 1 ADHESIVE LABEL RD 57 TKU1693 (81141695084) 1340 RON
71 1 1 WING NUT (87005658068) 781 RON
72 1 2 RAISED CHEESE HEAD SCREW (86123612815) 446 RON
73 1 3 WASHER RD 45/25X4 TKU1693 (81388694994) 669 RON
74 1 1 GUIDE BAR 6KT-14X740 TKU1693 (81381695103) 18341 RON
76 1 1 LOCKING DEVICE TKU1693 (81380695126) 11519 RON
78 1 3 HEX.SOCKET COUNTERS.HEAD SCREW M 6X35 VE (86132707349) 669 RON
79 1 2 LINEAR BALL BEARING RD 25/35X40 LBBR25-2 (87121718825) 24046 RON
80 1 1 HEXAGON NUT (86200002200) 446 RON
81 1 1 POINTER BL 1,00 TKU1693 (81382695557) 190 RON
82 1 1 CUP SQUARE NECK SCRE M 5X8 VERZ. (86110008030) 669 RON
83 1 1 HANDWHEEL TKU1693 (81381695162) 5926 RON
84 1 1 ADHESIVE LABEL RD 69,5 TKU1693 (81141695203) 2124 RON
89 1 1 PISTON ROD RD 16X469 PKU/TKU (81485695300) 15993 RON
90 1 1 LOCKING LEVER TKU1693 (81381695588) 1340 RON
91 1 1 HANDLE, LOWER TKU1693 (81388695311) 190 RON
92 1 1 RETENTION PLATE BD TKU1693 (81482695090) 781 RON
94 1 4 Countersunk screw (86132175169) 446 RON
95 1 1 MOUNTING BRACKET KPL. TKU1693 (81010695348) 13756 RON
96 1 1 MOUNTING BRACKET KPL. TKU1693 (81010695330) 13756 RON
100 1 1 SAW BLADE GUARD TKU1693 (81381695499) 955 RON
101 1 1 NUT M10 LH-8 TKU1693 (81485695636) 1564 RON
102 1 1 1385695612 - Indisponibil
103 1 3 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
104 1 3 WASHER (86305002494) 446 RON
105 1 1 PRESSURE PLATE BL 3,00 TKU1693 (81482695457) 1340 RON
106 1 1 SPLITTING BLADE PKU 250 (81382738868) 18341 RON
107 1 1 RIV.KNIFE GUIDE BL 3,00 TKU1693 (81482695465) 2459 RON
109 1 1 SAW BLADE GUARD WITH SUCTION PORT (81010698878) 19236 RON
110 1 5 Countersunk screw (86132087995) Indisponibil Indisponibil
111 1 3 HEXAGON HEAD SCREW M 6X16 VERZ.FLECKBESC (86103001356) 446 RON
112 1 1 LATERAL BAFFLE BL 3,00 TKU1693 (81382695395) 8275 RON
114 1 1 ELECTRIC MOTOR M.SCHALTER U.STECKD. PKU (81010740378) 442359 RON
118 1 1 SPACER BUSHING RD8/6X5,7 TKU1693 (81485695180) 781 RON
119 1 1 SPACER RING RD11,9/8,1X3 TKU1693 (81485695199) 105 RON
121 1 1 RETENTION PLATE BD TKU1693 (81482695139) 105 RON
122 1 1 GUIDER BL 3,00X25X194 TKU1693 (81482695473) 3018 RON
123 1 1 CUP SQUARE NECK SCREW M 10X25 VERZ. (86110085743) 446 RON
124 1 1 SUCTION HOSE RD 80X640 TKU1693 (81388695532) 13756 RON
125 1 1 BLADE COLLAR, INNER RD 63/30X13 TKU1693 (81385695604) 11519 RON
126 1 1 Retaining ring shaft (86400121387) 446 RON
129 1 1 RIVING KNIFE CARRIER TKU/PKU (81482695430) 955 RON
130 1 1 SPRING AUSZUGL?NGE 480MM M. TKU1693 (87052695214) 7157 RON
131 1 2 DEEP GROOVE BALL BEARING 12X37X12 6301-2 (87100694845) 8275 RON
133 1 1 6341694807 - Indisponibil
135 1 1 SPINDLE BEARING TKU1693 (81380694910) 21361 RON
136 1 1 SAEGEBLATTWELLE TKU1693 RD24/11,5X171,5 (81385695221) 8275 RON
137 1 1 DEEP GROOVE BALL BEARING (87100074090) 3689 RON
138 1 1 CIRCLIP FOR BORES J 35X1,5 (86401009963) 446 RON
139 1 1 POLY-RIB PULLEY 7J / RDA 45X35 TKU1693 (81385695230) 10288 RON
140 1 1 Poly-rib belt 7 PJ 381 RIEMENH?HE 3,5-0, (87233710304) 8275 RON
141 1 1 SPACER TUBE RD20/14X50 TKU1693 (81385695248) 2459 RON
143 1 1 V-BELT PULLEY RDA 39X13 TKU1693 (87240695256) 5926 RON
144 1 1 BEARING RING 6,5X8X4,8 TKU1693 (81388695176) 669 RON
146 1 1 WAVE SPRING WASHER A 8 VERZ. (86302027860) 446 RON
150 1 1 GUIDE RAIL 700MM TKU1693 (81383695810) 24046 RON
151 1 6 SLOTTED FLAT HEAD SCREW M 6X20 VERZ. (86130019585) 446 RON
152 1 1 SUPPORT 7X29X38 TKU/PKU (81388695729) 3018 RON
153 1 1 Washer (86300016322) Indisponibil Indisponibil
154 1 1 FENCE CLAMP TKU1693 (81380695746) 5926 RON
155 1 1 THREADED PLATE FL 4,00X16X31,5 TKU1693 (81482695716) 105 RON
156 1 1 GUIDE TUBE 30X40X863,5 TKU1693 (81383695682) 24046 RON
157 1 1 RATCHET LOCK LEVER WITH ROD TKU1693 (81388695702) 18341 RON
158 1 2 THUMB SCREW M 6X50 (GESAMTL.73) (86150663367) 2459 RON
159 1 1 PLU TKU1693 (81381695731) 105 RON
160 1 2 SLOT STRIP FL 6,00X10,2X175 TKU1693 (81382695697) 3689 RON
161 1 1 MAGNIFYING GLASS MIT FASSUNG TKU1693 (81381698145) 3689 RON
163 1 1 1380698133 - Indisponibil
164 1 1 CLAMPING BRIDGE BL 2,50 TKU1693 (81382695751) 3018 RON
165 1 1 STRAP BL 2,50 TKU1693 (81382695760) 1564 RON
166 1 1 6150663324 - Indisponibil
167 1 2 WASHER 6,2X12X0,5 TKU1693 (86341694793) 669 RON
168 1 1 CLAMPING PLATE (81382660028) 190 RON
170 1 1 SLOT STRIP FL 6,00X16X150 TKU1693 (81482695805) 3018 RON
171 1 1 RIP FENCE KPL. TKU1693/PKU250 (81010695658) 137236 RON
172 1 1 SLOTTED CHEESE HEAD SCREW M 4X8 VERZ. (86120000010) 446 RON
173 1 1 7632183687 - Indisponibil
174 1 1 SCALE 12,45X347 0,00-25,00 CM (81142699903) 5479 RON
177 1 1 1383699912 - Indisponibil
178 1 1 TABLE KPL. PKU250 (81010698398) 171574 RON
180 1 1 ALLEN HEXAGON KEY SW 5X65/45 SCHWARZ (89102078494) 781 RON
181 1 1 OPEN END SPANNER SW 17 (89101695147) 488 RON
182 1 1 SCHRAUBENDREHER SCHLITZ (89109695154) 2459 RON
183 1 1 Push stick (81394201630) 3018 RON
185 1 2 SLOTTED CHEESE HEAD SCREW M 4X10 VERZ. (86120000029) 446 RON
186 1 2 Washer (86305002460) 446 RON
187 1 2 7053695790 - Indisponibil
188 1 4 HEXAGON SOCKET HEAD CAP SCREW (86121000731) 446 RON
189 1 2 Washer (86305002087) 446 RON
192 1 4 SQUARE NUT M 6 VERZ. (86218663557) 669 RON
193 1 3 RAISED CHEESE HEAD SCREW M 4X6 VERZ. (86123025057) 446 RON
194 1 1 HEXAGON THIN NUT M 15X1,0 TKU1693 (86205695271) 190 RON
195 1 1 WASHER 15,2X21,9X1,0 TKU1693 (86341694777) 669 RON
196 1 1 WASHER 8,5X28X1,0 TKU1693 (86341694769) 669 RON
197 1 2 HEXAGON HEAD SCREW M 6X10 VERZ. (86103015934) 446 RON
201 1 1 WASHER 31,8X34,8X0,1 TKU1693 (86341694815) 781 RON
202 1 1 LID TKU1693 (81388695591) 2124 RON
203 1 1 KNURLED THUMB SCREW M 4X12 TKU1693 (86143695504) 2459 RON
205 1 3 CABLE TIE 4,8X390 TKU1693 (88490695410) 781 RON
206 1 1 HOSE CLAMP RD 90-110 / 12 SKZ (87811036697) 1564 RON
207 1 1 REAR PANEL KPL. PKU250 (81010698363) 64311 RON
208 1 1 SIDE PANE KPL. PKU250 (81010698380) 64311 RON
209 1 1 FRONT PANEL KPL. PKU250 (81010698355) 68673 RON
210 1 1 HOSE CLAMP RD 70-90 / 12 SKZ (87811078888) 2459 RON
211 1 1 DUST EXTRACTION PORT TKU1693 (81381695480) 3689 RON
213 1 2 COLLAR BUSHING RD 45 TKU1693 (81485695040) 3689 RON
214 1 2 RAISED CHEESE HEAD SCREW M 5X65 VERZ. TK (86123695427) 669 RON
216 1 1 WASHER 6,1X17,5X0,15 TKU1693 (86341694823) 669 RON
220 1 1 SLIDING HANDLE RED (81388680470) 15993 RON
222 1 1 Protection plate PKU250 BL 1,50x123x772 (81382738914) 21361 RON
223 1 1 Protection plate PKU250 BL 131x70,5x1,5 (81382740315) 5926 RON
225 1 1 Assembly Group Handle PKU 250 (81010738853) 3018 RON
226 1 1 1010738845 - Indisponibil
