Top » Piese de schimb » PIESE METABO » 0192593441 11

PKF255 V8 WNB-1800 - 0192593441 11 - EU 230V
[0192593441 11]
PKF255 V8 WNB-1800 - 0192593441 11 - EU 230V
Click pentru a mari
Imagini suplimentare
PKF255 V8 WNB-1800 - 0192593441 11 - EU 230V
Click pentru a mari
PKF255 V8 WNB-1800 - 0192593441 11 - EU 230V
Click pentru a mari
PKF255 V8 WNB-1800 - 0192593441 11 - EU 230V
Click pentru a mari
PKF255 V8 WNB-1800 - 0192593441 11 - EU 230V
Click pentru a mari
PKF255 V8 WNB-1800 - 0192593441 11 - EU 230V
Click pentru a mari

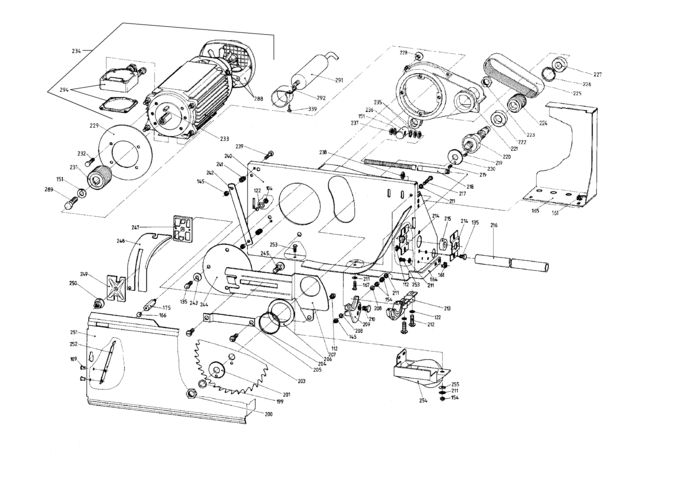

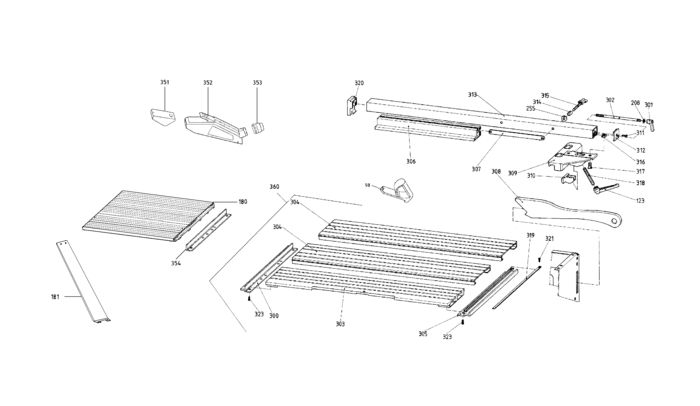

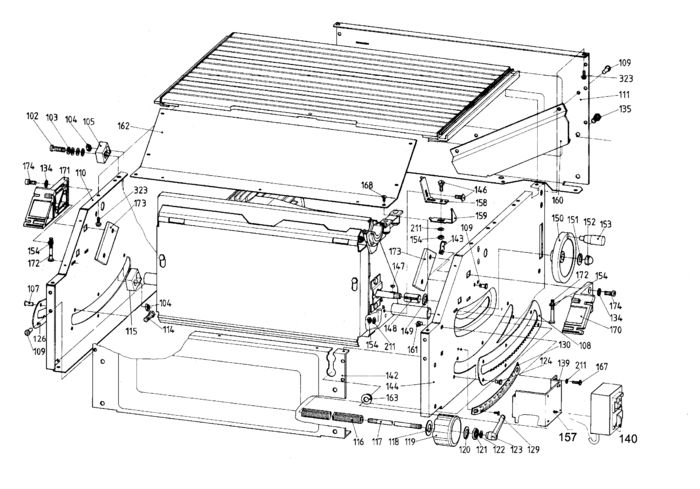

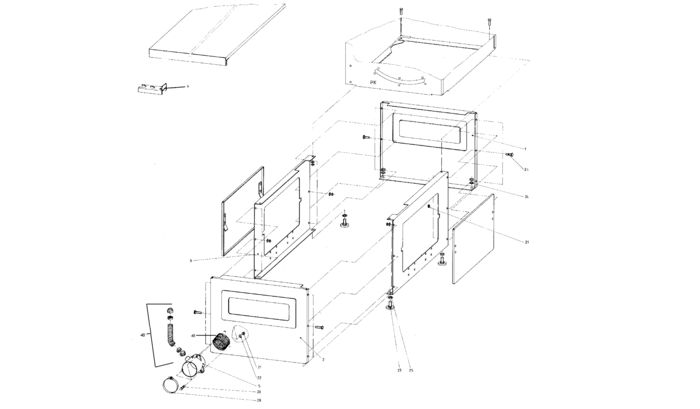

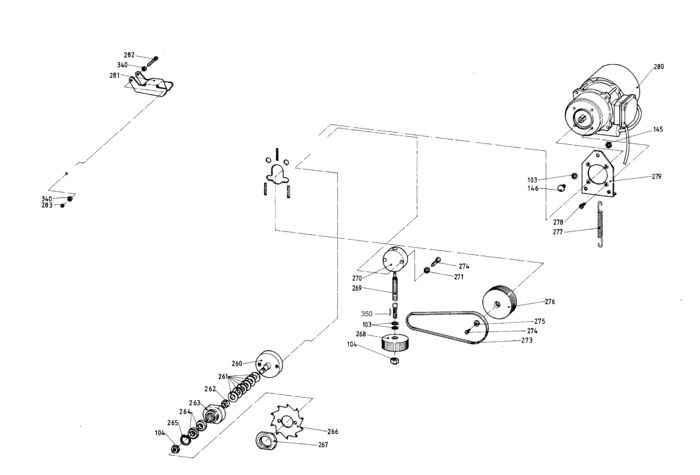

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FRONT PANEL BL 2,00X607X690 (81392207038) 34448 RON
2 1 1 REAR PANEL BL 2X607X690 (81392207127) 34448 RON
3 1 1 SIDE PANEL BL 2,00X607X670 (81392207020) 30980 RON
5 1 1 DUST EXTRACTION PORT (81381214121) 3689 RON
6 1 1 HOSE CARRIER BL 2,5X107X193,5 (81482216753) 7157 RON
20 1 1 Hex head screw (86103015675) 446 RON
21 1 2 Flange nut (86209114230) 446 RON
22 1 1 Serrated lock washer (86304084047) 446 RON
23 1 1 ADJUSTING FOOT RD 50 / M 10X35 SCHWARZ (87057111385) 4249 RON
24 1 1 MEDIUM WASHER (86300016349) 446 RON
25 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
26 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
28 1 1 HOSE CLAMP RD 90-110 / 12 SKZ (87811036697) 1564 RON
40 1 1 SUCTION HOS 2800 MM PKF255V8 (81010728408) 24046 RON
41 1 1 SPIRAL HOSE RD 100X1000 M. KUNSTSTOFFSPI (87854126290) 10288 RON
98 1 1 SLIDING HANDLE RED (81388680470) 15993 RON
102 1 2 Cap screw (86121000812) 446 RON
103 1 1 Cup spring (87053016795) 446 RON
104 1 5 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
105 1 1 Locking element,A (81380207482) 2124 RON
108 1 1 TOOTHED PLATE (81492200723) 5479 RON
109 1 1 BLIND RIVET, MUSHROOM HEAD 6X8 F FLACHRU (86621009530) 446 RON
110 1 1 REAR PANEL BL 2X415X690 (81382217051) 34448 RON
111 1 1 SIDE PANEL (81392200211) 19236 RON
112 1 3 HEXAGON NUT (86200002235) Indisponibil Indisponibil
114 1 1 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208) 446 RON
115 1 1 Locking element,B (81380207474) 2124 RON
116 1 1 Rack (81393200746) 955 RON
117 1 1 Feed rod (81495207516) 3018 RON
118 1 1 MEDIUM WASHER (86300087696) 446 RON
119 1 1 Selector wheel (81391200390) 2459 RON
120 1 1 Washer (86300016713) 446 RON
121 1 1 HEXAGON THIN NUT (86205032396) 446 RON
122 1 2 Washer (86300016322) Indisponibil Indisponibil
123 1 1 RATCHET LOCK LEVER, FEMALE (87006028653) Indisponibil Indisponibil
124 1 1 BLIND RIVET, MUSHROOM HEAD (86621010407) 446 RON
126 1 1 TOOTHED PLATE (81482685826) 955 RON
129 1 1 Fillister head screw (86172016683) 446 RON
130 1 1 ARBOR TILT SCALE 1,00 45-0 GRAD (81141200468) 3689 RON
134 1 1 Serrated lock washer (86304001745) 446 RON
135 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
139 1 1 SWITCH PLATE BL 2,99X84X240,18 (81382217027) 8275 RON
140 1 1 SWITCH SSK UC230V K3000/NKA6/2XKA6/PKR (88132719650) 171574 RON
142 1 1 SIDE PANEL BL 2X288X670 LINKS (81382217043) 26730 RON
143 1 1 Cable clip (88242680333) 781 RON
144 1 1 FRONT PANEL BL 2X415X690 (81382217060) 3698 RON
145 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
146 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
147 1 1 WOODRUFF KEY (86720008538) 446 RON
148 1 1 SPACER SLEEVE (86442200309) 105 RON
149 1 1 Washer (86300019984) 446 RON
150 1 1 HANDWHEEL (87003087322) 11519 RON
151 1 3 Washer (86300016705) Indisponibil Indisponibil
152 1 1 CAP NU (86201074264) 105 RON
153 1 1 7004076740 - Indisponibil
154 1 1 Hex nut (86200002219) 446 RON
157 1 1 86172032905 - Indisponibil
158 1 1 BEVEL TILT INDICATOR (81482214718) 781 RON
159 1 1 BEVEL TILT INDICATOR BRACKET (81482214700) 781 RON
160 1 1 PUSH STICK SHEATH (81382214699) 5926 RON
161 1 1 CAGE NUT (86264166657) 446 RON
162 1 1 COVER PLATE BL 2,00X210X673 (81382217035) 955 RON
163 1 1 STRAIN RELIEF ZEV 9-12/PG 11 (88240015090) 1340 RON
164 1 1 BRACKET (81382214737) 488 RON
165 1 1 GUARD PLATE (81382214745) 18341 RON
166 1 1 HEXAGON HEAD SCREW M 5X10 VERZ. (86143036802) 446 RON
167 1 1 Hex head screw (86103001135) 446 RON
168 1 1 86172015687 - Indisponibil
170 1 1 EXTRUSION BRACKET (81380214985) 10288 RON
171 1 1 EXTRUSION BRACKET HINTEN (81380214977) 10288 RON
172 1 1 SET SCREW M 6 X 55 (81485221006) 2459 RON
173 1 1 FASTENING STRAP FL 8X30X93 (81482214963) 488 RON
174 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X20 VER (86121000804) 446 RON
175 1 1 SPACING BOLT SW 13X64 (81485211558) 1564 RON
180 1 1 TABLE ZUSATZTISCH-PKF255 (81010723589) 59166 RON
181 1 1 Support,TVL (81382723313) 18341 RON
199 1 1 SHIM RING (86306028055) 446 RON
200 1 1 1485211825 - Indisponibil
201 1 1 Two-way flange (81485727120) 955 RON
203 1 2 BEARING BOLT (81395200611) 1340 RON
204 1 1 RETAINING RING FOR SHAFTS (86400087588) 105 RON
205 1 1 PILOT LINK PLATE (81392200343) 781 RON
206 1 1 BALL BEARING SHIM RING (87140006941) 1340 RON
207 1 1 RIVING KNIFE CARRIER PLATE (81392207151) 5479 RON
208 1 2 Washer Washer cod vechi 86300016365 (141151940) 446 RON
209 1 1 SWIVEL SEGMENT, PAIR (82390200199) 8275 RON
210 1 1 HEXAGON HEAD SCREW M 10X20 VERZ. (86103005270) 446 RON
211 1 1 Serrated lock washer (86304084047) 446 RON
213 1 1 TABLE SECTION (82390200202) 8275 RON
214 1 1 BEARING PLATE (81392200289) 781 RON
215 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
216 1 1 SETTING TUBE (81393207503) 8275 RON
217 1 1 HEXAGON HEAD SCREW (86103000430) 446 RON
218 1 1 FEED SPINDLE RD 16X565 (81495024381) 18341 RON
219 1 1 CLAMPING SLEEVE (86503001711) 446 RON
220 1 1 SAW BLADE SPINDLE (81385213669) 2848 RON
221 1 1 Gear housing (81390200753) 39481 RON
222 1 1 DEEP GROOVE BALL BEARING (87100016812) 5479 RON
223 1 1 HEXAGON THIN NUT (86205052753) 781 RON
224 1 1 POLY-RIB PULLEY (81395200050) 955 RON
225 1 1 POLY-RIB BELT (87233087313) 11519 RON
226 1 1 Retaining ring shaft (86401121364) 446 RON
227 1 1 DEEP GROOVE BALL BEARING (87100016995) 488 RON
228 1 1 HEXAGON HEAD SCREW (86103102632) 446 RON
229 1 1 CAM PLATE (81392200360) 2124 RON
230 1 1 BLADE COLLAR (81485727112) 955 RON
231 1 1 POLY-RIB PULLEY (81395200980) 13756 RON
232 1 1 Cap screw (86121023081) 446 RON
233 1 1 Parallel key (86721059322) 446 RON
234 1 1 ELECTRIC MOTOR ? (88012688459) 137236 RON
235 1 1 HEXAGON NUT (86200017992) 446 RON
236 1 1 PULL BOLT (81395200271) 4249 RON
237 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202024139) 446 RON
238 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
239 1 1 Truss head screw (86110029436) 446 RON
240 1 1 CHIP CASE PK MIT VORRITZER (81010214218) 54357 RON
241 1 1 PRESSURE SPRING (87051207240) 446 RON
242 1 1 GUIDE BRACKET (81482111056) 1564 RON
243 1 1 CUP SPRING (87053075104) 446 RON
244 1 1 COVER PLATE (81392200084) 2124 RON
245 1 1 CUP SQUARE NECK SCREW (86110000691) 781 RON
247 1 1 riving knife carrier (82380075353) 4249 RON
248 1 1 Riving knife (81392200122) 5926 RON
249 1 1 PRESSURE PLATE BL 2,99X80X60 (81382213749) 781 RON
250 1 1 FLANGE NUT (86209002432) 105 RON
251 1 1 CHIP CASE COVER BL 1,5X318X637 (81382213803) 18341 RON
252 1 1 HOOK (81392200386) 781 RON
253 1 1 Hex head screw (86103015675) 446 RON
254 1 1 DUST EXTRACTION PORT (81391200501) 488 RON
255 1 1 Washer (86305002087) 446 RON
260 1 1 AXLE RD 60X47 (81495204347) 13756 RON
261 1 1 CUP SPRING (87053063343) 446 RON
262 1 1 BUSHING RD 18X9 (81495204371) 3689 RON
263 1 1 BLADE COLLAR SW 41X27,5 (81485214026) 15993 RON
264 1 1 DEEP GROOVE BALL BEARING 9X24X7 609 -2RS (87100063675) 4249 RON
265 1 1 CIRCLIP FOR BORES 24X1,2 (86401087590) 446 RON
266 1 1 0910052489 - Indisponibil
267 1 1 BLADE COLLAR, OUTER RD 50X10 (81495204363) 955 RON
268 1 1 SETTING KNOB RD 62 MIT NUT 2MM (81388719547) 190 RON
269 1 1 THREADED RO RD 10X323 M8/M10 (81395204390) 15993 RON
270 1 1 PRESSURE PLATE RD 57X20 (81495204339) 19236 RON
271 1 1 CUP SPRING (87053081619) 446 RON
273 1 1 POLY-RIB BELT 3 PJ 356 (87233172221) 3689 RON
274 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X16 VE (86131178687) 446 RON
275 1 1 WASHER RDA 15,5 RDI 4,5X3,5 (81485214166) 781 RON
276 1 1 POLY-RIB PULLEY 3JX75 / RDA 75X28 RDI 11 (81385214150) 19236 RON
277 1 1 TENSION SPRING RDI 12X107,5X2 (87051214204) 190 RON
278 1 1 Countersunk screw (86132175169) 446 RON
279 1 1 MOTOR PLATE BL 2,99X90X131,6 (81482214149) 13756 RON
280 1 1 ELECTRIC MOTOR PKR V8 1X230V 50 HZ 2800U (88012214260) Indisponibil Indisponibil
281 1 1 1382214290 - Indisponibil
282 1 1 RAISED CHEESE HEAD SCREW M 4X45 VERZ. (86123002030) 446 RON
283 1 1 HEXAGON NUT, PREV. TORQUE TYPE M 4 VERZ. (86202065412) 446 RON
288 1 1 FAN WING+FAN COVER TKHS 315 D&D ET (81010722000) 3689 RON
289 1 1 Hex head screw (86103001267) 781 RON
291 1 1 Condenser (88050011810) 955 RON
292 1 1 CAPACITOR CLAMP BL 0,88X35X178,5 RDI 44 (81332025186) 1564 RON
294 1 1 TERMINAL BOX ASSEMBLY 2,5 - 3,1 KW D&D (81010726545) 5926 RON
300 1 1 TABLE END EXTRUSION II 405,5 MM (81383211529) 7157 RON
301 1 1 Clamping lever (87006072385) 2459 RON
302 1 1 FEED ROD RD 5,2X994 /M6X10/30 PKF (81485723702) 2459 RON
303 1 1 TABLE SUPPORT EXTRUSION 790 MM TISCH-PKF (81383723740) 73930 RON
304 1 1 TABLE EXTRUSION TISCH-PK255/PKF (81383723430) 2848 RON
305 1 1 TABLE GUIDE EXTRUSION 405,5 MM (81383217101) 15993 RON
306 1 1 AUXILIARY FENCE EXTRUSION 700 MM (81383214447) 18341 RON
307 1 1 GLIDE RAIL FL 16X5X230 PARALLELANSCHLAG (81482214548) 3689 RON
308 1 1 Push stick (81394201630) 3018 RON
309 1 1 CLAMPING PAD (81380220683) 26730 RON
310 1 1 LOCK PLATE (81380222031) 4249 RON
311 1 1 Self-tapp. counters. screw (86174155800) 446 RON
312 1 1 END PIECE, FRONT (81380211480) 1340 RON
313 1 1 FENCE CARRIER EXTRUSION 966 MM PKF (81383723716) 33553 RON
314 1 1 SPACER SLEEVE RD 15/6X18 (86442025779) Indisponibil Indisponibil
315 1 1 THUMB SCREW M 6X68 (86150190299) 105 RON
316 1 1 SQUARE NUT (86218005126) 446 RON
317 1 1 CROSS RECESSED FLAT HEAD SCREW (86131009460) 446 RON
318 1 1 HEX. SOCKET SET SCREW, DOG PT. (86163198736) 1564 RON
319 1 1 SCALE 0,50X9,3X401 0,00-39,80 CM (81142217070) 3689 RON
320 1 1 CLAMPING PIECE (81380211498) 3689 RON
321 1 1 Fillister head screw (86172091014) 446 RON
323 1 1 HEX.HEAD COLLAR DRILLING SCREW (86144063978) 446 RON
339 1 1 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
340 1 1 MEDIUM WASHER (86300016330) 446 RON
350 1 1 WOODRUFF KEY 2X3,7 (86720151241) 446 RON
351 1 1 DISC GUARD VORRITZEINR.PKU250 (81010699122) 488 RON
352 1 1 SAW BLADE GUARD ASSEMBLY (SCHWARZ)PKU25 (81010698410) 13756 RON
353 1 1 ADAPTOR, SUCTION PORT M.BAJONETTANSCHLU (81381727099) 955 RON
354 1 1 END PLAT BL 2,00X72X343 TVL-PKF (81382727211) 7157 RON
360 1 1 TABLE PKF255 (81010723481) 14839 RON
