Top » Piese de schimb » PIESE METABO » 0102592212 10

PKF 255/2,50 WN - 0102592212 10 - GB 230V
[0102592212 10]
PKF 255/2,50 WN - 0102592212 10 - GB 230V
Click pentru a mari
Imagini suplimentare
PKF 255/2,50 WN - 0102592212 10 - GB 230V
Click pentru a mari
PKF 255/2,50 WN - 0102592212 10 - GB 230V
Click pentru a mari
PKF 255/2,50 WN - 0102592212 10 - GB 230V
Click pentru a mari

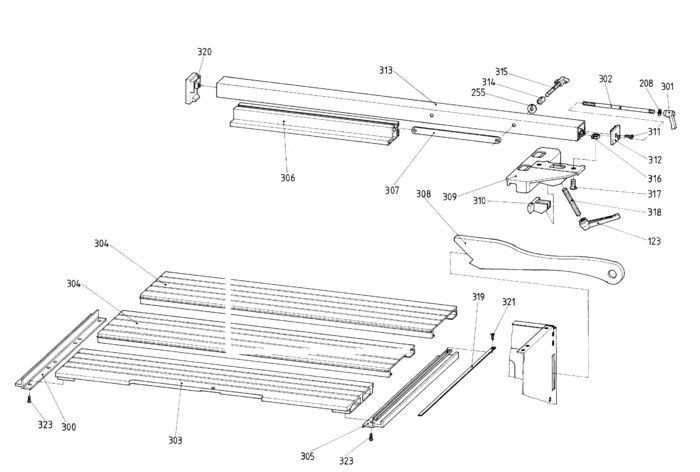

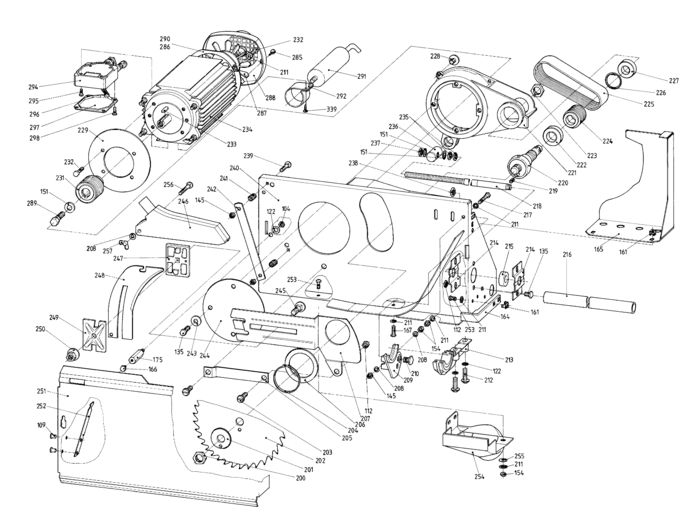

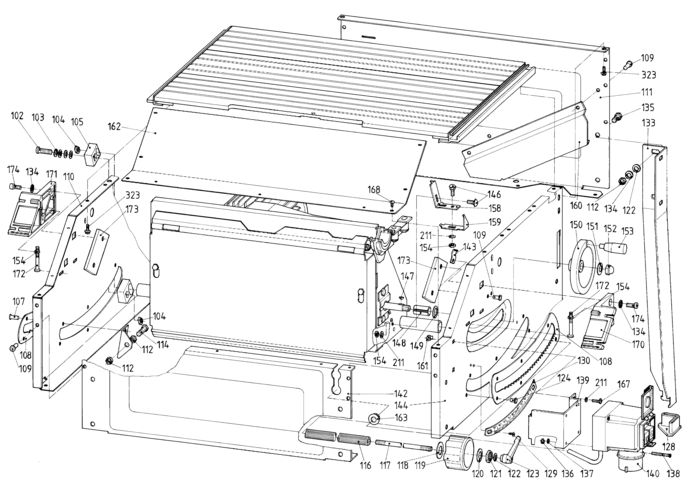

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
102 1 1 Cap screw (86121000812) 446 RON
103 1 1 Cup spring (87053016795) 446 RON
104 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
105 1 1 Locking element,A (81380207482) 2124 RON
108 1 1 TOOTHED PLATE (81492200723) 5479 RON
109 1 1 BLIND RIVET, MUSHROOM HEAD 6X8 F FLACHRU (86621009530) 446 RON
110 1 1 REAR PANEL BL 2X415X690 (81382217051) 34448 RON
111 1 1 SIDE PANEL (81392200211) 19236 RON
112 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
114 1 1 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208) 446 RON
115 1 1 Locking element,B (81380207474) 2124 RON
116 1 1 Rack (81393200746) 955 RON
117 1 1 Feed rod (81495207516) 3018 RON
118 1 1 MEDIUM WASHER (86300087696) 446 RON
119 1 1 Selector wheel (81391200390) 2459 RON
120 1 1 Washer (86300016713) 446 RON
121 1 1 HEXAGON THIN NUT (86205032396) 446 RON
122 1 1 Washer (86300016322) Indisponibil Indisponibil
123 1 1 RATCHET LOCK LEVER, FEMALE (87006028653) Indisponibil Indisponibil
124 1 1 BLIND RIVET, MUSHROOM HEAD (86621010407) 446 RON
129 1 1 Fillister head screw (86172016683) 446 RON
130 1 1 ARBOR TILT SCALE 1,00 45-0 GRAD (81141200468) 3689 RON
134 1 1 Serrated lock washer (86304001745) 446 RON
135 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
136 1 1 HEXAGON NUT (86200002197) 446 RON
137 1 1 Serrated lock washer (86304084020) 446 RON
138 1 1 RAISED CHEESE HEAD SCREW M 4X45 VERZ. (86123002030) 446 RON
139 1 1 SWITCH PLATE BL 2,99X84X240,18 (81382217027) 8275 RON
140 1 1 SWITCH KSK WN UC230V M11,0 A K700/NKA3/K (88133630512) 78180 RON
142 1 1 SIDE PANEL BL 2X288X670 LINKS (81382217043) 26730 RON
143 1 1 CABLE CLIP (87052078118) 446 RON
144 1 1 FRONT PANEL BL 2X415X690 (81382217060) 3698 RON
145 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
146 1 1 CUP SQUARE NECK SCREW (86110000594) 446 RON
147 1 1 WOODRUFF KEY (86720008538) 446 RON
148 1 1 SPACER SLEEVE (86442200309) 105 RON
149 1 1 Washer (86300019984) 446 RON
150 1 1 HANDWHEEL (87003087322) 11519 RON
151 1 1 Washer (86300016705) Indisponibil Indisponibil
152 1 1 CAP NU (86201074264) 105 RON
153 1 1 7004076740 - Indisponibil
154 1 1 Hex nut (86200002219) 446 RON
158 1 1 BEVEL TILT INDICATOR (81482214718) 781 RON
159 1 1 BEVEL TILT INDICATOR BRACKET (81482214700) 781 RON
160 1 1 PUSH STICK SHEATH (81382214699) 5926 RON
161 1 1 CAGE NUT (86264166657) 446 RON
162 1 1 COVER PLATE BL 2,00X210X673 (81382217035) 955 RON
163 1 1 GROMMET (88241062237) 446 RON
164 1 1 BRACKET (81382214737) 488 RON
165 1 1 GUARD PLATE (81382214745) 18341 RON
166 1 1 HEXAGON HEAD SCREW M 5X10 VERZ. (86143036802) 446 RON
167 1 1 Hex head screw (86103001135) 446 RON
168 1 1 86172015687 - Indisponibil
170 1 1 EXTRUSION BRACKET (81380214985) 10288 RON
171 1 1 EXTRUSION BRACKET HINTEN (81380214977) 10288 RON
172 1 1 SET SCREW M 6 X 55 (81485221006) 2459 RON
173 1 1 FASTENING STRAP FL 8X30X93 (81482214963) 488 RON
174 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X20 VER (86121000804) 446 RON
175 1 1 SPACING BOLT SW 13X64 (81485211558) 1564 RON
200 1 1 1485211825 - Indisponibil
201 1 1 BLADE COLLAR, OUTER RD 57,5X5 (81395201731) 3689 RON
202 1 1 1386120133 - Indisponibil
203 1 1 BEARING BOLT (81395200611) 1340 RON
204 1 1 RETAINING RING FOR SHAFTS (86400087588) 105 RON
205 1 1 PILOT LINK PLATE (81392200343) 781 RON
206 1 1 BALL BEARING SHIM RING (87140006941) 1340 RON
207 1 1 RIVING KNIFE CARRIER PLATE (81392207151) 5479 RON
208 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
209 1 1 SWIVEL SEGMENT, PAIR (82390200199) 8275 RON
210 1 1 HEXAGON HEAD SCREW M 10X20 VERZ. (86103005270) 446 RON
211 1 1 Serrated lock washer (86304084047) 446 RON
213 1 1 TABLE SECTION (82390200202) 8275 RON
214 1 1 BEARING PLATE (81392200289) 781 RON
215 1 1 DEEP GROOVE BALL BEARING (87100136915) Indisponibil Indisponibil
216 1 1 SETTING TUBE (81393207503) 8275 RON
217 1 1 HEXAGON HEAD SCREW (86103000430) 446 RON
218 1 1 FEED SPINDLE RD 16X565 (81495024381) 18341 RON
219 1 1 CLAMPING SLEEVE (86503001711) 446 RON
220 1 1 SAW BLADE SPINDLE RD 57X137 AUFNAHME RD (81385212867) 26730 RON
221 1 1 Gear housing (81390200753) 39481 RON
222 1 1 DEEP GROOVE BALL BEARING (87100016812) 5479 RON
223 1 1 HEXAGON THIN NUT (86205052753) 781 RON
224 1 1 POLY-RIB PULLEY (81395200050) 955 RON
225 1 1 POLY-RIB BELT (87233087313) 11519 RON
226 1 1 Retaining ring shaft (86401121364) 446 RON
227 1 1 DEEP GROOVE BALL BEARING (87100016995) 488 RON
228 1 1 HEXAGON HEAD SCREW (86103102632) 446 RON
229 1 1 CAM PLATE (81392200360) 2124 RON
231 1 1 POLY-RIB PULLEY (81395200980) 13756 RON
232 1 1 Cap screw (86121023081) 446 RON
233 1 1 Parallel key (86721059322) 446 RON
234 1 1 MOTOR, PRECISION CIRCULAR SAW 2,50 WN (81010630530) 270112 RON
235 1 1 HEXAGON NUT (86200017992) 446 RON
236 1 1 PULL BOLT (81395200271) 4249 RON
237 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
238 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
239 1 1 Truss head screw (86110029436) 446 RON
240 1 1 CHIP CASE (81010214773) 4442 RON
241 1 1 PRESSURE SPRING (87051207240) 446 RON
242 1 1 GUIDE BRACKET (81482111056) 1564 RON
243 1 1 CUP SPRING (87053075104) 446 RON
244 1 1 COVER PLATE (81392200084) 2124 RON
245 1 1 CUP SQUARE NECK SCREW (86110000691) 781 RON
246 1 1 SAW BLADE GUARD WITH SUCTION PORT (81010698878) 19236 RON
247 1 1 riving knife carrier (82380075353) 4249 RON
248 1 1 Riving knife (81392200122) 5926 RON
249 1 1 PRESSURE PLATE BL 2,99X80X60 (81382213749) 781 RON
250 1 1 FLANGE NUT (86209002432) 105 RON
251 1 1 CHIP CASE COVER BL 1,5X318X637 (81382213803) 18341 RON
252 1 1 HOOK (81392200386) 781 RON
253 1 1 Hex head screw (86103015675) 446 RON
254 1 1 DUST EXTRACTION PORT (81391200501) 488 RON
255 1 1 Washer (86305002087) 446 RON
256 1 1 CUP SQUARE NECK SCREW M 6X45 VERZ. (86110000624) 446 RON
257 1 1 WING NUT M 6 GEW.-EINSATZ VERZINKT (87005125213) 446 RON
285 1 1 Fillister head screw w.fill. head screw (86172001805) 446 RON
287 1 1 FAN WING 120/13 WELLEND. 16 (81331408839) 105 RON
288 1 1 FAN COVER 120/13 (81331408847) 1340 RON
289 1 1 Hex head screw (86103001267) 781 RON
294 1 1 LOWER CASING, MOTOR TERM. BOX (81331409657) 2459 RON
295 1 1 Fillister head screw (86123002022) 446 RON
297 1 1 LID, MOTOR TERMINAL BOX (81331409665) 105 RON
298 1 1 86189011421 - Indisponibil
300 1 1 TABLE END EXTRUSION II 405,5 MM (81383211529) 7157 RON
301 1 1 RATCHET LOCK LEVER, MALE M 6X16 HEBEL 45 (87006108681) 4249 RON
302 1 1 FEED ROD RD 5,2X935 /M6X10/30 (81485211507) 1564 RON
303 1 1 TABLE SUPPORT EXTRUSION 731 MM (81383217110) 54357 RON
304 1 1 1383217314 - Indisponibil
305 1 1 TABLE GUIDE EXTRUSION 405,5 MM (81383217101) 15993 RON
306 1 1 AUXILIARY FENCE EXTRUSION 700 MM (81383214447) 18341 RON
307 1 1 GLIDE RAIL FL 16X5X230 PARALLELANSCHLAG (81482214548) 3689 RON
308 1 1 Push stick (81394201630) 3018 RON
309 1 1 CLAMPING PAD (81380220683) 26730 RON
310 1 1 LOCK PLATE (81380222031) 4249 RON
311 1 1 Self-tapp. counters. screw (86174155800) 446 RON
312 1 1 END PIECE, FRONT (81380211480) 1340 RON
313 1 1 FENCE CARRIER EXTRUSION 907 MM (81383211510) 21361 RON
314 1 1 SPACER SLEEVE RD 15/6X18 (86442025779) Indisponibil Indisponibil
315 1 1 THUMB SCREW M 6X68 (86150190299) 105 RON
316 1 1 SQUARE NUT (86218005126) 446 RON
317 1 1 CROSS RECESSED FLAT HEAD SCREW (86131009460) 446 RON
318 1 1 HEX. SOCKET SET SCREW, DOG PT. (86163198736) 1564 RON
319 1 1 SCALE 0,50X9,3X401 0,00-39,80 CM (81142217070) 3689 RON
320 1 1 CLAMPING PIECE (81380211498) 3689 RON
321 1 1 Fillister head screw (86172091014) 446 RON
323 1 1 HEX.HEAD COLLAR DRILLING SCREW (86144063978) 446 RON
339 1 1 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
7000 1 1 1010634543 - Indisponibil
7001 1 1 1010625447 - Indisponibil
7010 1 1 RIP FENCE ET (81010645022) 78180 RON
