KS Partner Edition - 20025001 - EU 230V
[20025001]
KS Partner Edition - 20025001 - EU 230V
Click pentru a mari
Imagini suplimentare
KS Partner Edition - 20025001 - EU 230V
Click pentru a mari

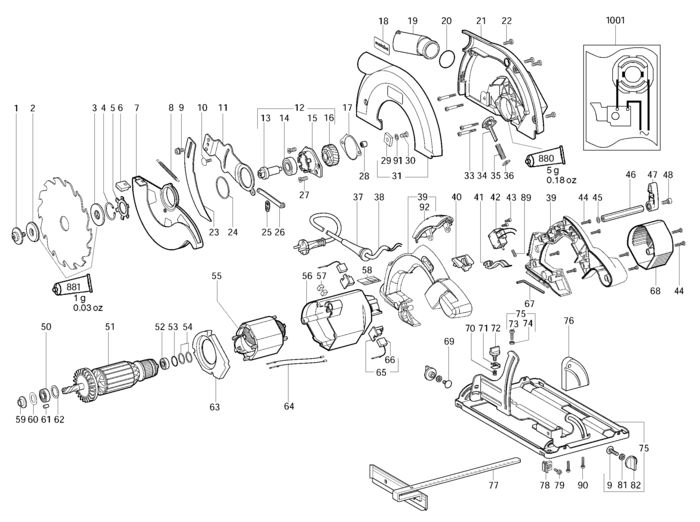

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 Screw compl. (316034800) 3689 RON
2 1 1 Clamping flange (341031790) 2459 RON
3 1 1 Clamping flange (341031780) 2459 RON
4 1 1 Retaining ring (141180390) 781 RON
5 1 1 Toothed segment (339131510) 105 RON
6 1 1 Cap (343378080) 781 RON
7 1 1 Safety guard (339133380) 15993 RON
8 1 1 Tension spring (342010260) 446 RON
9 1 1 Cylinder head screw (141122830) 781 RON
10 1 2 Truss head screw (341703660) 446 RON
11 1 1 Riv.knife guide (339134340) 3689 RON
12 1 1 Saw spindle cpl. (316034590) 26730 RON
13 1 1 Saw axle (341057010) 7157 RON
14 1 1 Ball bearing, 15x35x11 (143114870) 5926 RON
15 1 1 Gear flange (315415670) 955 RON
16 1 1 Spur gear (341057020) 3018 RON
17 1 1 geargasket (339210870) 446 RON
18 1 1 Metabo plate (338121810) 446 RON
19 1 1 Exhaust nozzle (343377760) 1340 RON
20 1 1 O-ring (143194270) 446 RON
21 1 1 Saw housing (316034570) 39481 RON
22 1 4 Fill. head screw(DIN 7985) (141121640) 446 RON
23 1 1 Riving knife (339131570) 3018 RON
24 1 1 Washer (141154070) 781 RON
25 1 1 Connecting piece (341070690) 1564 RON
26 1 1 Sheet Cover (339133890) 105 RON
27 1 2 Countersunk screw (141123040) 446 RON
28 1 1 Needle bushing (143111180) 3689 RON
29 1 1 Rubber buffer (344096260) 446 RON
30 1 1 Countersunk screw (141123190) 446 RON
31 1 1 Cover cpl. (316034580) 21361 RON
33 1 4 Tight-fit screw (341701490) 446 RON
34 1 1 Spindle lock (316034810) 3018 RON
35 1 1 Pressure spring (342007800) 781 RON
36 1 1 Felt (344070600) 446 RON
37 1 1 Cable sleeve (344100970) 781 RON
38 1 1 Cable with plug (344486730) 8275 RON
39 1 1 Handle compl. (316041860) 15993 RON
40 1 1 Switch lock red (343394510) 2459 RON
41 1 1 Switch trigger (343394500) 1340 RON
42 1 1 Switch (343406260) Indisponibil Indisponibil
43 1 2 Fillister head screw (141116970) 781 RON
44 1 8 Self-tap. fill. h. screw (141116020) 781 RON
45 1 1 Washer (339004350) 3018 RON
46 1 1 Spacing element (341056960) 2124 RON
47 1 1 Clamping lever (343377640) 781 RON
48 1 1 Cap screw (141113840) 781 RON
50 1 1 Ball bearing,10x26x8 (143114840) 488 RON
51 1 1 Armature cpl. 230 V (310008440) 49212 RON
52 1 1 Ball bearing, 8x22x7 (143113400) 488 RON
53 1 1 O-ring (143192130) 781 RON
54 1 2 Washer (141151320) 781 RON
55 1 1 Field coil (311010120) 24046 RON
56 1 1 Motor housing (343377690) 8275 RON
57 1 2 Insert (344100070) 446 RON
58 1 1 Rating plate (338047360) 446 RON
59 1 1 Sleeve (343377790) 446 RON
60 1 1 Washer (141153220) 446 RON
61 1 1 Rubber plug (344097580) 446 RON
62 1 1 Washer (141152930) 781 RON
63 1 1 Baffle (343377740) 1564 RON
64 1 2 Strand (344495070) 781 RON
65 1 2 316035910 - Indisponibil
66 1 1 316035950 - Indisponibil
67 1 1 Cranked wrench key (344161520) 781 RON
68 1 1 Motor cover (343377730) 3018 RON
69 1 1 Truss head screw (141116050) 781 RON
70 1 1 Pressure spring (342001430) 781 RON
71 1 1 Pressure plate (339131590) 781 RON
72 1 1 Thumbscrew (341111920) 105 RON
73 1 1 Fillister head screw (141116780) 446 RON
74 1 1 Hexagonal nut (141130090) 446 RON
75 1 1 Guide plate cpl. (316034560) 33553 RON
76 1 1 Console (343377670) 2124 RON
77 1 1 Parallel guide (331050710) 955 RON
78 1 1 Cut indicator (343378070) 446 RON
79 1 1 Self-tap. fill. h. screw (141118730) 446 RON
81 1 2 Washer Washer cod vechi 86300016365 (141151940) 446 RON
82 1 2 Thumb-nut (341111870) 105 RON
89 1 1 Pressure spring (342003140) 446 RON
90 1 2 Self-tap. fill. h. screw (141116800) 446 RON
91 1 1 Washer ZN5BK (141153390) 446 RON
92 1 1 343393710 - Indisponibil
880 1 1 Grease 100G (344130920) 5926 RON
881 1 1 Grease SF 011 50Gr 1,8oz (344130560) 5926 RON
1001 1 1 338503920 - Indisponibil
