Top » Piese de schimb » PIESE METABO » 0290026008 11

MULTI 260 S/W - 0290026008 11 - EU 230V
[0290026008 11]
MULTI 260 S/W - 0290026008 11 - EU 230V
Click pentru a mari
Imagini suplimentare
MULTI 260 S/W - 0290026008 11 - EU 230V
Click pentru a mari
MULTI 260 S/W - 0290026008 11 - EU 230V
Click pentru a mari
MULTI 260 S/W - 0290026008 11 - EU 230V
Click pentru a mari
MULTI 260 S/W - 0290026008 11 - EU 230V
Click pentru a mari
MULTI 260 S/W - 0290026008 11 - EU 230V
Click pentru a mari
MULTI 260 S/W - 0290026008 11 - EU 230V
Click pentru a mari
MULTI 260 S/W - 0290026008 11 - EU 230V
Click pentru a mari
MULTI 260 S/W - 0290026008 11 - EU 230V
Click pentru a mari
MULTI 260 S/W - 0290026008 11 - EU 230V
Click pentru a mari
MULTI 260 S/W - 0290026008 11 - EU 230V
Click pentru a mari
MULTI 260 S/W - 0290026008 11 - EU 230V
Click pentru a mari
MULTI 260 S/W - 0290026008 11 - EU 230V
Click pentru a mari
MULTI 260 S/W - 0290026008 11 - EU 230V
Click pentru a mari

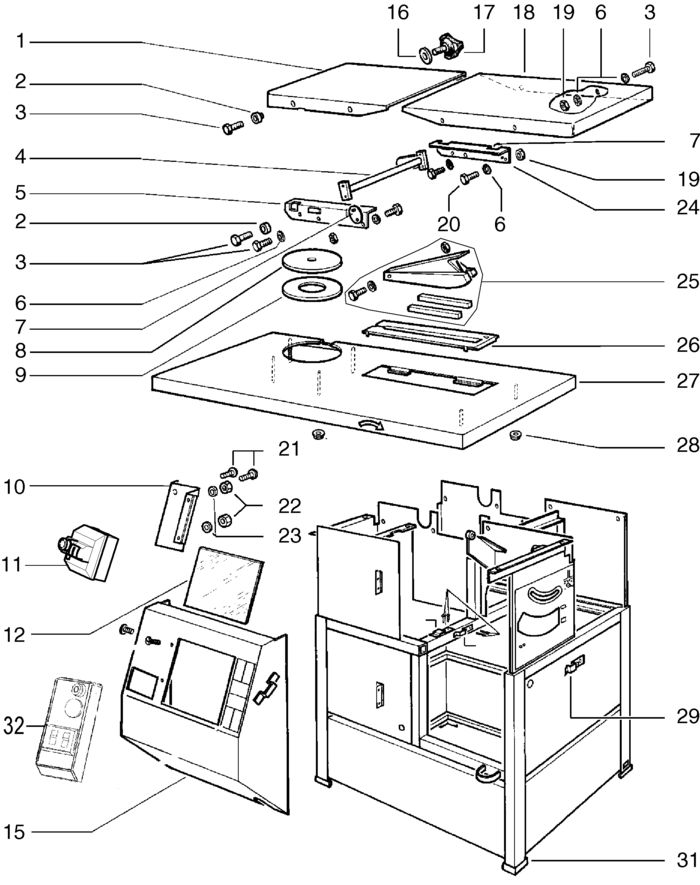

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 JOINTING TABLE ET (81380669214) 171574 RON
2 1 4 BUSHING ET (81382669220) 4249 RON
3 1 16 6103001291 - Indisponibil
4 1 1 CONNECTING ROD ET (81382669238) 78180 RON
5 1 1 CARRIER ET (81382669246) 15993 RON
6 1 18 Serrated lock washer (86304084047) 446 RON
7 1 2 CONNECTING WASHER ET (81382669254) Indisponibil Indisponibil
8 1 1 END PLATE ET (81382669262) 13756 RON
9 1 1 TABLE INSERT ET (81381669277) 21361 RON
10 1 1 SWITCH PLATE ET (81382669289) 18341 RON
11 1 1 SWITCH ASSEMBLY 230/1/50 KLEIN (88133669303) 171574 RON
12 1 1 VIEW DISC ET (81388669833) 15993 RON
15 1 1 COVER ET (81382669858) 9821 RON
16 1 1 WASHER 6X18X1,2 ET (86341669969) 105 RON
17 1 1 STARKNOB SCREW RD40/M6X23 (DIN 933) VERZ (87001017769) 781 RON
18 1 1 JOINTING TABLE ET (81380669869) 137236 RON
19 1 26 Hex nut (86200002219) 446 RON
20 1 1 Hex head screw (86103001135) 446 RON
21 1 2 6172669008 - Indisponibil
22 1 9 HEXAGON NUT (86200002197) 446 RON
23 1 7 WASHER 4X10X0,8 ET (86341669977) 105 RON
24 1 1 CARRIER ET (81382669874) 21361 RON
25 1 1 SAW BLADE GUARD ASSEMBLY ET (81010669886) 59166 RON
26 1 1 1383669894 - Indisponibil
27 1 1 TABLE ET (81010669908) 343820 RON
28 1 9 Flange nut (6209110995) 446 RON
29 1 1 BRACKET ET (81382668959) 105 RON
31 1 4 PLASTIC FOOT ET (87057669920) 4249 RON
32 1 1 Switch On/Of 230/1/50 Gross (88111689076) 220451 RON
35 1 1 DISC GUARD ET (81382669939) 2848 RON
36 1 1 1385669948 - Indisponibil
37 1 4 PRESSURE SPRING M. 26 ET (81388667520) 105 RON
38 1 4 BEARING BUSH 16X22X20 ET (87150667512) 955 RON
39 1 2 DEEP GROOVE BALL BEARING 20X47X14 6204-2 (87100016820) 488 RON
40 1 2 SEAT KNIFE CARRIER ET (81380669982) 30980 RON
41 1 1 FLAT BELT 950X20 ET (87232669998) 2848 RON
42 1 1 V-BELT PULLEY ET (81385670008) 41718 RON
43 1 1 POLY-RIB BELT 483 H6 ET (87233670019) 24046 RON
44 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X16 VER (86121000790) 446 RON
45 1 2 CUTTERBLOCK WEDGE ET (81492670029) 33553 RON
46 1 1 CUTTERBLOCK ET (81485670030) 197187 RON
48 1 2 WASHER 14X27X2,5 ET (86341670045) 105 RON
49 1 4 1385670059 - Indisponibil
50 1 1 CONNECTOR DRIVE ET (81380670069) 24046 RON
51 1 1 GEARWHEEL ET (87247670070) Indisponibil Indisponibil
52 1 1 DUST EXTRACTION OUTLET ET (81381670089) 26730 RON
53 1 6 SET SCREW RESHARPENABLE BLADE M 6 ET (86143667535) Indisponibil Indisponibil
54 1 2 0920054030 - Indisponibil
55 1 4 PRESSURE SPRING ET (81388667547) Indisponibil Indisponibil
56 1 1 DRILL CHUCK ET (89431670094) 49212 RON
57 1 1 DRILL CHUCK GUARD ET (81382670104) 8275 RON
59 1 1 HEX.SOCKET COUNTERS.HEAD SCREW M 6X25/LI (86131670115) 190 RON
60 1 10 WASHER 6X12X1,2 ET (81388666753) 105 RON
62 1 1 BALL BEARING SHIM RING 35X46X0,25 ET (87140670124) 1564 RON
63 1 1 CLAMPING SLEEVE 5X45 E ET (86503670141) 105 RON
65 1 1 CHAIN SPROCKET ET (87246670166) Indisponibil Indisponibil
66 1 1 ROLLER CHAIN 48 GLIEDER ET (87246670174) 19236 RON
67 1 9 RETAINING RING FOR SHAFTS (86400009935) 446 RON
68 1 4 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
69 1 1 1388670181 - Indisponibil
70 1 1 COGGED DRIVE WHEEL ET (81385670199) Indisponibil Indisponibil
71 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X20 VER (86121000804) 446 RON
72 1 1 WAVE SPRING WASHER 20X8,2X0,6 ET (86341670207) 105 RON
73 1 1 TENSION SPRING D=78 ET (87050670214) 5479 RON
74 1 1 WASHER 12X24X2,5 ET (86341670223) 105 RON
75 1 1 TRANSPORT ROD ET (81385672302) 30980 RON
76 1 1 1385670245 - Indisponibil

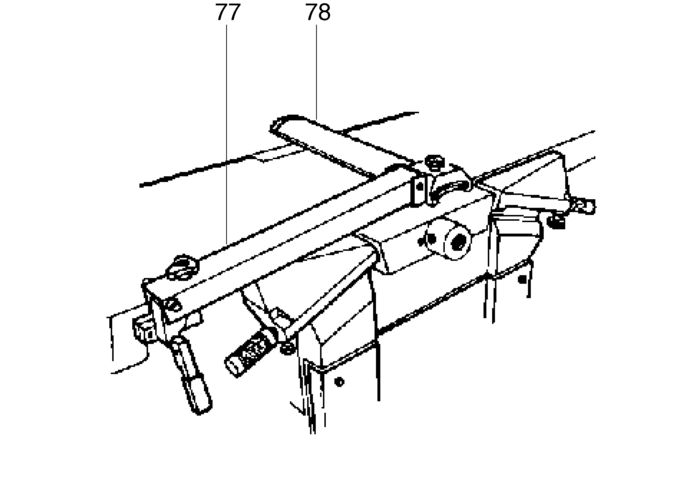

77 1 1 CUTTERBLOCK GUARD ET (81011671930) 171574 RON
78 1 1 CUTTERBLOCK GUARD ET (81011671949) 33553 RON

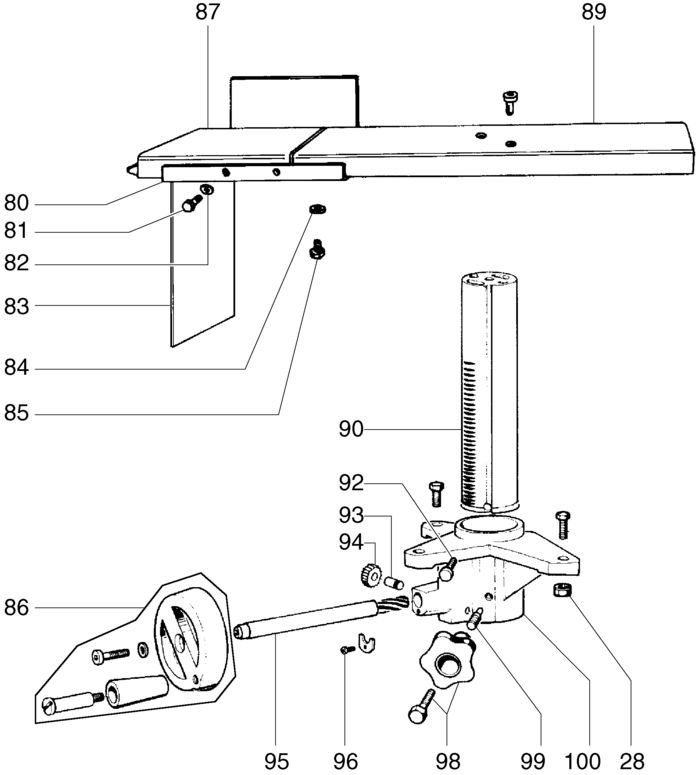

80 1 1 GUIDE PLATE ET (81382670252) 18341 RON
81 1 4 HEXAGON HEAD SCREW M 6X10 VERZ. (86103015934) 446 RON
82 1 2 WASHER 8X18X1,5 ET (86341670266) 105 RON
83 1 1 GUARD PLATE ET (81382670279) 13756 RON
84 1 6 WASHER 12X24X2,5 ET (86341670282) 105 RON
85 1 4 Hex head screw (86103001178) Indisponibil Indisponibil
86 1 1 81388670297 - Indisponibil
87 1 1 TABLE EXTENSION ET (81388670300) 41718 RON
89 1 1 THICKNESSER BED ET (81380670310) 220451 RON
90 1 1 COLUMN, HEIGHT ADJUSTMENT ET (81385670326) 14839 RON
92 1 1 SLOTTED CHEESE HEAD SCREW M 4X10 VERZ. (86120000029) 446 RON
93 1 1 AXLE ET (81385670334) 4249 RON
94 1 1 GEARWHEEL ET (87247670348) 11519 RON
95 1 1 WORM GEAR RECHTS ET (81385670350) 39481 RON
96 1 15 HEXAGON SOCKET HEAD CAP SCREW (86121121296) 446 RON
98 1 1 STARKNOB SCREW ET (87001670373) 5926 RON
99 1 2 BOLT ET (81385670385) 5479 RON
100 1 1 SEAT HIGHT ADJUSTMENT ET (81385670393) 117663 RON

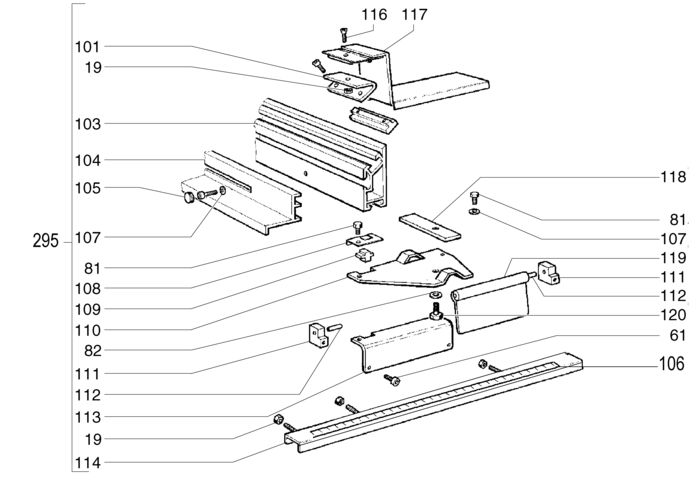

101 1 1 ANGLE BRACKET ET (81382670406) 8275 RON
103 1 1 SEATING PROFILE ET (81383670426) 197187 RON
104 1 1 GUIDE EXTRUSION ET (81383670434) 19236 RON
105 1 1 KNURLED THUMB SCREW M6 ET (87009669404) 3689 RON
106 1 1 ADHESIVE LABEL YELLOW/BLACK 1,00X16X485 (81141680150) 8275 RON
107 1 1 WASHER 6X14X1.2 ET (81388667067) 105 RON
108 1 1 WINDOW - HEIGHT INDICATOR ET (81388670459) 10288 RON
109 1 1 POINTER ET (81382670465) 39481 RON
110 1 1 BUSHING ET (81382671097) 24046 RON
111 1 2 SUPPORT ET (81388671102) 19236 RON
112 1 2 CONNECTING PIN ET (81385671110) 105 RON
113 1 1 ANGLE BRACKET ET (81382671127) 21361 RON
114 1 1 U-SHAPED RAIL ET (81382671135) 33553 RON
116 1 6 CROSS RECESSED FLAT HEAD SCREW (86131059530) 446 RON
117 1 1 GUARD PLATE HINTEN /ET (81382671143) 18341 RON
118 1 1 CLAMPING PLATE ET (81382671151) 24046 RON
119 1 1 SAFETY LEVER ET (81382671160) 59166 RON
120 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON

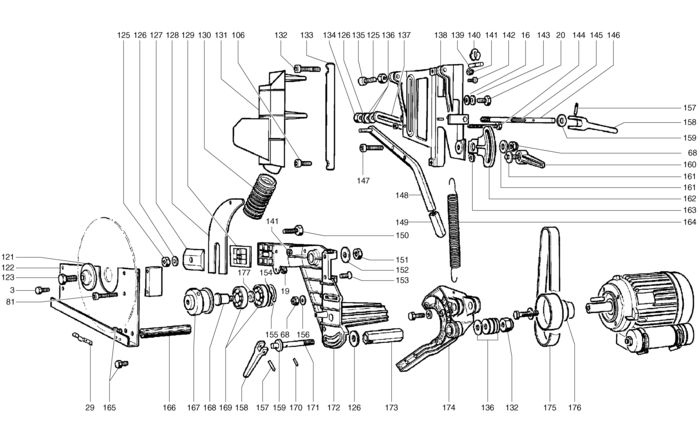

121 1 1 BLADE COLLAR AUSSEN /ET (81380671170) 5479 RON
122 1 1 SAW BLADE HOUSING ET (81382671186) 41718 RON
123 1 1 Hex head screw (86103001267) 781 RON
125 1 4 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
126 1 5 WASHER 10X22X2 ET (86341671203) 105 RON
127 1 1 PRESSURE PLATE ET (81382668126) 10288 RON
128 1 1 SPLITTING BLADE ET (81382671216) 18341 RON
129 1 1 RIVING KNIFE CARRIER ET (81380668145) 10288 RON
130 1 1 SUCTION HOSE D32/ L=600 ET (81010671228) 955 RON
131 1 1 DUST EXTRACTION OUTLET FESTSTEHEND /ET (81388672010) 13756 RON
132 1 1 HEXAGON SOCKET HEAD CAP SCREW M 6X45 VER (86121029632) 446 RON
133 1 1 GUIDE RAIL ET (81381671239) 24046 RON
134 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002313) 446 RON
135 1 1 AXLE ET (81385671276) 488 RON
136 1 10 WAVE SPRING WASHER 20X10,2X0,8 ET (86302671280) 105 RON
137 1 1 HEIGHT-ADJUSTMENT ET (81383671295) 19236 RON
138 1 1 1383671309 - Indisponibil
139 1 1 SAFETY PIN ET (81385671314) 7157 RON
140 1 1 RETAINING RING ET (86400671328) 105 RON
141 1 2 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
142 1 2 86174671336 - Indisponibil
143 1 3 WAVE SPRING WASHER 18X6,2X0,6 ET (86302671344) 781 RON
145 1 1 CLAMPING SLEEVE 5X20 ET (86503671350) 105 RON
146 1 1 SETTING TUBE ET (81388671366) 2848 RON
147 1 1 Cap screw (86121000812) 446 RON
148 1 1 SETTING LEVER ET (81382671372) 41718 RON
149 1 1 HANDLE ET (81381671387) 2459 RON
150 1 1 HEXAGON HEAD SCREW M 10X35 VERZ. (86103001240) 446 RON
151 1 1 HEXAGON NUT (86200017992) 446 RON
152 1 1 WASHER (86305002494) 446 RON
153 1 2 CROSS RECESSED FLAT HEAD SCREW M 6X16 VE (86131047582) 446 RON
154 1 1 WASHER 32X41X0,25 ET (81388667644) 1564 RON
155 1 1 CIRCLIP FOR BORES SR 42 ET (86400671395) 105 RON
156 1 8 WASHER 8X16X1,5 ET (81388666770) 105 RON
157 1 2 SAFETY PIN ET (81385671403) 2124 RON
158 1 2 SETTING LEVER ET (81388671412) 18341 RON
159 1 2 WASHER 8X22X1,5 ET (86341671428) 5479 RON
160 1 1 RATCHET LOCK LEVER, MALE M 8X25 (87006088990) 3689 RON
161 1 8 WASHER 8X22X2,5 ET (81388666761) Indisponibil Indisponibil
162 1 1 TILT STOP, ASSEMBLY ET (81380671430) Indisponibil Indisponibil
164 1 1 TENSION SPRING ET (81388668438) Indisponibil Indisponibil
165 1 3 HEXAGON HEAD SCREW M 8X12 ET (86103667044) 105 RON
166 1 1 AXLE ET (81385671462) 24046 RON
167 1 1 SEAT,SAWBLADE ET (81385671470) 78180 RON
168 1 1 SHAFT ET (81385671489) 19236 RON
169 1 1 DEEP GROOVE BALL BEARING (87100016995) 488 RON
170 1 1 CLAMPING SLEEVE 3X16 (86503001657) 446 RON
171 1 1 SET SCREW ET (81385671497) 2848 RON
172 1 1 1380671502 - Indisponibil
173 1 1 GUIDE SLEEVE ET (81388671510) 34448 RON
174 1 1 SEAT, MOTOR ET (81380671529) 83437 RON
175 1 1 FLAT BELT 630X20 ET (87232671534) 24046 RON
176 1 1 V-BELT PULLEY ET (87240671543) 64311 RON
177 1 1 WASHER ET (86341671556) 105 RON
180 1 1 FASTENING SCREW ET (81385671560) 18341 RON
181 1 1 CAP ET (81380671570) 13756 RON
182 1 1 SPACING COLLAR ET (81385671586) 78180 RON
183 1 1 RETAINING RING ET (86400671590) 15993 RON
184 1 1 COLUMN, HEIGHT ADJUSTMENT ET (81380671600) 171574 RON
185 1 1 BALL BEARING SHIM RING 42.3X54X0.3 ET (87140670132) 1564 RON
186 1 2 DEEP GROOVE BALL BEARING 30X55X13 6006-2 (87100017924) 7157 RON
187 1 1 DRIVE SHAFT ET (81382671615) 171574 RON
188 1 1 FLAT BELT 1030X20 ET (87232671623) 24046 RON
189 1 1 1380671634 - Indisponibil
190 1 1 WORM GEAR ET (81385671640) 34448 RON
191 1 1 RETAINING RING FOR SHAFTS ET (86400671654) 190 RON

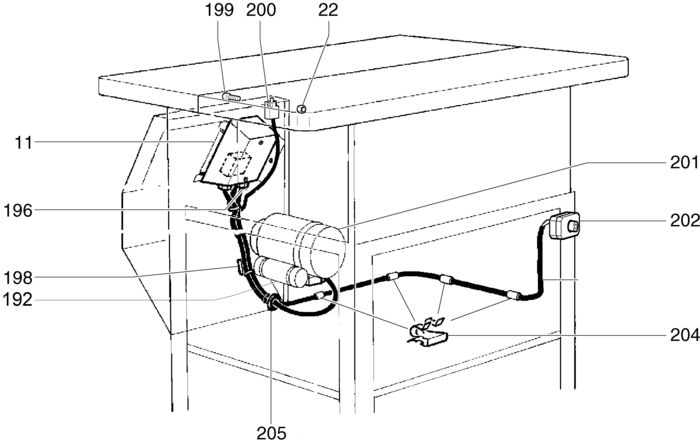

192 1 1 CAPACITOR 40 uF ET (88005674426) 49212 RON
196 1 3 8240027799 - Indisponibil
198 1 2 CABLE CLIP, SELF-ADHESIVE ET (88242671679) 190 RON
199 1 2 Fillister head screw (86123084690) 446 RON
200 1 1 MICRO SWITCH ET (88116671680) 3698 RON
201 1 1 8012671696 - Indisponibil
202 1 1 8191671717 - Indisponibil
204 1 5 CABLE CLIPS ET (88490671723) 781 RON
205 1 2 UNION ET (81388671730) 2124 RON

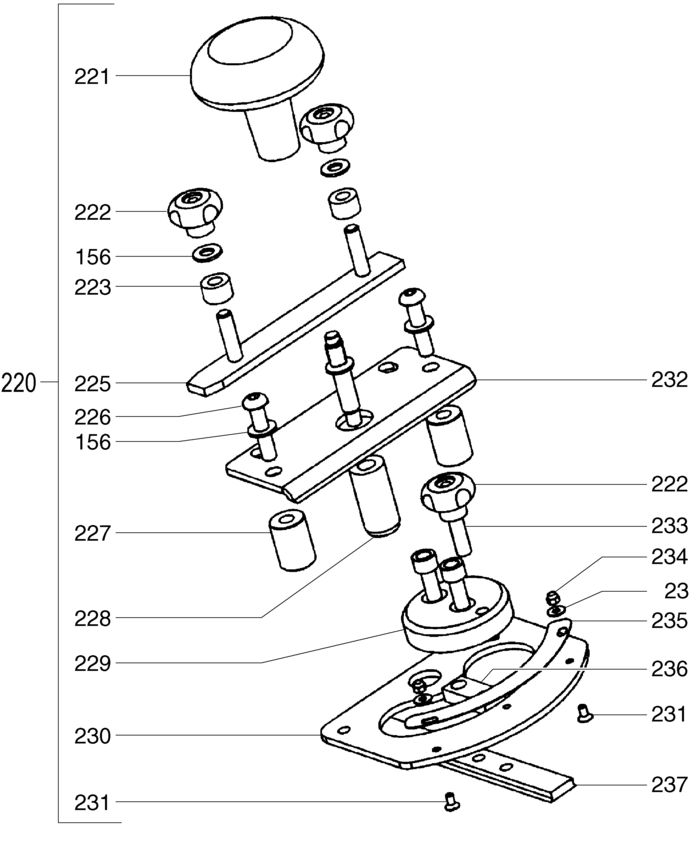

220 1 1 MITRE FENCE ASSEMBLY MULTI 260/310 /ET (81010678532) 197187 RON
221 1 1 SETTING KNOB ET (81388669540) 21361 RON
222 1 3 STARKNOB NUT M 6 (DIN 934) VERZINKT (87000025466) 781 RON
223 1 2 DISTANCE SLEEVE ET (81385672043) 190 RON
225 1 1 GUIDE RAIL ET (81382672069) 18341 RON
226 1 2 Cap screw (86121000812) 446 RON
227 1 2 GUIDE SLEEVE ET (81385672078) 5479 RON
228 1 1 GUIDE SLEEVE ET (81385672086) 11519 RON
229 1 1 SETTING SEGMENT ET (81385672094) 21361 RON
230 1 1 MITRE FENCE BODY ET (81382672107) 21361 RON
231 1 2 6131001531 - Indisponibil
232 1 1 GUIDE PLATE ET (81382672115) 34448 RON
233 1 1 STARKNOB SCREW RD40/M8X28 (DIN 933) VERZ (87001017777) 105 RON
234 1 2 CAP NUT M 4 VERZ. (86201001437) 446 RON
235 1 1 ANGLE SCALE 0-45 GRAD ET (81142672126) 11519 RON
236 1 1 GUIDE RAIL ET (81382672131) 8275 RON
237 1 1 GUIDE RAIL ET (81382672140) 19236 RON

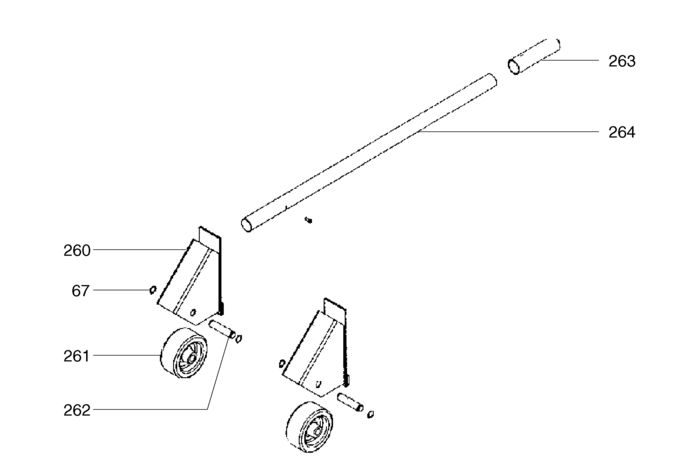

260 1 2 CAP ET (81382672263) 21361 RON
261 1 2 WHEEL RD 80 ET (87270672277) 10288 RON
262 1 2 AXLE ET (81385672280) 2459 RON
263 1 1 HANDLE D=24 ET (81381672294) 3018 RON
264 1 1 TRANSPORT ROD ET (81385672302) 30980 RON
265 1 1 81011672023 - Indisponibil
266 1 1 SCALE 798X15 ET (81142674145) 39481 RON
267 1 1 SUPPORT EXTRUSION L=800 ET (81383674154) 49212 RON
268 1 2 HEX.SOCKET COUNTERS.HEAD SCREW (86132127741) 446 RON
269 1 1 PUSH PIECE ET (81384672031) 5479 RON
271 1 1 WORKPIECE HOLDER ET (81011659400) 59166 RON
272 1 1 STARKNOB SCREW RD40/M6X23 (DIN 933) VERZ (87001017769) 781 RON
273 1 1 WORK CLAMP ET (81010674170) 41718 RON

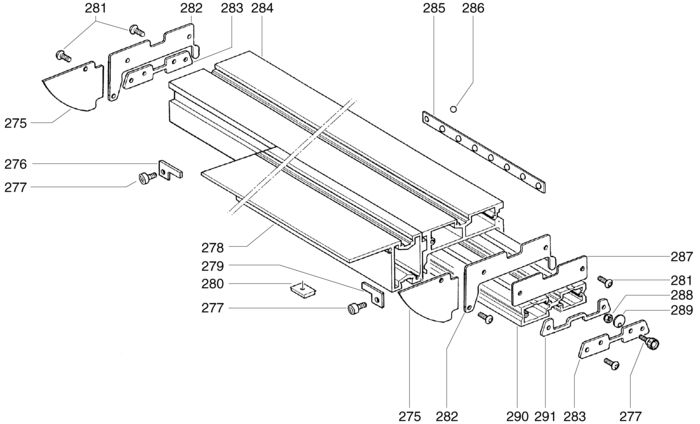

275 1 2 END PLATE ET (81382674665) 18341 RON
276 1 1 LOCKING PLATE LINKS /ET (81382674029) 11519 RON
277 1 3 KNURLED THUMB SCREW M 5X16 ET (87009674343) 1340 RON
278 1 1 1383674650 - Indisponibil
279 1 1 LOCKING PLATE RECHTS /ET (81382674037) 11519 RON
280 1 1 GLIDE BLOCK ET (81388674047) 955 RON
281 1 12 RAISED CHEESE HEAD SCREW M 8X45 ET (86123667270) 781 RON
282 1 2 HEAD PLATE OBEN /ET (81382674061) 7157 RON
283 1 2 HEAD PLATE UNTEN /ET (81382674070) 8275 RON
284 1 1 SLIDING CARRIAGE L=1080 ET (81383674081) 197187 RON
285 1 1 ROLLER FRAME ET (81381674092) 5479 RON
286 1 8 BALL RD 12 ET (81388668888) 105 RON
287 1 1 COVER PANEL ET (81482674107) 5926 RON
288 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
289 1 1 BOLT ET (81482674115) 488 RON
290 1 1 SUPPORT EXTRUSION L=1080 ET (81482674123) 117663 RON
291 1 1 GUIDE ET (81382674134) 5926 RON
295 1 1 RIP FENCE ASSEMBLY MULTI 260 /ET (81010678540) 343820 RON

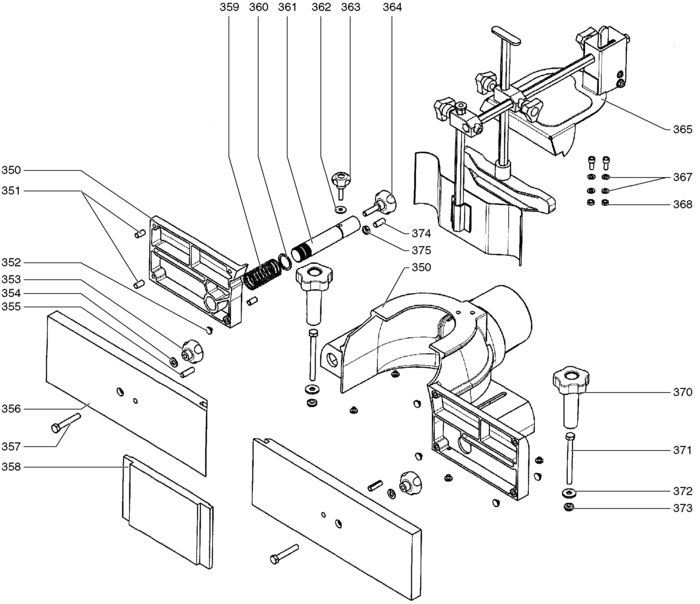

350 1 1 CHIPCASE ET (81010681843) 59166 RON
351 1 3 METAL END STUD M8 ET (86143681902) 2459 RON
352 1 9 SPACER ET (81381681897) 105 RON
353 1 2 STARKNOB SCREW RD40/M6X23 (DIN 933) VERZ (87001017769) 781 RON
354 1 2 CLAMPING SLEEVE 8X25 ET (86503672195) 105 RON
355 1 2 WASHER 8X16X1,5 ET (81388666770) 105 RON
356 1 2 RULER ET (81384681863) 33553 RON
357 1 2 WHEEL BOLT ET (81385666930) 105 RON
358 1 1 PRESSURE PIECE MILLING GUIDE ET (81385672159) 5926 RON
359 1 1 PRESSURE SPRING ET (81388681884) 3018 RON
360 1 1 Retaining ring shaft (86400121395) 446 RON
361 1 1 1385681859 - Indisponibil
362 1 1 WASHER 6X18X1,2 ET (86341669969) 105 RON
363 1 1 STARKNOB SCREW RD40/M6X23 (DIN 933) VERZ (87001017769) 781 RON
364 1 1 STARKNOB SCREW RD40/M8X33 (DIN 933) VERZ (87001005922) 105 RON
365 1 1 BRIDGE PROTECTOR ET (81014681910) 197187 RON
367 1 4 WASHER 6X12X1,2 ET (81388666753) 105 RON
368 1 2 Hex nut (86200002219) 446 RON
370 1 2 STARKNOB ET (81381672243) 8275 RON
371 1 2 HEXAGON HEAD SCREW M 8X90 VERZ. (86101022046) 781 RON
372 1 2 WASHER 8X22X2,5 ET (81388666761) Indisponibil Indisponibil
373 1 2 UNION ET (81388672222) 105 RON
374 1 1 HEXAGON SOCKET HEAD CAP SCREW M 8X20 VER (86121000804) 446 RON
375 1 1 HEXAGON THIN NUT (86205029131) 446 RON

Conditii Generale
