Top » Piese de schimb » PIESE METABO » 0290018013 10

MULTI 180 A/W - 0290018013 10 - EU 230V
[0290018013 10]
MULTI 180 A/W - 0290018013 10 - EU 230V
Click pentru a mari
Imagini suplimentare
MULTI 180 A/W - 0290018013 10 - EU 230V
Click pentru a mari
MULTI 180 A/W - 0290018013 10 - EU 230V
Click pentru a mari
MULTI 180 A/W - 0290018013 10 - EU 230V
Click pentru a mari
MULTI 180 A/W - 0290018013 10 - EU 230V
Click pentru a mari
MULTI 180 A/W - 0290018013 10 - EU 230V
Click pentru a mari
MULTI 180 A/W - 0290018013 10 - EU 230V
Click pentru a mari
MULTI 180 A/W - 0290018013 10 - EU 230V
Click pentru a mari
MULTI 180 A/W - 0290018013 10 - EU 230V
Click pentru a mari
MULTI 180 A/W - 0290018013 10 - EU 230V
Click pentru a mari
MULTI 180 A/W - 0290018013 10 - EU 230V
Click pentru a mari

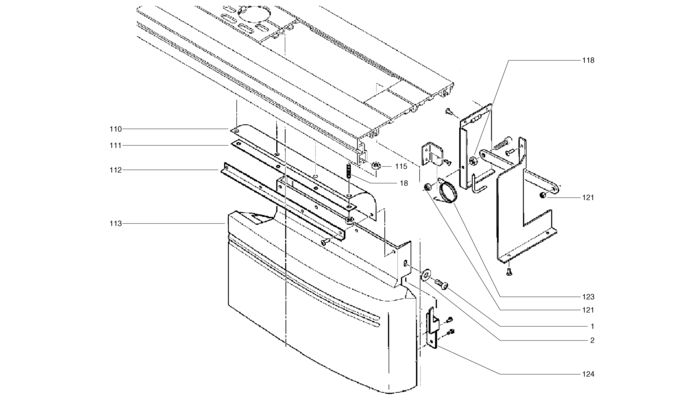

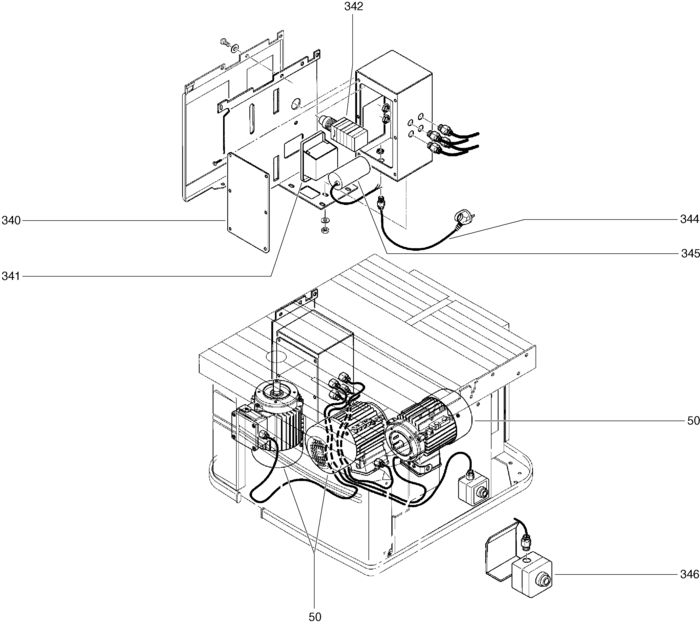

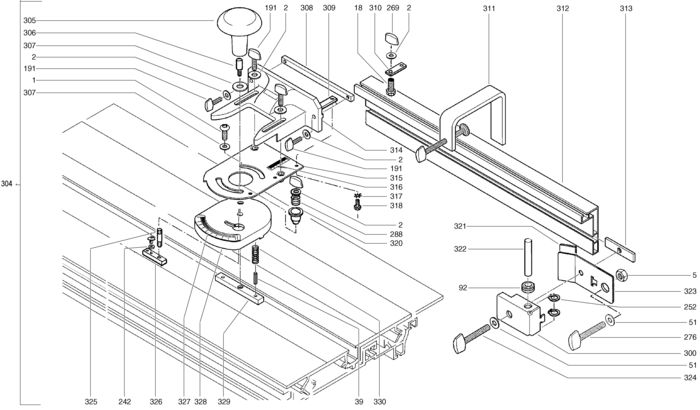

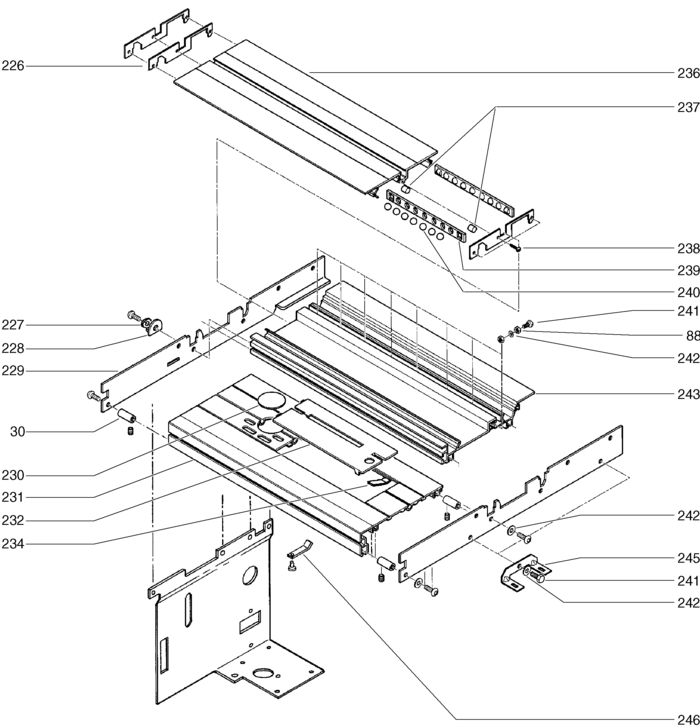

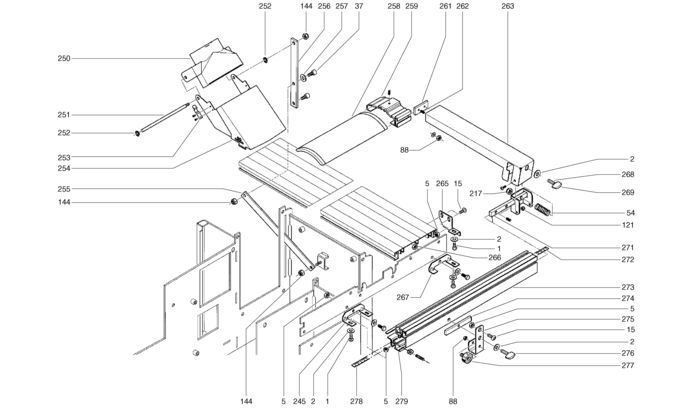

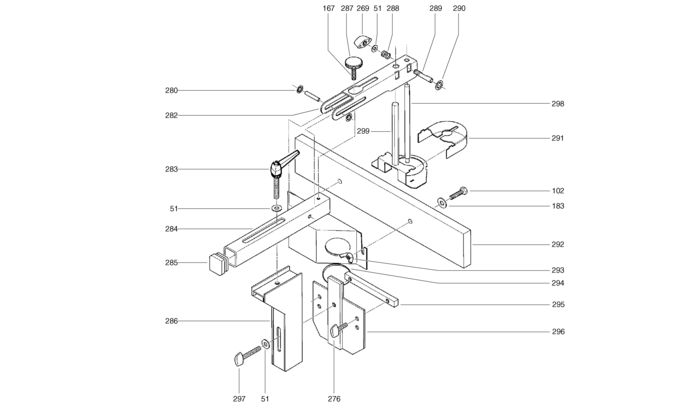

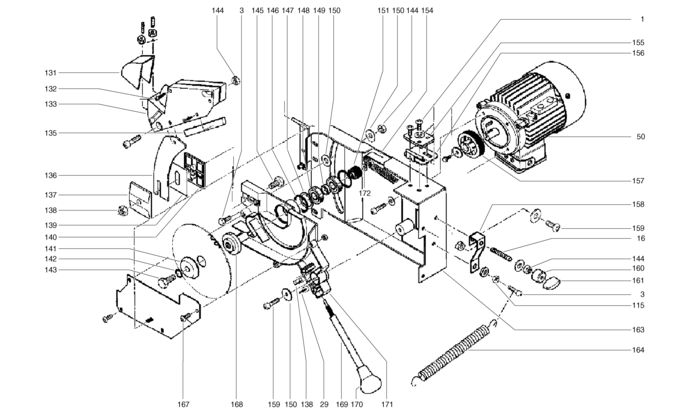

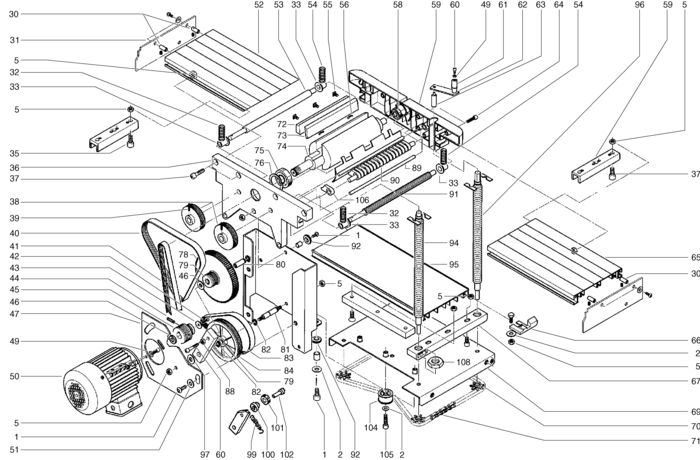

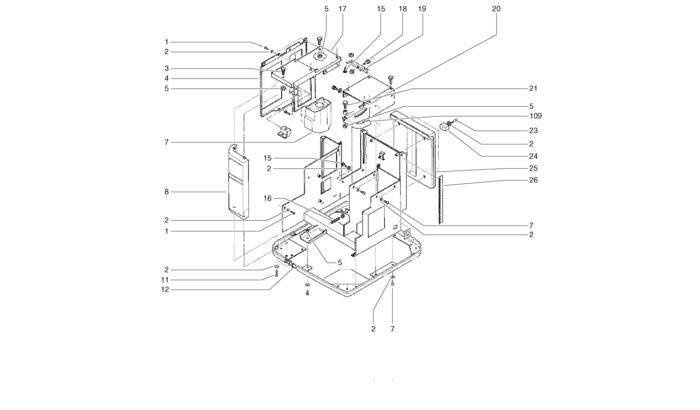

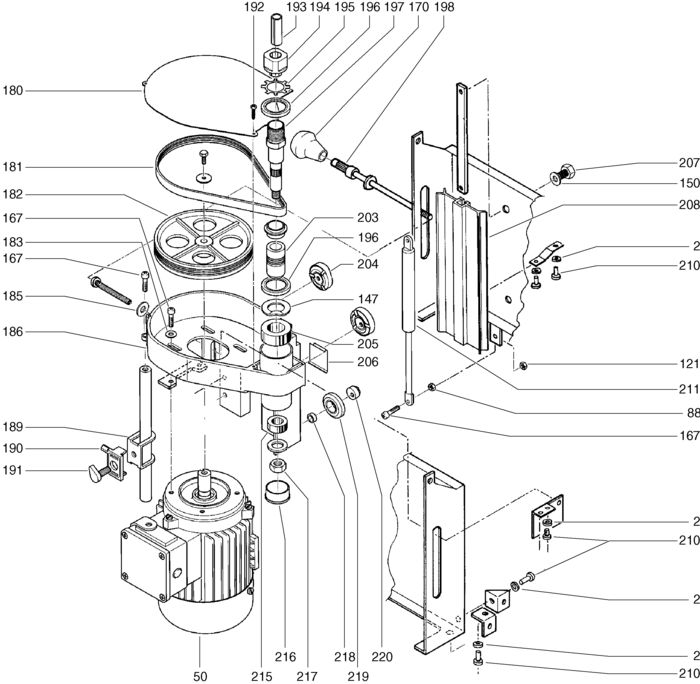

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 63 RAISED CHEESE HEAD SCREW M 8X16 ET (86123666885) 105 RON
2 1 24 WASHER 8X16X1,5 ET (81388666770) 105 RON
3 1 6 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208) 446 RON
4 1 1 HOUSING LID ET (81381667207) 39481 RON
5 1 11 HEXAGON NUT (86200002235) Indisponibil Indisponibil
7 1 1 RESERVOIR DUST COLLECTION ET (81388667229) 64311 RON
8 1 1 COVER ET (81381667231) 2848 RON
11 1 4 RAISED CHEESE HEAD SCREW M 8X45 ET (86123667270) 781 RON
12 1 4 FENCE EXTRUSION END CAP ET (81381667126) 446 RON
15 1 10 RAISED CHEESE HEAD SCREW M 8X10 ET (86123667253) 781 RON
16 1 3 HEX. SOCKET SET SCREW, FLAT PT M 8X70 ET (86161667321) 105 RON
17 1 1 1380666606 - Indisponibil
18 1 22 HEXAGON HEAD SCREW M 8X12 ET (86103667044) 105 RON
19 1 1 BRACKET ET (81382667340) 10288 RON
20 1 1 SEAT-TABLE ET (81380666703) 64311 RON
23 1 5 Cap screw (86121000812) 446 RON
24 1 4 SUPPORT ET (81388667113) 7157 RON
25 1 1 SIDE PANEL ET (81381667355) 30980 RON
26 1 1 1142667360 - Indisponibil
30 1 12 GUIDE SLEEVE ET (81385666477) 1564 RON
31 1 10 HEX. SOCKET SET SCREW, FLAT PT M 6X10 ET (86161667380) 105 RON
32 1 2 PRESSURE SPRING ET (81388667610) 1340 RON
33 1 4 BEARING BUSH 16X22X20 ET (87150667512) 955 RON
35 1 3 HEXAGON SOCKET HEAD CAP SCREW M 8X20 VER (86121000804) 446 RON
36 1 1 CONNECTOR DRIVE ET (81380667424) 49212 RON
37 1 3 HEXAGON SOCKET HEAD CAP SCREW M 8X20 VER (86121000804) 446 RON
38 1 2 POLY-RIB PULLEY ET (81388667431) 8275 RON
40 1 1 POLY-RIB BELT ET (87233667450) 18341 RON
41 1 1 POLY-RIB BELT 559J5 ET (87233667468) 18341 RON
43 1 6 WASHER 6X22X3 ET (81388667733) 105 RON
44 1 1 6161667399 - Indisponibil
45 1 1 POLY-RIB PULLEY ET (81388667482) 955 RON
46 1 2 WASHER 15X21X0,5 ET (81382662977) 1340 RON
47 1 1 SEAT MOTOR ET (81382667472) 11519 RON
49 1 5 Washer Washer cod vechi 86300016365 (141151940) 446 RON
50 1 3 ELECTRIC MOTOR 1X230V 50HZ 3000UPM ET (88012667494) 171574 RON
51 1 17 WASHER 8X22X2,5 ET (81388666761) Indisponibil Indisponibil
52 1 1 JOINTING TABLE VORNE /ET (81380667505) 68673 RON
53 1 1 FEED ROLLER GLATT /ET (81385667627) 24046 RON
54 1 3 PRESSURE SPRING M. 26 ET (81388667520) 105 RON
55 1 6 SET SCREW RESHARPENABLE BLADE M 6 ET (86143667535) Indisponibil Indisponibil
56 1 4 PRESSURE SPRING ET (81388667547) Indisponibil Indisponibil
58 1 1 DEEP GROOVE BALL BEARING 15X32X9 6002-2R (87100667562) 15993 RON
59 1 1 1380667572 - Indisponibil
61 1 1 1382667588 - Indisponibil
62 1 1 BRACKET ET (81385667597) 15993 RON
63 1 1 AXLE ET (81385667600) 8275 RON
64 1 4 HEXAGON SOCKET HEAD CAP SCREW M 8X25 VER (86121000820) 446 RON
65 1 1 JOINTING TABLE HINTEN /ET (81380668013) 73930 RON
66 1 1 POINTER, HEIGHT ADJUSTMENT ET (81381667975) 3689 RON
67 1 2 GUIDE ET (81382667960) 39481 RON
69 1 1 COVER PLATE ET (81382667987) 3698 RON
70 1 4 CHAIN SPROCKET ET (87246667998) 7157 RON
71 1 1 ROLLER CHAIN ET (87236668007) 21361 RON
72 1 2 CUTTERBLOCK WEDGE ET (81382667782) 24046 RON
73 1 2 PLANER BLADE 182X19X2,5 HSS 18 /ET (81386667795) 2848 RON
74 1 1 CUTTERBLOCK ET (81385667805) 14839 RON
75 1 1 DEEP GROOVE BALL BEARING (87100016995) 488 RON
76 1 1 WASHER 32X41X0,25 ET (81388667644) 1564 RON
78 1 1 GEARWHEEL D=130 ET (81380667696) 15993 RON
79 1 1 BEARING BUSH 10/14X10 ET (87150667709) 955 RON
80 1 1 AXLE ET (81385667813) 488 RON
81 1 1 AXLE ET (81385667821) 8275 RON
82 1 3 RETAINING RING SR 10 TYP 81 /ET (86401667774) 105 RON
83 1 1 POLY-RIB BELT 432J4 ET (87233667832) 24046 RON
84 1 5 BELT PULLEY, MOTOR RD 26 ET (81385667848) 13756 RON
88 1 10 Hex nut (86200002219) 446 RON
89 1 2 GUIDE BAR ET (81385667880) 488 RON
90 1 1 RECOIL LOCK ET (81011667895) 5926 RON
91 1 1 FEED ROLLER GERILLT /ET (81385667929) 30980 RON
92 1 6 FLEXIBLE EDGE GUARD ET (81388667873) 781 RON
94 1 3 THREADED ROD ET (81380667939) 18341 RON
95 1 1 THICKNESSER BED ET (81385667945) 49212 RON
96 1 1 THREADED ROD ET (81382667952) 24046 RON
97 1 1 WASHER 10X27X0,5 ET (81388667741) 2459 RON
99 1 1 PRESSURE SPRING ET (87051668027) 10288 RON
100 1 2 BEARING BUSH ET (81385666540) 190 RON
101 1 2 DEEP GROOVE BALL BEARING 8X22X7 608 -2Z (87100072399) 2124 RON
102 1 3 Hex head screw (86103001135) 446 RON
104 1 1 7246667912 - Indisponibil
105 1 1 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208) 446 RON
106 1 18 SEAT, ANTI-KICK BACK ET (81380667866) 5479 RON
108 1 4 HEXAGON THIN NUT (86205088367) 446 RON
109 1 1 ANGLE SCALE ET (81142668030) 8275 RON
110 1 1 CHIPCASE FLAP ET (81381668041) 24046 RON
111 1 1 FASTENING RAIL ET (81382668053) 5926 RON
112 1 1 ANGLE BRACKET ET (81382668061) 7157 RON
113 1 1 SIDE PANEL ET (81381668076) 64311 RON
115 1 6 HEXAGON THIN NUT (86205029131) 446 RON
118 1 1 HEXAGON THIN NUT (86205028046) 446 RON
121 1 5 HEXAGON NUT, PREV. TORQUE TYPE (86202002291) Indisponibil Indisponibil
123 1 1 COIL SPRING ET (81388668314) 4249 RON
124 1 1 POINTER ET (81388668373) 18341 RON
131 1 1 CAP ET (81381668092) 4249 RON
132 1 4 COUNTERSUNK HEAD TAPPING SCREW (86174001900) Indisponibil Indisponibil
133 1 1 SAW BLADE GUARD ASSEMBLY ET (81381668084) 15993 RON
135 1 2 RE-INFORCING CHIP COVER ET (81384668107) 4249 RON
136 1 1 SPLITTING BLADE ET (81382668118) 13756 RON
137 1 1 PRESSURE PLATE ET (81382668126) 10288 RON
138 1 14 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
139 1 1 SPACER PLATE ET (81382668134) 10288 RON
140 1 1 RIVING KNIFE CARRIER ET (81380668145) 10288 RON
141 1 1 BLADE COLLAR, OUTER ET (81380668153) 955 RON
142 1 1 CLAMPING RING 6,7X2 ET (81388668160) 1564 RON
143 1 1 SCREW ET (81385668445) 7157 RON
144 1 8 HEXAGON NUT, PREV. TORQUE TYPE (86202002305) Indisponibil Indisponibil
145 1 1 HEXAGON HEAD SCREW M 10X30 ET (86103668253) 105 RON
146 1 2 CIRCLIP FOR BORES ET (81385668240) 781 RON
147 1 2 WASHER 23.6X34X0.25 ET (81388667652) 1564 RON
148 1 2 DEEP GROOVE BALL BEARING 15X35X11 6202-2 (87100067433) 3689 RON
149 1 1 SPACER WASHER ET (81388668235) 3018 RON
150 1 3 WASHER 8X30X2,5 ET (81388668195) 105 RON
151 1 1 POLY-RIB PULLEY ET (81388668225) 15993 RON
154 1 1 POLY-RIB BELT ET (87233668278) 8275 RON
155 1 1 REINFORCING PLATE ET (81382668380) 5479 RON
156 1 1 CHIP CASE MOUNT ET (81382668178) 15993 RON
157 1 1 1388668390 - Indisponibil
158 1 1 ANGLE BRACKET ET (81382668401) 18341 RON
159 1 3 HEXAGON SOCKET HEAD CAP SCREW M 8X16 VER (86121000790) 446 RON
160 1 1 SPACER WASHER ET (81388668411) 488 RON
161 1 1 Thumb-nut (87005135529) 781 RON
163 1 1 CHIP CASE ET (81382668428) 108379 RON
164 1 1 TENSION SPRING ET (81388668438) Indisponibil Indisponibil
167 1 9 HEXAGON SOCKET HEAD CAP SCREW M 6X20 VER (86121000758) 446 RON
168 1 1 BLADE COLLAR ET (81380668269) 59166 RON
169 1 1 EXTENSION LEVER M10X30 ET (81388668292) 18341 RON
170 1 1 7002659900 - Indisponibil
171 1 1 CHIP CASE ET (81382668282) 64311 RON
172 1 1 WASHER 6 X 18 X 2 ET (81388668209) 446 RON
180 1 1 HOUSING LID ET (81388668454) 15993 RON
181 1 1 POLY-RIB BELT ET (87233668464) 24046 RON
182 1 1 V-BELT PULLEY ET (87240668470) 18341 RON
183 1 3 WASHER 6X14X1.2 ET (81388667067) 105 RON
185 1 1 WASHER ET (81388668217) 105 RON
186 1 1 MOTOR MOUNT ET (81382668495) 93951 RON
189 1 1 SEAT, INDICATOR ET (81382668517) 13756 RON
190 1 1 POINTER ET (81382668525) 4249 RON
191 1 5 THUMB SCREW M 8X25 ET (86150666501) 3689 RON
192 1 3 86172047473 - Indisponibil
193 1 1 CLAMPING SLEEVE 8X12 ET (86503668546) 21361 RON
194 1 1 SPINDLE NUT ET (81385668550) 2848 RON
195 1 1 TWIST LOCK D35 ET (81385668569) 105 RON
196 1 2 WASHER ET (81385668577) 8275 RON
197 1 1 WORK CLAMP ET (81385668593) 68673 RON
198 1 1 SPINDLE LOCK ET (81385668585) 39481 RON
203 1 1 V-BELT PULLEY WERKZEUGSPINDEL /ET (87240668615) 15993 RON
204 1 2 COLLAR BUSHING ET (81385659160) 4249 RON
205 1 1 DEEP GROOVE BALL BEARING (87100074090) 3689 RON
206 1 1 LID ET (81388668632) 4249 RON
207 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
208 1 1 GUIDE EXTRUSION ET (81383668707) 30980 RON
211 1 1 SHOCK ABSORBER ET (81388668675) 26730 RON
215 1 1 DEEP GROOVE BALL BEARING 12X28X8 6001-2Z (87100086764) 3689 RON
216 1 1 FENCE EXTRUSION END CAP ET (81381668661) 1564 RON
217 1 1 HEXAGON THIN NUT (86205084779) 446 RON
218 1 4 1385671969 - Indisponibil
219 1 4 ROLLER RD 40 ET (81381659204) 15993 RON
220 1 2 CAM BUSHING ET (81385659136) 5479 RON
226 1 1 HEAD PLATE LINKS /ET (81382668770) 3689 RON
227 1 3 WASHER 6,3X18X1,2 KONISCH /ET (81388666990) 105 RON
228 1 1 TABLE BOLT ET (81382668789) 3018 RON
229 1 1 AUXILIARY FENCE EXTRUSION LINKS /ET (81382668797) 13756 RON
230 1 1 END PLATE ET (81388668802) 3689 RON
231 1 1 TABLE EXTRUSION ET (81383668812) 270112 RON
232 1 1 REMOVABLE TABLE SECTION ET (81383668820) 26730 RON
234 1 1 BRACKET ET (81382668908) 3018 RON
236 1 1 GLIDE PROFILE ET (81383668839) 171574 RON
237 1 4 FELT GUIDE WEI? /ET (81388668861) 1564 RON
238 1 6 6172669008 - Indisponibil
239 1 2 ROLLER FRAME ET (81388668896) 5926 RON
240 1 12 BALL RD 12 ET (81388668888) 105 RON
242 1 23 WASHER 6X12X1,2 ET (81388666753) 105 RON
243 1 1 TABLE RECEPTION PROFILE ET (81380666720) 108379 RON
245 1 2 ANGLE BRACKET ET (81382668878) 10288 RON
246 1 1 BRACKET ET (81382668916) 5926 RON
250 1 1 SUCTION NOZZLE ET (81388668926) 11519 RON
251 1 1 CONNECTING ROD ET (81385668933) 5926 RON
252 1 4 RETAINING RING D10 ET (81385668941) 105 RON
253 1 2 BRACKET ET (81382668959) 105 RON
254 1 1 DUST EXTRACTION OUTLET ET (81388668969) 15993 RON
255 1 1 LEVER-DUSTEXTRACTION ET (81382668975) 10288 RON
256 1 1 LEVER ET (81382668983) 11519 RON
257 1 2 WASHER 18X8.2X0.7 ET (81388667660) 1564 RON
258 1 1 VARIO-COVER ET (81383668995) 2848 RON
259 1 1 HOLDER-KNIFE COVER ET (81380666657) 18341 RON
261 1 1 BRACKET ET (81382669319) 4249 RON
262 1 2 HEX. SOCKET SET SCREW, FLAT PT M 6X20 VE cod vechi 86161030528 (141124480) 446 RON
263 1 1 CUTTERBLOCK GUARD ET (81382669327) 64311 RON
265 1 1 ANGLE BRACKET ET (81382669335) 8275 RON
266 1 6 Hex head screw (86103001178) Indisponibil Indisponibil
267 1 1 ANGLE BRACKET ET (81382669343) 13756 RON
268 1 1 HEX. SOCKET SET SCREW, FLAT PT ET (86161667330) 1564 RON
269 1 5 Thumb-nut (87005135529) 781 RON
271 1 1 HOLDER-KNIFE COVER ET (81380666649) 39481 RON
272 1 1 SCALE RECHTS ET (81142669354) 7157 RON
273 1 1 GLIDE PROFILE ET (81383669363) 30980 RON
274 1 1 GLIDE RAIL ET (81382669378) 8275 RON
275 1 1 BRACKET ET (81380666746) 15993 RON
277 1 1 DEEP GROOVE BALL BEARING ET (87100667635) 10288 RON
278 1 1 1142669397 - Indisponibil
279 1 1 GLIDE PROFILE UNTEN /ET (81380666630) 24046 RON
280 1 2 1385669417 - Indisponibil
282 1 1 ANGLE GUIDE FENCE ET (81380666614) 26730 RON
283 1 1 RATCHET LOCK LEVER M8X40 ET (87006669420) 10288 RON
284 1 1 ANGLE GUIDE CARRIER ET (81382669432) 93951 RON
285 1 1 PLUG ET (81381669447) 1564 RON
286 1 1 STANCHION ET (81380666681) 41718 RON
287 1 1 KNURLED THUMB SCREW M6 ET (87009669404) 3689 RON
288 1 3 PRESSURE SPRING ET (87051669465) 3018 RON
289 1 2 LOCKING BOLT ET (81388669477) 4249 RON
290 1 2 STARLOCK WITHOUT CAP (87016056183) 446 RON
291 1 1 PROTECTION COVER ET (81388669485) 8275 RON
292 1 1 FENCE ET (81388669531) 21361 RON
293 1 2 WING NUT M 6 GEW.-EINSATZ VERZINKT (87005125213) 446 RON
294 1 1 FENCE EXTRUSION END CAP ET (81388669515) 3018 RON
295 1 1 GLIDE RAIL ET (81382669025) 7157 RON
296 1 1 CARRIER PLATE ET (81388669523) 34448 RON
297 1 2 THUMB SCREW M 8X40 VERZ. (86150669454) 4249 RON
298 1 1 AXLE ET (81385669492) 5926 RON
299 1 1 SEAT CARRIER ET (81382669505) 26730 RON
300 1 1 BRACKET ET (81388669388) 13756 RON
304 1 1 MITRE FENCE ASSEMBLY MULTI 180A /ET (81010678524) 197187 RON
305 1 1 SETTING KNOB ET (81388669540) 21361 RON
307 1 1 STARKNOB SCREW M 8X48 (DIN 933) VERZINKT (87001114667) 105 RON
308 1 1 GLIDE RAIL ET (81388669604) 11519 RON
309 1 1 GUIDE RAIL ET (81388669647) 30980 RON
310 1 2 BRACKET ET (81388669612) 3018 RON
311 1 1 CLAMP ET (81388669620) 34448 RON
312 1 1 MITRE GUIDE PROFILE ET (81383669630) 33553 RON
313 1 1 GLIDE RAIL ET (81388669680) 4249 RON
314 1 1 FASTENING ELEMENT ET (81380666673) 30980 RON
315 1 1 ANGLE BRACKET ET (81382669653) 19236 RON
316 1 1 1142669664 - Indisponibil
317 1 3 SERRATED LOCK WASHER (86304084039) 446 RON
318 1 3 6123662723 - Indisponibil
320 1 1 GUIDE SLEEVE ET (81388669671) 5926 RON
321 1 1 TENSION PLATE ET (81382669718) 3689 RON
322 1 1 BOLT ET (81385669700) 3018 RON
323 1 1 LEAF SPRING ET (87052669698) 8275 RON
324 1 1 STARKNOB SCREW M 8X48 (DIN 933) VERZINKT (87001114667) 105 RON
325 1 1 AXLE ET (81388669582) 4249 RON
326 1 1 GLIDE RAIL ET (81388669574) 18341 RON
327 1 1 ANGLE SCALE ET (81142669567) 955 RON
328 1 1 MITRE FENCE BODY ET (81380666665) 26730 RON
329 1 1 GLIDE RAIL ET (81388669590) 24046 RON
330 1 2 PRESSURE SPRING ET (87051669724) 3018 RON
340 1 1 COVER, HOUSING ET (81388669736) 5479 RON
341 1 1 CONTROL PANEL ET (81381669820) 127394 RON
342 1 1 1010669819 - Indisponibil
344 1 1 CABLE WITH PLUG ET (81010669762) 955 RON
345 1 1 CAPACITOR ET (88055669806) 46975 RON
346 1 1 EMERGENCY SWITCH ET (88116669782) 46975 RON
350 1 1 KNIFE ADJUSTMENT GAUGE MULTI 180A ET (81388677100) 39481 RON
351 1 1 COLLET SPANNER MULTI 180A ET (81388677110) 8275 RON

Conditii Generale
