Top » Piese de schimb » PIESE METABO » 0911003791 10

Morticing ATTACHMENT HC 260 - 0911003791 10 - -
[0911003791 10]
Morticing ATTACHMENT HC 260 - 0911003791 10 - -
Click pentru a mari
Imagini suplimentare
Morticing ATTACHMENT HC 260 - 0911003791 10 - -
Click pentru a mari

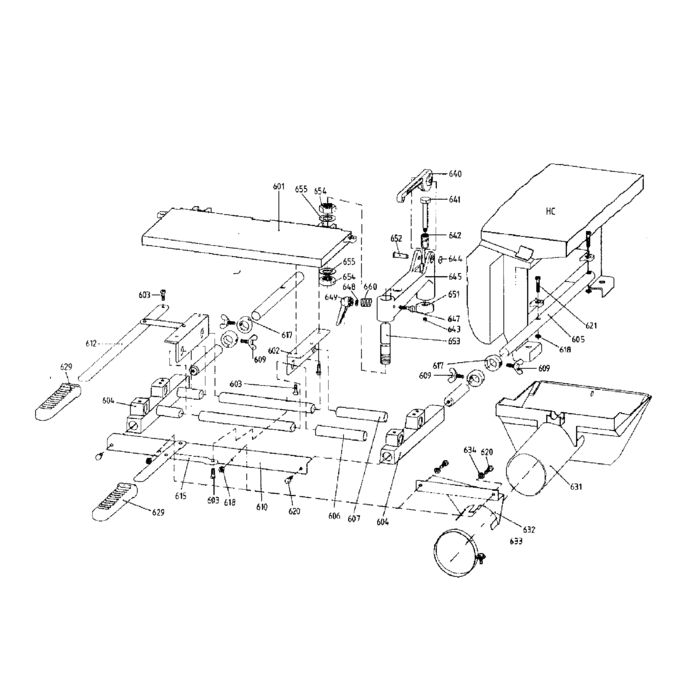

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
601 1 1 1390042325 - Indisponibil
602 1 1 GUIDE BRACKET LS 45X30X4X137 (81392018650) 7157 RON
603 1 1 HEXAGON SOCKET HEAD CAP SCREW M 6X16 VER (86122151520) 781 RON
604 1 1 CARRIAGE (81390007651) 19236 RON
605 1 1 GUIDE BAR RD 20X630 (81495018993) 13756 RON
606 1 1 GUIDE BAR RD 20X459 KURZ (81495019213) 7157 RON
607 1 1 GUIDE BAR RD 20X459 KURZ/ M. GEWINDELOCH (81495019108) 11519 RON
609 1 1 THUMB SCREW M 6X16 (86150657243) 781 RON
610 1 1 CROSS MEMBER LS 25X25X4X444 (81392018669) 10288 RON
612 1 1 ROD ASSEMBLY (82011010426) 15993 RON
615 1 1 ROD ASSEMBLY (82011010434) 19236 RON
617 1 1 SHAFT COLLA A 20,5 EXZENTRISCH (81495052970) 7157 RON
618 1 1 Hex nut (86200002219) 446 RON
620 1 1 Hex head screw (86103001127) 446 RON
621 1 1 Cap screw (86127059207) 446 RON
629 1 1 HANDLE, ELEKTRA BECKUM F?R FLACHSTAHL 2 (87006028670) 2459 RON
631 1 1 DUST EXTRACTION OUTLET (81391085141) 13756 RON
632 1 1 STAY BRACKET PLATE BL 2,5X180X163 (81392207011) 5479 RON
633 1 1 HOSE CLAMP RD 90-110 / 12 SKZ (87811036697) 1564 RON
634 1 1 Serrated lock washer (86304084047) 446 RON
640 1 1 CAM LEVER BLAU VERZINKT (81380400819) 5926 RON
641 1 1 TENSION BOLT RD 20X82,5 (81485414424) 5479 RON
642 1 1 PRESSURE SPRING (87051005770) Indisponibil Indisponibil
643 1 1 141180010 - Indisponibil
644 1 1 STARLOCK WITH CAP RD 8 (87016123379) 446 RON
645 1 1 CLAMPING ARM BLAU VERZINKT (81380400800) 19236 RON
647 1 1 CLAMPING ARM BOLT RD 12h11 M 6X42 (81485403732) 1340 RON
648 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
649 1 1 Clamping lever (87006072385) 2459 RON
651 1 1 CLAMPING PAD RD 35X14 (87057400867) 1340 RON
652 1 1 BOLT A (86632123360) 105 RON
653 1 1 0911009811 - Indisponibil
654 1 1 HEXAGON THIN NUT (86205052753) 781 RON
655 1 1 COARSE WASHER A 20 VERZ. (86300099643) 446 RON
660 1 1 PRESSURE SPRING 1,0X8,7X12 (87051685738) 781 RON
