Top » Piese de schimb » PIESE METABO » 0021032093 10

MIG/MAG/WIG 200 E - 0021032093 10 - EU 230V
[0021032093 10]
MIG/MAG/WIG 200 E - 0021032093 10 - EU 230V
Click pentru a mari
Imagini suplimentare
MIG/MAG/WIG 200 E - 0021032093 10 - EU 230V
Click pentru a mari
MIG/MAG/WIG 200 E - 0021032093 10 - EU 230V
Click pentru a mari
MIG/MAG/WIG 200 E - 0021032093 10 - EU 230V
Click pentru a mari

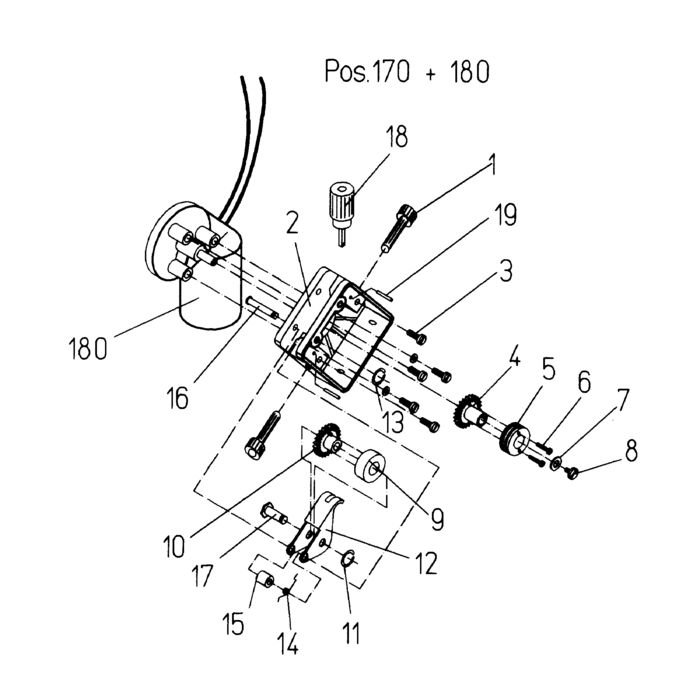

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BUSHING, WIRE GUIDE ET (81321177111) 3018 RON
2 1 1 CASING, WIRE FEED ET (81321177014) 21361 RON
3 1 1 RAISED CHEESE HEAD SCREW M 6X16 VERZ. (86123153659) 446 RON
4 1 1 GEARWHEEL ET (87247176998) 54357 RON
5 1 1 WIRE FEED ROLLER RD 30X12 V-NUT 0,6/0,8 (81325177043) 10288 RON
6 1 1 RAISED CHEESE HEAD SCREW M 3X16 VERZ. (86123094911) 446 RON
7 1 1 Washer (86305002460) 446 RON
8 1 1 Fillister head screw (86123002014) 446 RON
9 1 1 PRESSURE ROLLER ET (81325177027) 11519 RON
10 1 1 GEARWHEEL ET (87247177005) 33553 RON
11 1 1 RETAINING RING FOR SHAFTS 8X0,8 (86400047330) 446 RON
12 1 1 BRACKET, PRESSURE ROLLER ET (81322177093) 11519 RON
13 1 1 141180010 - Indisponibil
14 1 1 SPRING ET (87054177067) 5479 RON
15 1 1 SPACER SLEEVE ET (81325177078) 3018 RON
16 1 1 AXLE ET (81325177086) 3018 RON
17 1 1 AXLE ET (81325177051) 955 RON
18 1 1 PRESSURE ADJUSTER MIT SKALA ET (81327177105) 24046 RON
20 1 1 WHEEL, SOLID RUBBER RD 200/50 NABE 20X58 (87270159219) 18341 RON
40 1 1 STARLOCK WITH CAP RD 20 (87016026551) 105 RON
42 1 1 Serrated lock washer (86304084020) 446 RON
43 1 1 HEXAGON NUT (86200002197) 446 RON
44 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
45 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
47 1 1 Serrated lock washer (86304084047) 446 RON
48 1 1 Hex nut (86200002219) 446 RON
50 1 1 Lamellar plug black (81391059264) 446 RON
51 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X12 VE (86143109095) 446 RON
52 1 1 ROSETTE, PLASTIC BLACK 814 F?R M4 SCHWAR (86341062550) 446 RON
53 1 1 HEXAGON HEAD SCREW M 8X35 VERZ. (86103001208) 446 RON
54 1 1 Flange nut (6209110995) 446 RON
55 1 1 HEXAGON SOCKET HEAD CAP SCREW (86121121296) 446 RON
56 1 1 Washer (86300016357) 446 RON
57 1 1 HEXAGON NUT, PREV. TORQUE TYPE (86202002283) 446 RON
58 1 1 HEXAGON NUT (86200002200) 446 RON
62 1 1 SERRATED LOCK WASHER (86304084039) 446 RON
63 1 1 RAISED CHEESE HEAD SCREW (86123002049) 446 RON
65 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
66 1 1 Washer (86300016322) Indisponibil Indisponibil
67 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
68 1 1 Serrated lock washer (86304001745) 446 RON
69 1 1 86172007587 - Indisponibil
72 1 1 RAISED CHEESE HEAD SCREW M 3X8 VERZ. (86123004076) 669 RON
73 1 1 THREADED BOLT, PRE-ASSEMBLED M 8X165 (81002009460) 190 RON
74 1 1 HEXAGON HEAD SCREW M 8X80 VERZ. (86102001093) 446 RON
75 1 1 Washer (86305002486) 446 RON
76 1 1 1321006457 - Indisponibil
77 1 1 Hex head screw (86103001127) 446 RON
78 1 1 Washer (86305002087) 446 RON
79 1 1 RUBBER FOOT 20,6X20,6X7,6 SCHWARZ (87057128113) 781 RON
115 1 1 PLUG 16 A CEE (88215068120) 5479 RON
120 1 1 STRAIN RELIEF ZEV 9-12/PG 11 (88240015090) 1340 RON
160 1 1 EURO CONNECTOR SOCKET WZ2 (81327033430) 24046 RON
170 1 1 WIRE FEED DRIVE ROLLE 0,6-0,8 (81327159239) 9821 RON
180 1 1 WIRE FEED MOTOR 24 V (88011177124) 64311 RON
200 1 1 RECTIFIER STACK DB125/165-280A2 (88053071725) 93951 RON
210 1 1 ARBOR ASSEMBLY, SPOOL CARRIER (81321073880) 13756 RON
211 1 1 1327112950 - Indisponibil
212 1 1 1327112968 - Indisponibil
213 1 1 END CAP SPULENDORN (81327112976) 3018 RON
214 1 1 1327112984 - Indisponibil
215 1 1 1327112992 - Indisponibil
230 1 1 PANEL SOCKET ASSEMBLY 50 MM2 MIT ISOLIER (88215071317) 5926 RON
240 1 1 SOLENOID VALVE 230/1/50 P=6BAR 2X1/8"IG (88052008264) 19236 RON
241 1 1 PLASTIC HOSE RD 6X1 KLAR (87851078317) 781 RON
242 1 1 HOSE CLAMP RD 8-12 MIT 6KT-SCHRAUBE (87811027736) 73930 RON
243 1 1 7805009106 - Indisponibil
244 1 1 7850012088 - Indisponibil
250 1 1 8112139207 - Indisponibil
260 1 1 PILOT TRANSFORMER 2X 28V 250VA EI 120/41 (88056139290) 59166 RON
265 1 1 TRANSFORMER BRACKET, INSUL. 21X20X105 KL (81371085153) 781 RON
280 1 1 8053141375 - Indisponibil
285 1 1 1322411517 - Indisponibil
295 1 1 MOTOR CONTROL MODULE (88106180130) 220451 RON
300 1 1 1321155673 - Indisponibil
305 1 1 8260036441 - Indisponibil
306 1 1 FINE-WIRE FUSE 5X20 / 2 A (88260106814) 105 RON
330 1 1 FAN SEAT 102X235X210 (81321402093) 10288 RON
340 1 1 AXIAL FAN 1X230V 50-60HZ 0,1A 25W /ET (88041022796) 9821 RON
400 1 1 KNOTTED LINK CHAIN 680 MM VERZINKT (87236070870) 1340 RON
435 1 1 1321176450 - Indisponibil
480 1 1 BOLT-ON HINGE 6X50X50 (87015139832) 8275 RON
530 1 1 LATCH SCHMAL (87014140071) 1564 RON
565 1 1 1321414466 - Indisponibil
620 1 1 SETTING KNOB, POTENTIOMETER RD 31 MIT MA (88190181210) 8275 RON
7000 1 1 WIRE FEED ROLLER RD 30X12 V-NUT 1,0/1,2 (81325177035) 11519 RON
