MIG/MAG 500 E/W - 0021035009 10 - EU 230V
[0021035009 10]
MIG/MAG 500 E/W - 0021035009 10 - EU 230V
Click pentru a mari
Imagini suplimentare
MIG/MAG 500 E/W - 0021035009 10 - EU 230V
Click pentru a mari
MIG/MAG 500 E/W - 0021035009 10 - EU 230V
Click pentru a mari
MIG/MAG 500 E/W - 0021035009 10 - EU 230V
Click pentru a mari

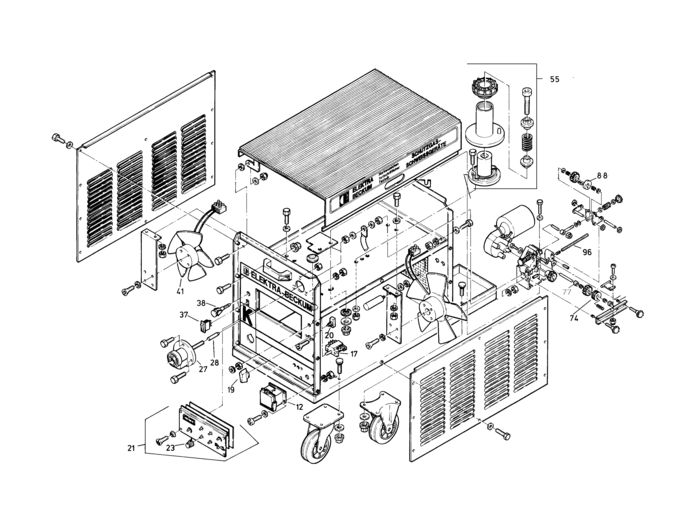

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
12 1 1 SOCKET CASING BUCHSENEINS. M.SCHR. (88215101330) 54357 RON
17 1 1 8112101358 - Indisponibil
19 1 1 SWITCH KNOB G 23 SCHWARZ (88190014909) 1340 RON
20 1 1 MOTOR PROTECTION RELAY 1,5 A ETA 106-P10 (88100004900) 13756 RON
21 1 1 STEPLESS CURRENT CONTROL UNIT 500 A (88106106127) 343820 RON
23 1 1 SETTING KNOB, POTENTIOMETER RD 20 MIT MA (88190112323) 3018 RON
27 1 1 EURO CONNECTOR SOCKET WZ2 (81327033430) 24046 RON
28 1 1 1327086010 - Indisponibil
37 1 1 Switch On/Of (88111059692) 3018 RON
38 1 1 CONTROL LIGHT 380 V GELB (88601121000) 4249 RON
41 1 1 AXIAL FAN 1X230V 50-60HZ 0,1A 25W /ET (88041022796) 9821 RON
55 1 1 ARBOR ASSEMBLY, SPOOL CARRIER (81321073880) 13756 RON
74 1 1 WIRE FEED ROLLER RD 31,5X10 GEH?RTET (81325000232) 8275 RON
77 1 1 SPACER ROLLER RDA 15,5 RDI 8,4X10 (81321004837) 781 RON
88 1 1 PRESSURE ROLLER RD 31,5X10 GEH?RTET (81325000240) 24046 RON
96 1 1 STEEL LINER 1,0-1,2 50 M ENDLOS (81327071129) 1564 RON

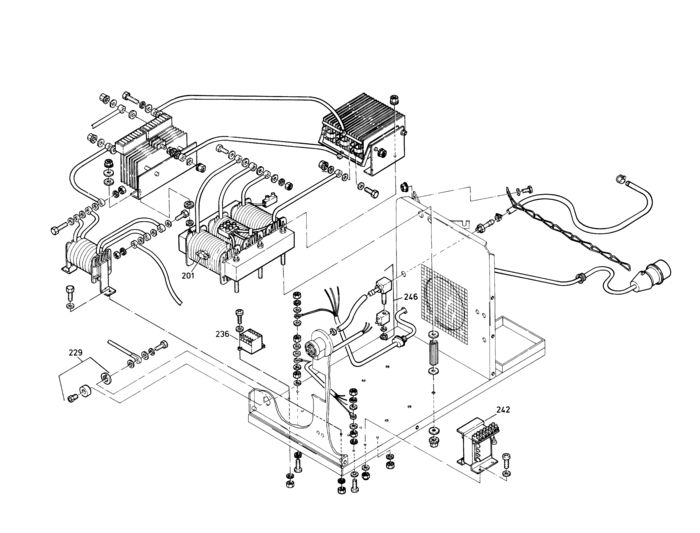

201 1 1 THERMAL OVERLOAD SWITCH R 20 130 GRAD OH (88102000219) 488 RON
229 1 1 PANEL SOCKET ASSEMBLY 70/95 MM2 MIT ISOL (88215080707) 955 RON
236 1 1 8104102884 - Indisponibil
242 1 1 PILOT TRANSFORMER 380 V ZAHNRADVORSCHUB (81002007394) 127394 RON
246 1 1 SOLENOID VALVE 230/1/50 P=6BAR 2X1/8"IG (88052008264) 19236 RON

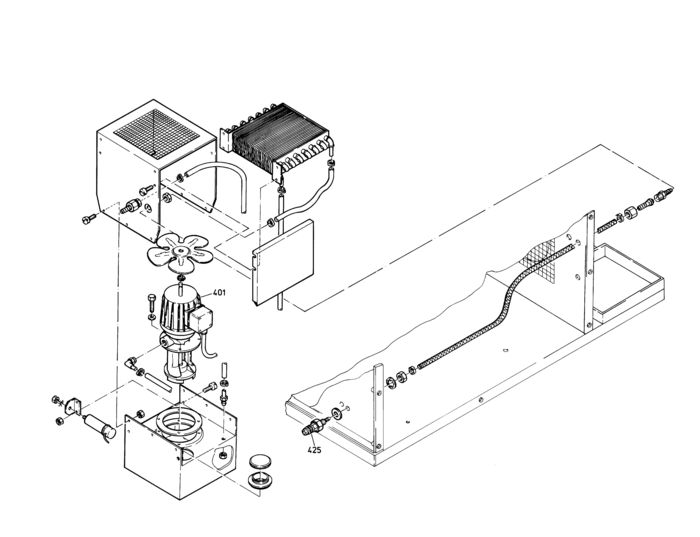

401 1 1 SUBMERSIBLE PUMP 220 V MIT MOTOR (81344111460) 589663 RON
425 1 1 QUICK COUPLING 2-TEILIG M.MUTTER U.SCHLA (87710004883) 10288 RON
