MIG/MAG 400 STE/W - 0021074020 10 - 3 / 400V/50Hz
[0021074020 10]
MIG/MAG 400 STE/W - 0021074020 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
MIG/MAG 400 STE/W - 0021074020 10 - 3 / 400V/50Hz
Click pentru a mari
MIG/MAG 400 STE/W - 0021074020 10 - 3 / 400V/50Hz
Click pentru a mari

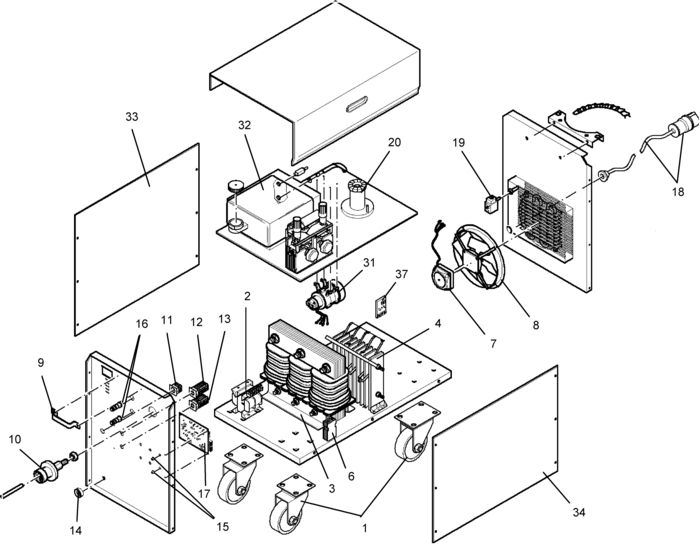

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 1388627006 - Indisponibil
2 1 1 PILOT TRANSFORMER 380 V (81002003364) 49212 RON
3 1 1 TRANSFORMER BRACKET, INSUL. 21X20X105 KL (81371085153) 781 RON
4 1 1 RECTIFIER STACK DB60/78-450/517F MIT 2 V (88053004386) 245282 RON
6 1 1 CONTACTOR 220 V A 16-30-10 (88104042873) 59166 RON
7 1 1 FAN MOTOR 10W / 230V / 50HZ (88041621738) 41718 RON
8 1 1 IMPELLER RD 230 MM F?RDERRICHTG. V (81327621714) 5479 RON
9 1 1 HANDLE "B" (81321070619) 3018 RON
10 1 1 1327133868 - Indisponibil
11 1 1 MAIN SWITCH 32 A (88112139215) 54357 RON
12 1 1 4-STEP SWITCH 3-POLIG (88115637860) 54357 RON
13 1 1 6-STEP SWITCH 2-POLIG (88115637879) 49212 RON
14 1 1 PANEL SOCKET ASSEMBLY 50 MM2 MIT ISOLIER (88215071317) 5926 RON
15 1 1 8213174640 - Indisponibil
16 1 1 QUICK COUPLING 2-TEILIG M.MUTTER U.SCHLA (87710004883) 10288 RON
17 1 1 CONTROL UNIT ASSEMBLY MIT STEUERPLATINE (81002193724) 137236 RON
19 1 1 SOLENOID VALVE 230/1/50 P=0,1+13BAR 2XT (88052193045) 15993 RON
20 1 1 ARBOR ASSEMBLY, SPOOL CARRIER (81321073880) 13756 RON
21 1 1 LEVER, PRESSURE ADJUSTER ET (81002638190) 19236 RON
22 1 1 PRESSURE ADJUSTER ASSEMBLY ET (81002624644) 13756 RON
25 1 1 LEVER, PRESSURE ADJUSTER ET (81002638181) 19236 RON
26 1 1 GEARWHEEL RD 25/16X18 Z=15 OHNE NUT (81321609844) 781 RON
27 1 1 WIRE FEED ROLLER, HARDENED RD31,5X10 NUT (81325631283) 7157 RON
28 1 1 1325631291 - Indisponibil
29 1 1 WIRE FEED MOTOR 24 V (88011177124) 64311 RON
30 1 1 GEARWHEEL RD 34/16X18 Z=15 MIT NUT (81325609610) 2459 RON
31 1 1 COOLANT PUMP 230V/ 50HZ (81344638132) 171574 RON
32 1 1 COOLANT RESERVOIR (81321627478) 49212 RON
37 1 1 8106623202 - Indisponibil
