Top » Piese de schimb » PIESE METABO » 0021074039 10

MIG/MAG 400 SEC/WX - 0021074039 10 - 3 / 400V/50Hz
[0021074039 10]
MIG/MAG 400 SEC/WX - 0021074039 10 - 3 / 400V/50Hz
Click pentru a mari
Imagini suplimentare
MIG/MAG 400 SEC/WX - 0021074039 10 - 3 / 400V/50Hz
Click pentru a mari
MIG/MAG 400 SEC/WX - 0021074039 10 - 3 / 400V/50Hz
Click pentru a mari
MIG/MAG 400 SEC/WX - 0021074039 10 - 3 / 400V/50Hz
Click pentru a mari

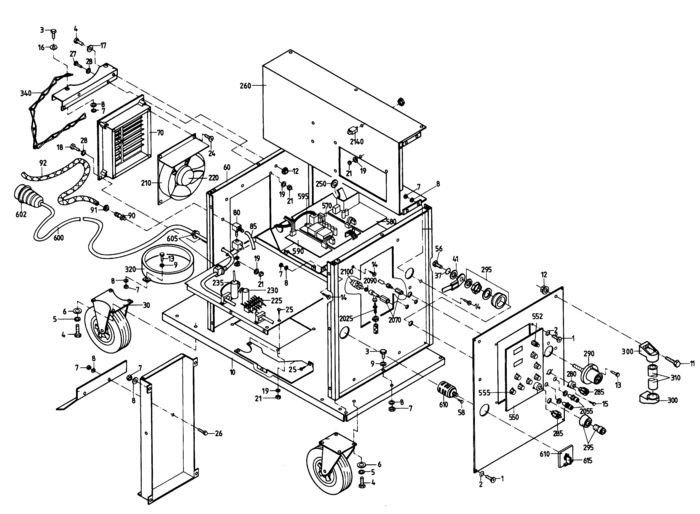

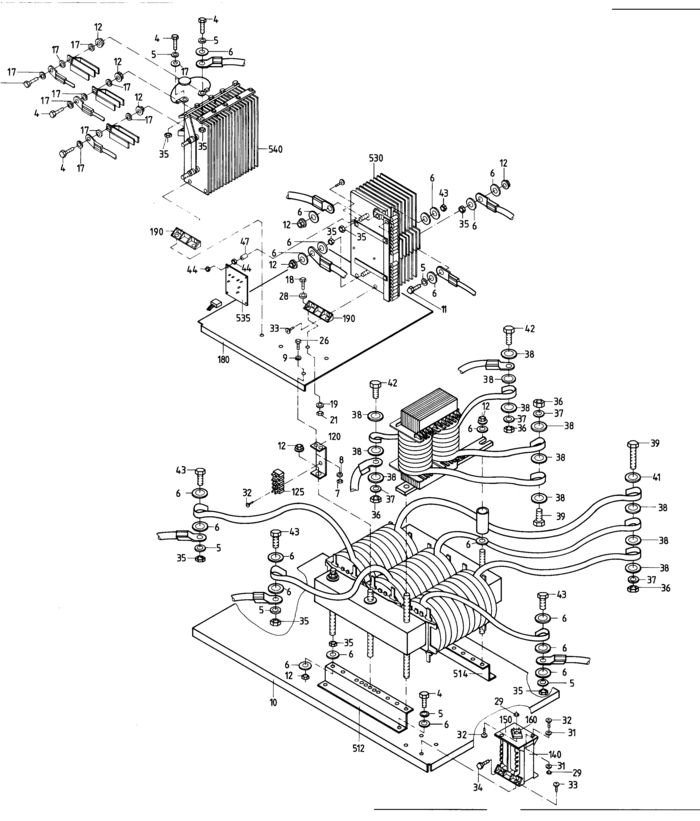

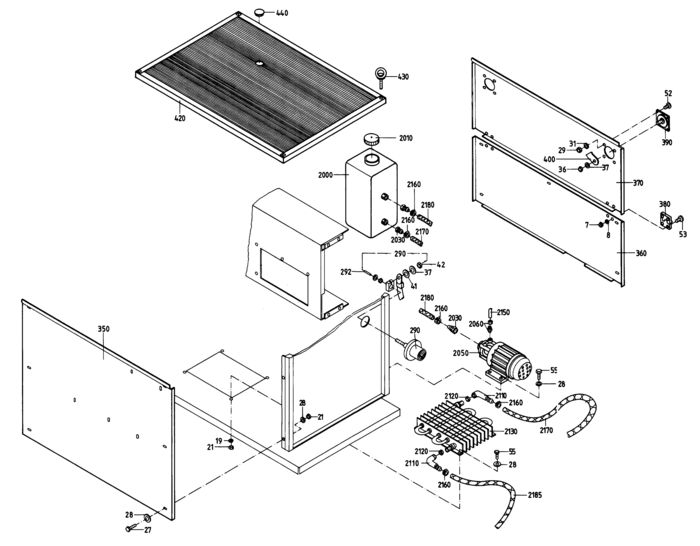

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X12 VE (86143109095) 446 RON
2 1 1 ROSETTE, PLASTIC BLACK 814 F?R M4 SCHWAR (86341062550) 446 RON
3 1 1 Hex head screw (86103015675) 446 RON
4 1 1 Hex head screw (86103001178) Indisponibil Indisponibil
5 1 1 Serrated lock washer (86304001745) 446 RON
6 1 1 Washer (86305002486) 446 RON
7 1 1 Hex nut (86200002219) 446 RON
8 1 1 Serrated lock washer (86304084047) 446 RON
9 1 1 Washer Washer cod vechi 86300016365 (141151940) 446 RON
11 1 1 HEXAGON HEAD SCREW M 8X20 VERZ. (86103001186) 446 RON
12 1 1 Flange nut (6209110995) 446 RON
13 1 1 Hex head screw (86103001135) 446 RON
14 1 1 CROSS RECESSED FLAT HEAD SCREW (86131059530) 446 RON
15 1 1 6124124431 - Indisponibil
16 1 1 Washer (86305002087) 446 RON
17 1 1 Washer (86300016322) Indisponibil Indisponibil
18 1 1 HEXAGON HEAD SCREW M 5X12 VERZ. (86103001100) 446 RON
19 1 1 SERRATED LOCK WASHER (86304084039) 446 RON
21 1 1 HEXAGON NUT (86200002200) 446 RON
24 1 1 86189011421 - Indisponibil
25 1 1 Fillister head screw w. cross head (86172001791) Indisponibil Indisponibil
26 1 1 Hex head screw (86103001127) 446 RON
27 1 1 HEXAGON HEAD SCREW M 5X16 VERZ. (86103016850) 446 RON
28 1 1 Washer (86300016357) 446 RON
29 1 1 HEXAGON NUT (86200002197) 446 RON
30 1 1 RIGID PLATE CASTER RD 200/50 (87271080292) 15993 RON
31 1 1 Serrated lock washer (86304084020) 446 RON
32 1 1 Fillister head screw (86123002022) 446 RON
33 1 1 Fillister head screw (86172100099) 446 RON
34 1 1 HEXAGON HEAD SCREW M 6X60 VERZ. (86102032436) 446 RON
35 1 1 HEXAGON NUT (86200002235) Indisponibil Indisponibil
36 1 1 HEXAGON NUT M 10 VERZ. (86200002251) 446 RON
37 1 1 SERRATED LOCK WASHER A 10,5 VERZ. (86304084055) 446 RON
38 1 1 WASHER A 10,5 (86305002095) 781 RON
39 1 1 6103001380 - Indisponibil
41 1 1 MEDIUM WASHER A 10,5 (86300034215) 446 RON
42 1 1 HEXAGON HEAD SCREW M 10X35 VERZ. (86103001240) 446 RON
43 1 1 HEXAGON HEAD SCREW M 8X25 VERZ. (86103001194) 446 RON
44 1 1 HEXAGON NUT M 3 VERZ. (86200109773) 446 RON
47 1 1 6442174383 - Indisponibil
52 1 1 CROSS RECESSED FLAT HEAD SCREW M 4X10 VE (86131001540) 446 RON
53 1 1 CROSS RECESSED FLAT HEAD SCREW (86131059530) 446 RON
54 1 1 HEXAGON HEAD SCREW M 8X30 (86103086548) 446 RON
56 1 1 HEXAGON HEAD SCREW M 10X16 (86103001321) 105 RON
58 1 1 RAISED CHEESE HEAD SCREW M 4X16 VERZ. (86123025200) 446 RON
70 1 1 LOUVERED PANEL GEBOHRT (81321408415) 10288 RON
80 1 1 SOLENOID VALVE 230/1/50 P=6BAR 2X1/8"IG (88052008264) 19236 RON
85 1 1 PLASTIC HOSE RD 6X1 KLAR (87851078317) 781 RON
90 1 1 7805009106 - Indisponibil
91 1 1 HOSE CLAMP RD 8-12 MIT 6KT-SCHRAUBE (87811027736) 73930 RON
92 1 1 7850012088 - Indisponibil
125 1 1 TERMINAL BLOCK 16 MM2 NR.135 (88216022190) 781 RON
140 1 1 PILOT TRANSFORMER 2X 28V 250VA EI 120/41 (88056139290) 59166 RON
160 1 1 8053141375 - Indisponibil
190 1 1 TRANSFORMER BRACKET, INSUL. 21X20X105 KL (81371085153) 781 RON
210 1 1 FAN SEAT 102X235X210 (81321402093) 10288 RON
220 1 1 AXIAL FAN (88041131692) 14839 RON
225 1 1 TERMINAL BLOCK 6 MM2 VDE 5VD4 304 /NR.16 (88216103921) 781 RON
230 1 1 CAPACITOR 2uF/400 V (88050138039) 10288 RON
235 1 1 CAPACITOR 6uF/320V 25X80 BOLZEN M 8 KABE (88050011772) 488 RON
250 1 1 8241070868 - Indisponibil
280 1 1 CHASSIS SHELL WITH SOCKETS 4-POLIG (3+PE (88215141358) 11519 RON
285 1 1 CAP T 6483-000 (88243143897) 15993 RON
290 1 1 1327133868 - Indisponibil
292 1 1 CAPILLARY TUBE 5X124 2,0 (81327175129) 3018 RON
295 1 1 PANEL SOCKET ASSEMBLY 50 MM2 MIT ISOLIER (88215071317) 5926 RON
300 1 1 1321115663 - Indisponibil
310 1 1 1328139894 - Indisponibil
340 1 1 KNOTTED LINK CHAIN 680 MM VERZINKT (87236070870) 1340 RON
380 1 1 BOLT-ON HINGE 6X50X50 (87015139832) 8275 RON
390 1 1 7014140063 - Indisponibil
400 1 1 LATCH SCHMAL (87014140071) 1564 RON
430 1 1 6151129682 - Indisponibil
440 1 1 PLUG RD 34X16,5 (81321141362) 446 RON
530 1 1 8106139173 - Indisponibil
535 1 1 PCB FOR POWER ACTUATOR 300-500 EC/SEC (88106143480) 24046 RON
540 1 1 RECTIFIER STACK DB60/78-450/517F (88053139273) 245282 RON
552 1 1 8190175139 - Indisponibil
555 1 1 SETTING KNOB, POTENTIOMETER RD 20 MIT MA (88190112323) 3018 RON
570 1 1 8106139505 - Indisponibil
580 1 1 MOTOR CONTROL MODULE 300-500 SEC (88106139513) 220451 RON
590 1 1 8106139521 - Indisponibil
595 1 1 8260168020 - Indisponibil
602 1 1 8215014410 - Indisponibil
605 1 1 STRAIN RELIEF ZEV 12-14 / PG 13.5 (88240015103) 3018 RON
610 1 1 MAIN SWITCH 32 A (88112139215) 54357 RON
615 1 1 SETTING KNOB, MAIN SWITCH ROT/GRO? /ET (88190175147) 8275 RON
2000 1 1 COOLANT RESERVOIR 150X150X300 (81321406803) 19236 RON
2010 1 1 CAP GEBOHRT (81321146399) 5479 RON
2025 1 1 7805009440 - Indisponibil
2030 1 1 7805009483 - Indisponibil
2050 1 1 COOLANT PUMP BPP 50 (81344701594) 197187 RON
2055 1 1 QUICK COUPLING (87710151002) 10288 RON
2070 1 1 COUPLING G 1/4"X M 12X1 (81325407855) 955 RON
2090 1 1 7809009275 - Indisponibil
2100 1 1 DIAPHRAGM PRESSURE SWITCH 0,1-1 BAR 1/8" (88101139817) 2848 RON
2110 1 1 HOSE STEM, ELBOW-TYPE R 1/4" AG X10 WES (87805117618) 2124 RON
2120 1 1 7809009283 - Indisponibil
2130 1 1 RADIATOR (81327405680) 14839 RON
2140 1 1 MOTOR PROTECTION RELAY 1,5 A ETA 106-P10 (88100004900) 13756 RON
2160 1 1 7811017820 - Indisponibil
7000 1 1 THERMAL OVERLOAD SWITCH R 20 118 GRAD OH (88100093260) 488 RON
